TOMZN TOB7Z-63 20A 2P 1000V DC Solar MCB

Product Identification

Identification is based on the supplied product image and TOMZN's official product listing. Electrical installation and breaker selection must be performed by a qualified professional.

Product Title

TOMZN TOB7Z-63 20A 2P 1000V DC Solar MCB

Short Description

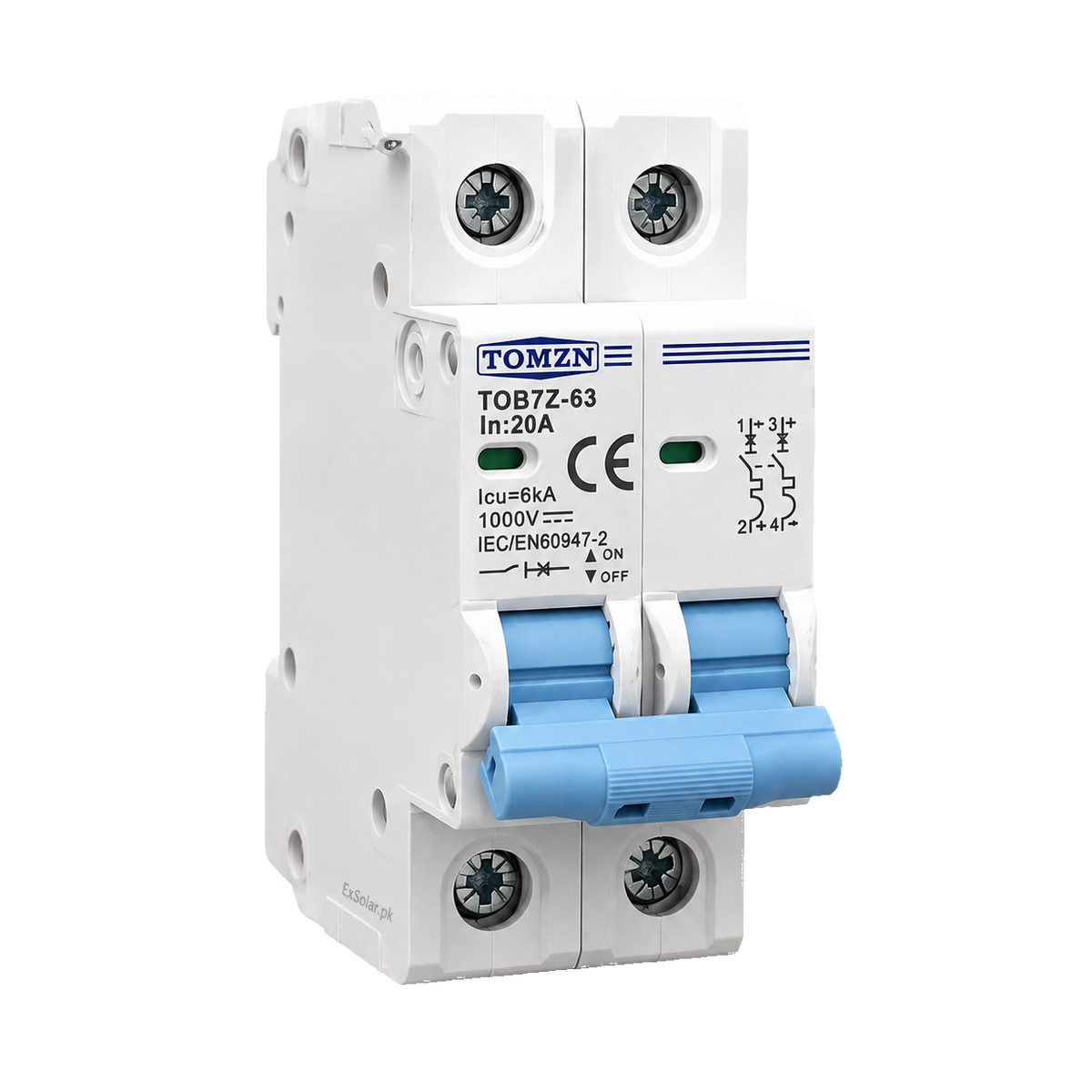

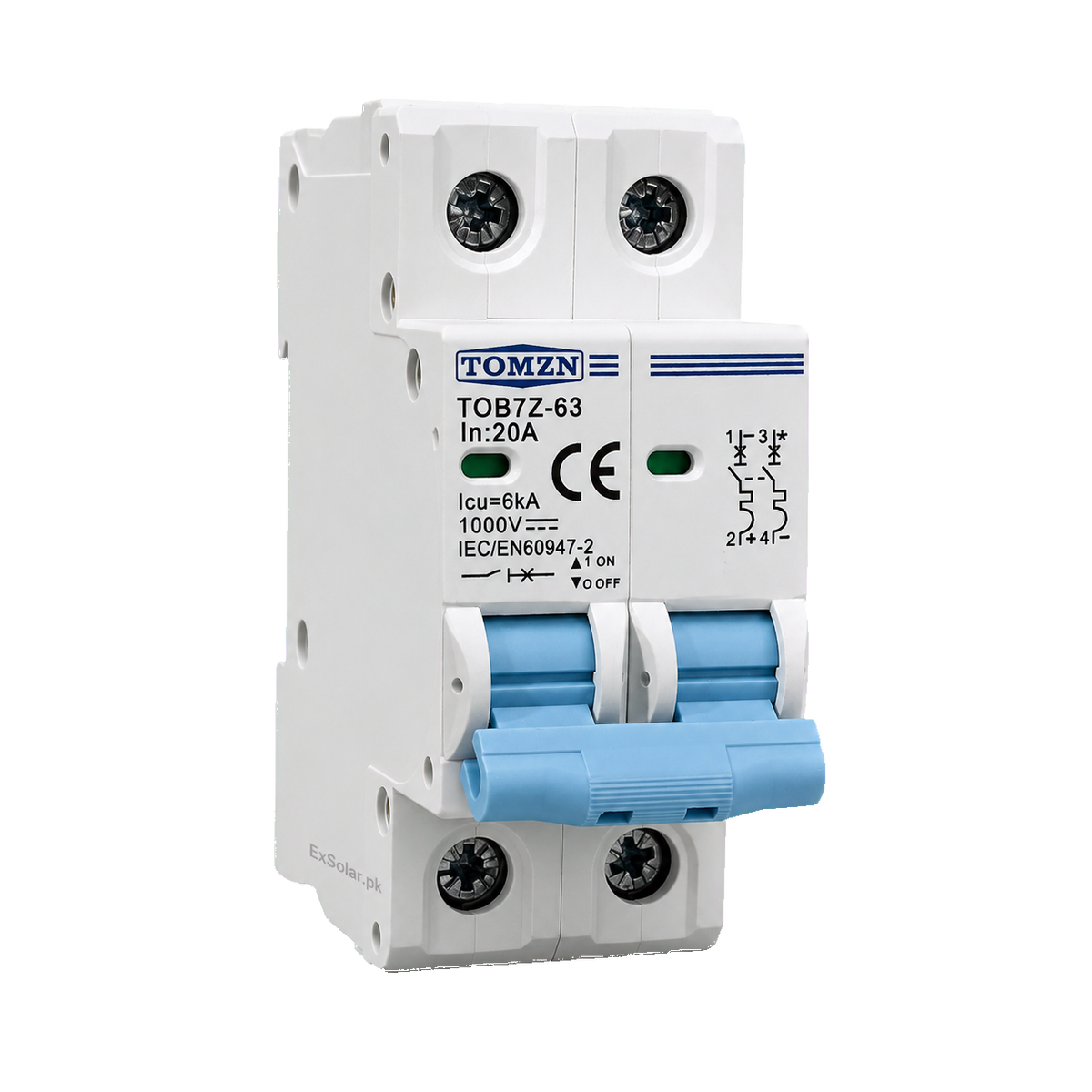

The TOMZN TOB7Z-63 is a 20A, 2-pole DC miniature circuit breaker designed for solar PV and other compatible DC circuits. The supplied unit is marked for 1000V DC, 6kA ultimate short-circuit breaking capacity, and IEC/EN 60947-2, with linked double-pole operation and clear polarity markings.

Long Description

Protect and isolate compatible DC circuits with the TOMZN TOB7Z-63 20A 2P DC MCB. Its linked two-pole handle disconnects both poles together, while the printed polarity diagram supports correct DC wiring. The compact modular body, screw terminals and visual status windows make it suitable for professional solar distribution and control panels.

The photographed 20A variant is marked for a maximum rated voltage of 1000V DC and an ultimate short-circuit breaking capacity of 6kA. It is intended for correctly engineered PV and DC installations in which the system voltage, prospective fault current, cable size, polarity and coordination have been verified by a qualified installer.

Key Features

• 20A rated-current variant

• Two-pole linked switching and isolation

• 1000V DC marking on the supplied unit

• 6kA ultimate short-circuit breaking capacity marking

• Designed for solar PV and compatible DC circuits

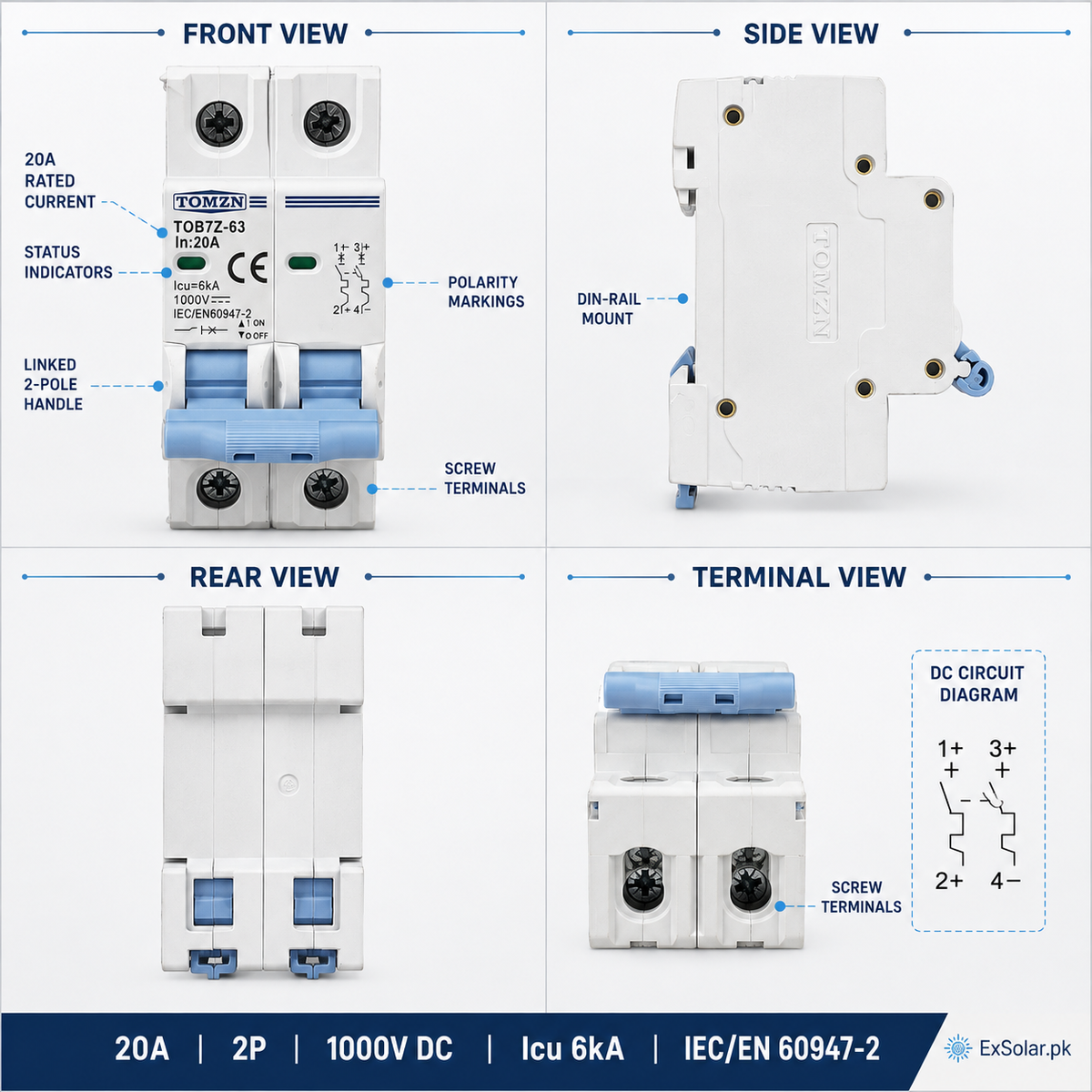

• Clear positive and negative polarity diagram

• Two visual status indicator windows

• Four screw-type connection terminals

• Compact modular panel-breaker design

• ON/OFF position markings on the front

• IEC/EN 60947-2 standard marking

• CE marking visible on the supplied product

Technical Specifications

Applications

• Solar PV array and string protection panels

• DC combiner and distribution boxes

• Compatible inverter DC input circuits

• General low-voltage DC distribution

• Battery and energy-storage DC circuits only where the breaker rating, polarity, selectivity and fault-current capability have been professionally verified

• Telecommunications and control DC circuits within the published electrical ratings

Box Contents

Official package contents: Not Verified.

Protection Features

• Overcurrent / overload circuit interruption as a DC MCB function; exact trip curve is Not Verified

• Short-circuit interruption with 6kA Icu marking

• Simultaneous two-pole disconnection through the linked handle

• Polarity guidance printed on the device for correct DC installation

• Manual ON/OFF circuit isolation

This product is not a surge-protection device, residual-current device or arc-fault device unless separately documented; no such functions were verified for this model.

Certifications and Standards

Warranty

Official manufacturer warranty for this exact product: Not Verified.
