CHINT NB1-63DC 32A 2P 500V DC Circuit Breaker

Product Identification

Product Title

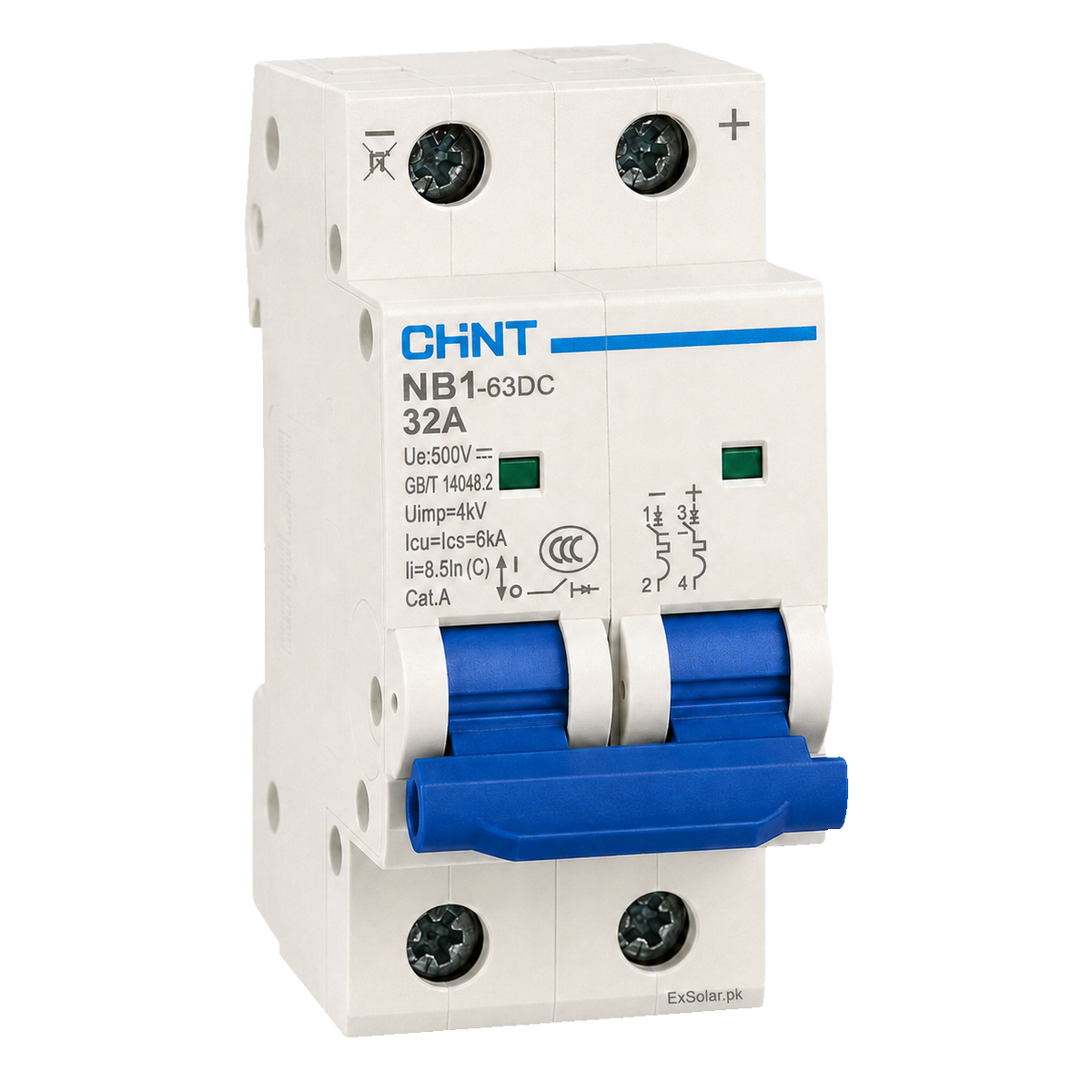

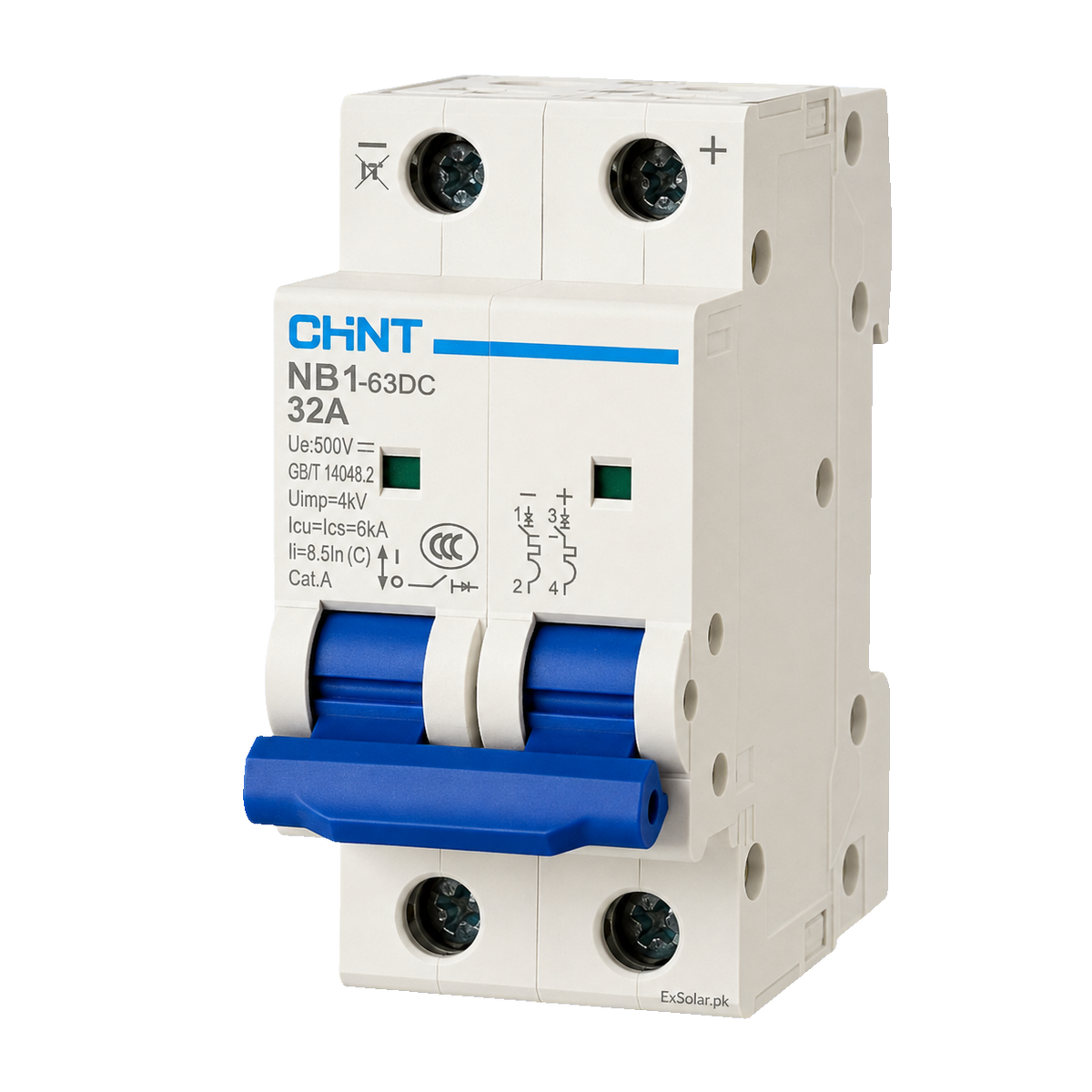

CHINT NB1-63DC 32A 2P 500V DC Circuit Breaker

Short Description

The CHINT NB1-63DC 32A two-pole DC circuit breaker provides overload and short-circuit protection for compatible DC systems. The 2P version is officially rated at DC 500V and features Type-C tripping, 6kA breaking capacity, 4kV impulse withstand voltage, IP20 protection and DIN-rail installation.

Long Description

Designed for modern DC power distribution, the CHINT NB1-63DC combines reliable thermomagnetic protection with a compact modular enclosure. This listing is for the 32A, two-pole version rated at DC 500V. It is suitable for properly engineered photovoltaic arrays, battery energy-storage systems, telecommunications power supplies, EV-charging equipment and other compatible DC circuits.

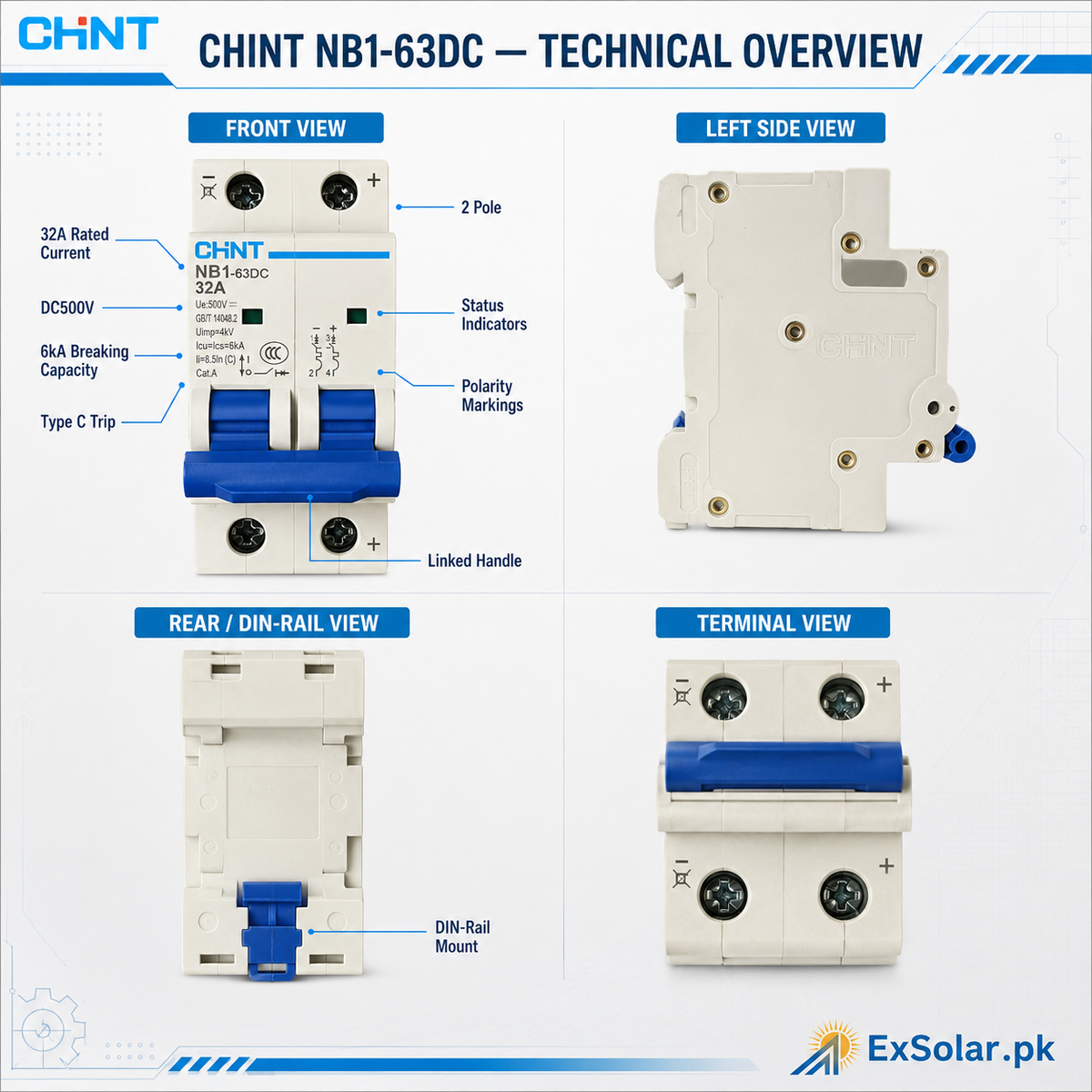

The breaker delivers overload and short-circuit protection with Type-C instantaneous tripping at 7–10 times rated current and a 6kA rated short-circuit breaking capacity. Its dual-connection arrangement supports lead wire or compatible busbar connection, while the contact-position indicators and mechanically linked handle support clear operation and isolation. Installation must follow the official polarity and wiring diagrams and should be completed by a qualified electrical professional.

Key Features

• Genuine CHINT NB1-63DC series DC circuit breaker

• 32A rated-current variant officially supported

• Two-pole configuration rated at DC 500V

• Type-C tripping characteristic, 7–10 × In

• 6kA rated short-circuit breaking capacity

• 4kV rated impulse withstand voltage

• Overload and short-circuit protection

• Lead-wire and compatible busbar dual connection

• Contact-position indication

• DIN-rail mounting with plug-in structure

• IP20 enclosure protection rating

• IEC/EN 60947-2 compliance with CE, CB, TÜV, CCC and RoHS listings

Technical Specifications

Applications

• Residential and commercial photovoltaic arrays

• Solar DC combiner and distribution boxes

• Battery energy-storage systems

• Compatible DC-side inverter circuits

• EV-charging equipment DC circuits

• Telecommunications DC power networks

• Industrial DC distribution systems

• Manual switching and isolation during authorized maintenance

The system voltage, operating current, prospective fault current, conductor size, polarity and installation conditions must be verified before use.

Box Contents

• CHINT NB1-63DC 32A 2P DC circuit breaker: expected primary item

• Retail packaging: Not Verified

• Printed installation instructions: Not Verified

• Mounting accessories: Not Verified

• Busbar or wiring accessories: Not Verified

Protection Features

• Overload-current protection

• Short-circuit-current protection

• Type-C thermomagnetic tripping

• 6kA fault-current interruption capacity

• Linked two-pole switching

• Manual circuit isolation

• Contact-position indication

• Polarity-marked DC wiring arrangement

• Residual-current protection: not provided; this product is not an RCCB or RCBO

• Surge protection: not provided; use a separately rated DC SPD where required

Certifications

Warranty

Official warranty period and product-specific warranty conditions: Not Verified.
