CNC YCB8-63PV DC MTS 2P+2P 63A Manual Changeover

Product Identification

Important: CNC's official YCB8-63PV data verifies the electrical specifications of each 2-pole breaker component. A separate official CNC page or complete datasheet for this exact YC88-00M 2P+2P assembled MTS was not located. Assembly-level claims not confirmed by CNC are marked Not Verified.

Product Title

CNC YCB8-63PV DC MTS 2P+2P 63A Manual Changeover

Short Description

The CNC DC MTS combines two 63A YCB8-63PV 2-pole photovoltaic DC miniature circuit breakers with a central manual interlock for selecting between two compatible DC sources. Each official 2P YCB8-63PV breaker is rated for DC500V when correctly wired in series and provides overload, short-circuit and isolation protection.

Long Description

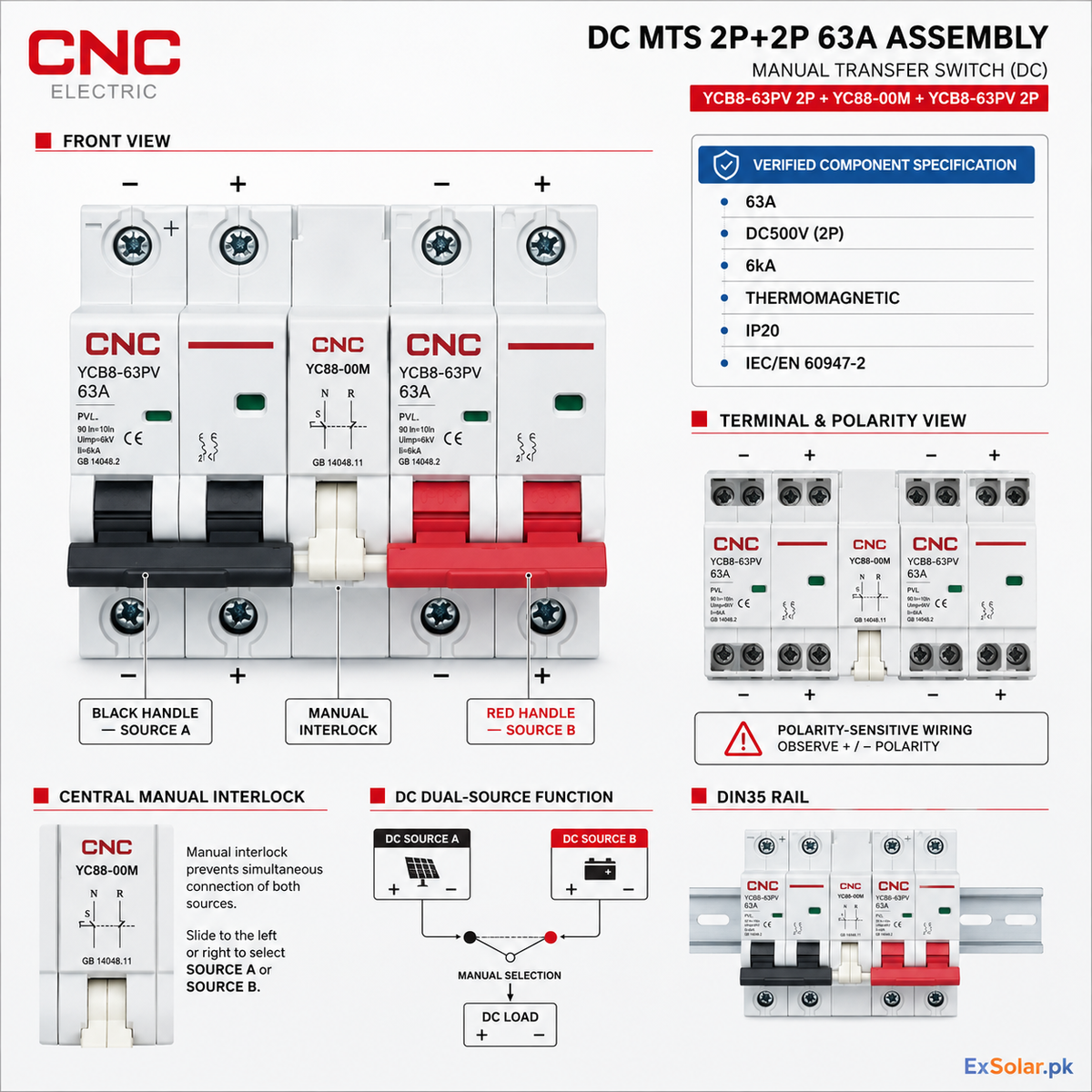

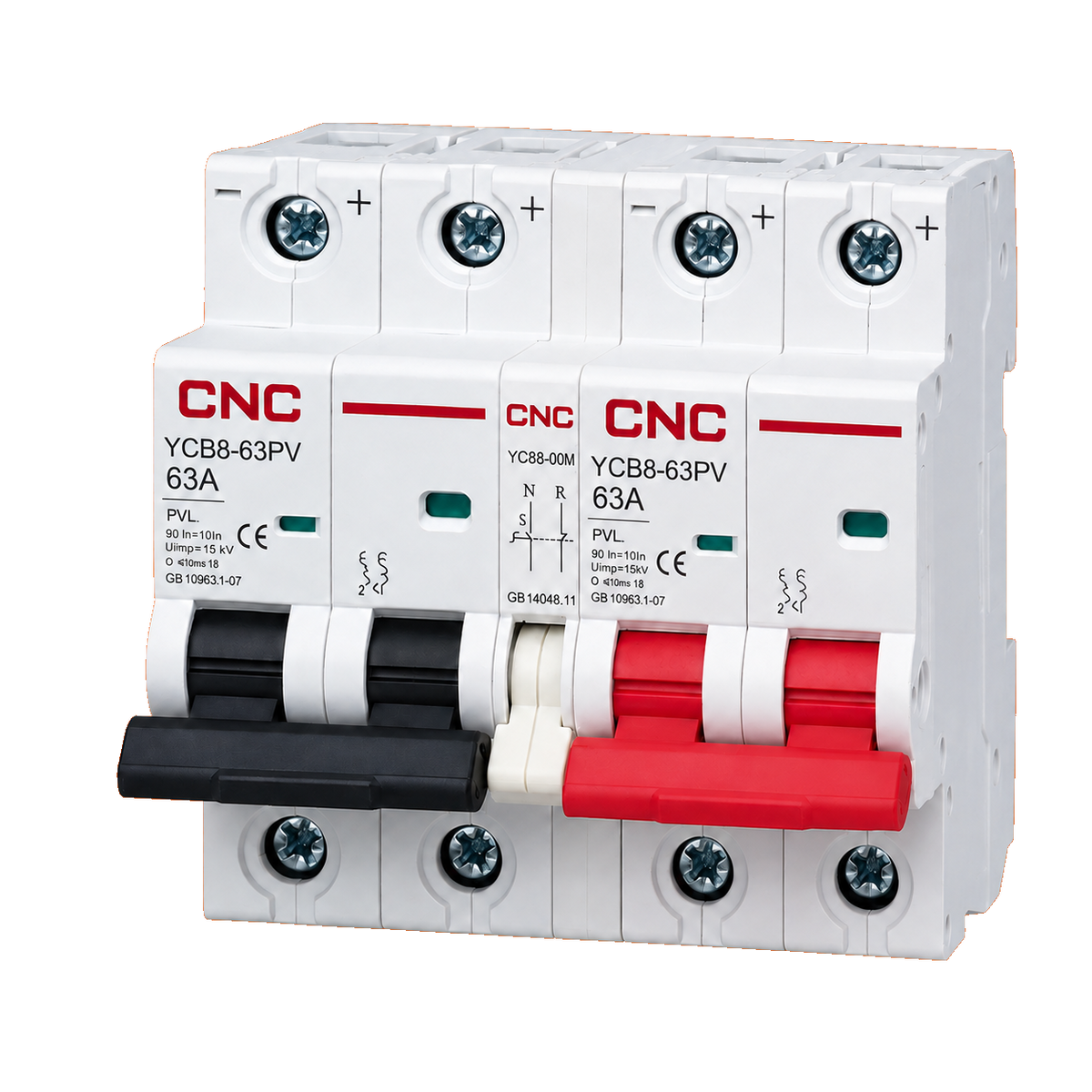

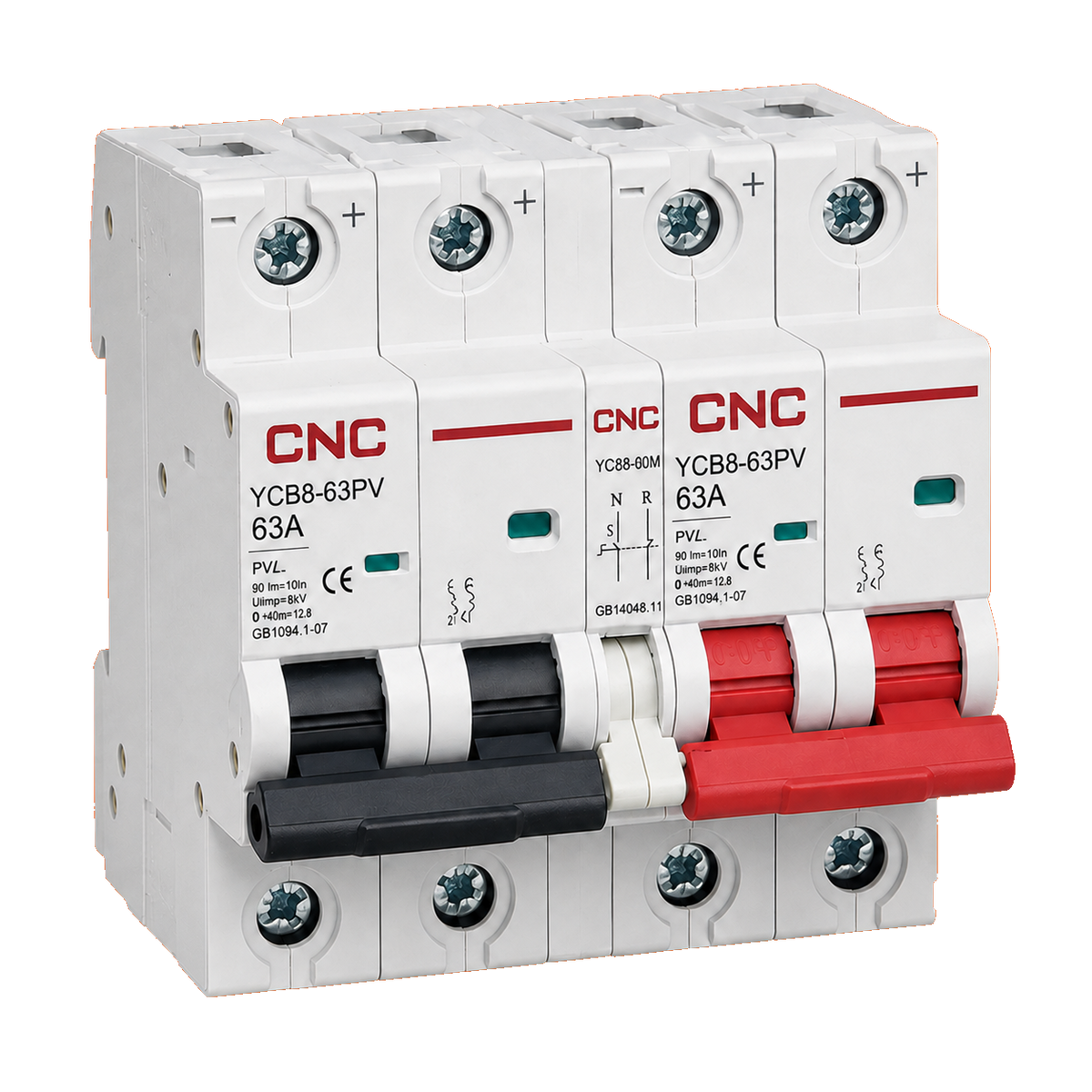

Designed for controlled manual selection between two compatible DC feeds, this CNC 2P+2P changeover assembly uses two polarity-marked YCB8-63PV breakers and a mechanical interlock to prevent both source handles from being closed together during normal operation. The black and red linked handles provide clear source differentiation, while the modular DIN-rail format is suitable for properly engineered photovoltaic and other DC distribution systems.

CNC officially specifies the YCB8-63PV series for photovoltaic and other DC applications, with thermomagnetic operation, a breaking capacity of 6kA and protection against overload and short circuit. For the 2-pole configuration, the rated working voltage is DC500V when the poles are connected in the approved series arrangement. Installation must follow the official polarity and wiring diagram.

This is a manual changeover device, not an ATS. It must not be used to parallel two sources, and it must not be switched under load unless the complete assembly and installation have been approved for that duty by a qualified electrical engineer.

Key Features

• Two-source manual DC changeover configuration with 2P + 2P breakers

• 63A rating marked on both CNC YCB8-63PV breaker sections

• DC500V rated working voltage for each official 2-pole YCB8-63PV breaker when wired correctly

• Central mechanical interlock assists in preventing simultaneous source closure

• 6kA ultimate breaking capacity for the official YCB8-63PV breaker component

• Thermomagnetic trip mechanism

• Overload, short-circuit and isolation protection through the YCB8-63PV breakers

• Polarity-marked DC terminals for correct series wiring

• Standard DIN35 rail mounting for the breaker component

• IP20 protection degree for the YCB8-63PV component

• 2.5–25mm² terminal wiring capacity and 3.5N·m terminal torque for YCB8-63PV

• Suitable for properly engineered photovoltaic and other compatible DC distribution systems

Technical Specifications

Applications

• Manual selection between two compatible photovoltaic DC sources

• Manual DC source changeover in engineered solar distribution boards

• DC backup-source selection where voltage, current, polarity and earthing are compatible

• Industrial, communication and civil DC systems within verified component ratings

• DC isolation and circuit protection as part of a correctly designed system

Not for AC circuits. Suitability for battery systems, switching under load and any particular earthing arrangement must be confirmed by the system designer.

Box Contents

• 1 × assembled CNC 2P+2P manual DC changeover device — visible product configuration

• Instruction sheet — Not Verified

• DIN rail or enclosure — Not Verified / not shown

• Mounting accessories — Not Verified

Protection Features

• Overload protection through YCB8-63PV breakers

• Short-circuit protection through YCB8-63PV breakers

• DC circuit isolation through YCB8-63PV breakers

• Mechanical source interlocking

• Polarity-marked terminals

Not included or not verified: surge protection (SPD), residual-current protection (RCD/RCBO), arc-fault protection, remote trip, automatic transfer control or source synchronization.

Certifications and Standards

Warranty

Not Verified. Confirm the applicable warranty period and terms with ExSolar.pk or the authorized CNC supplier for this exact assembled SKU.
