Product Identification

Product Title

TOMZN TOB7Z-63 63A 2-Pole 1000V DC Solar Circuit Breaker

Short Description

The TOMZN TOB7Z-63 is a 63A, two-pole miniature circuit breaker designed for DC circuits up to 1000V. TOMZN lists the series for photovoltaic systems, while the supplied product label identifies a 6kA ultimate breaking capacity and IEC/EN 60947-2 marking.

Long Description

The TOMZN TOB7Z-63 provides compact two-pole circuit protection for compatible high-voltage DC installations. TOMZN’s official product page identifies this model as a 2P, 1000V DC solar miniature circuit breaker and lists 63A among the available current ratings.

The regional TOMZN product page states that the breaker is intended for overload and short-circuit protection and may also be used for infrequent operation of the line. Listed application areas include photovoltaic systems and communications DC circuits.

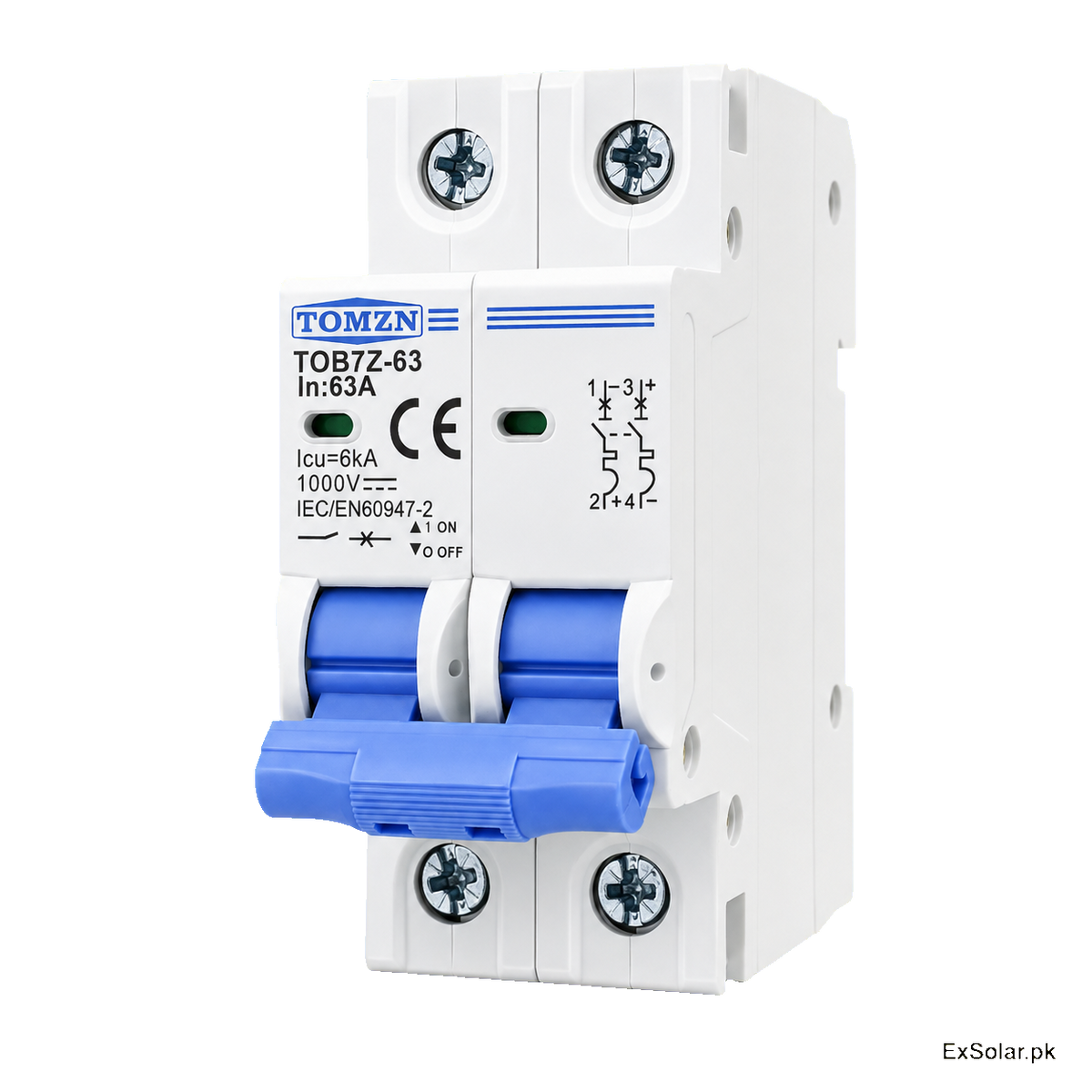

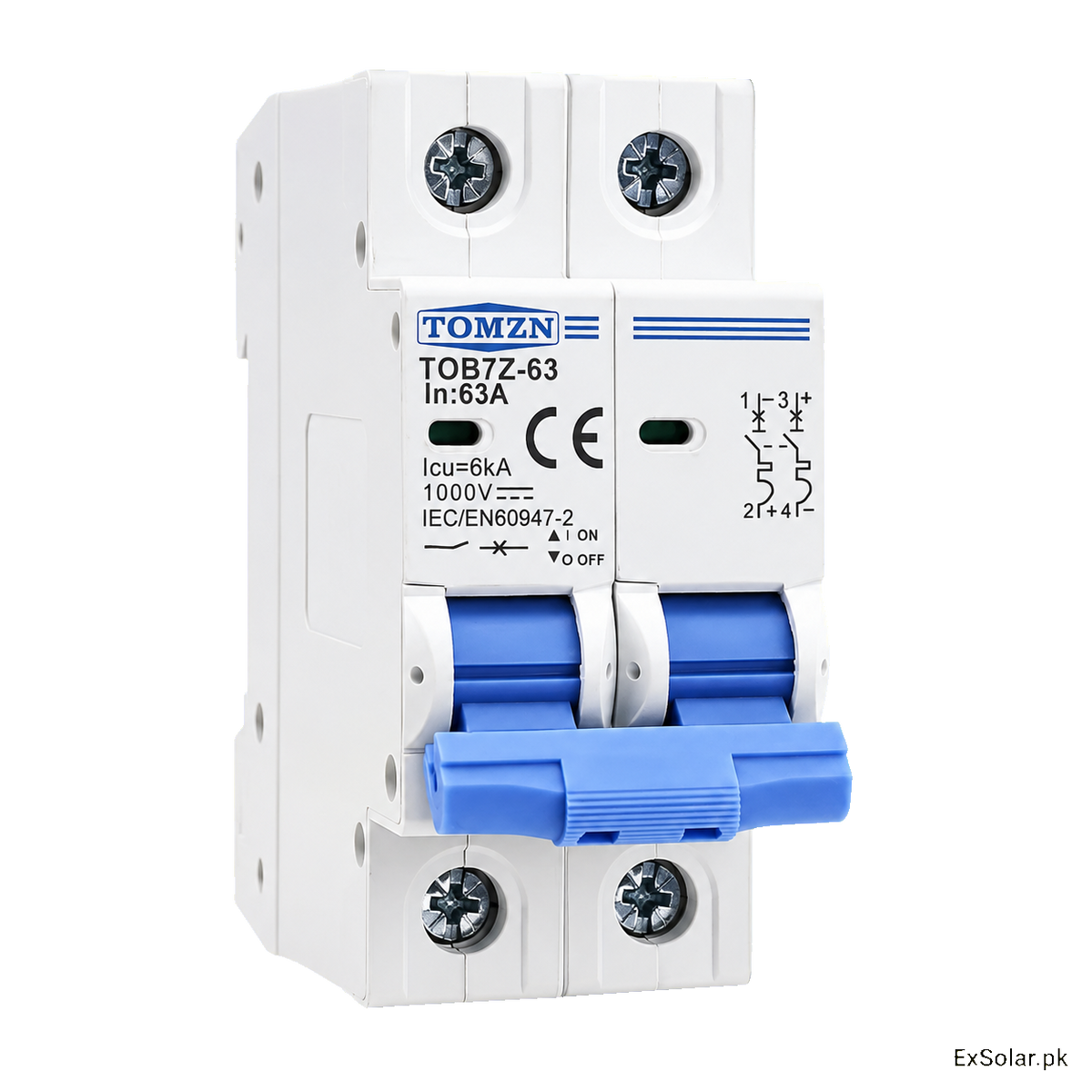

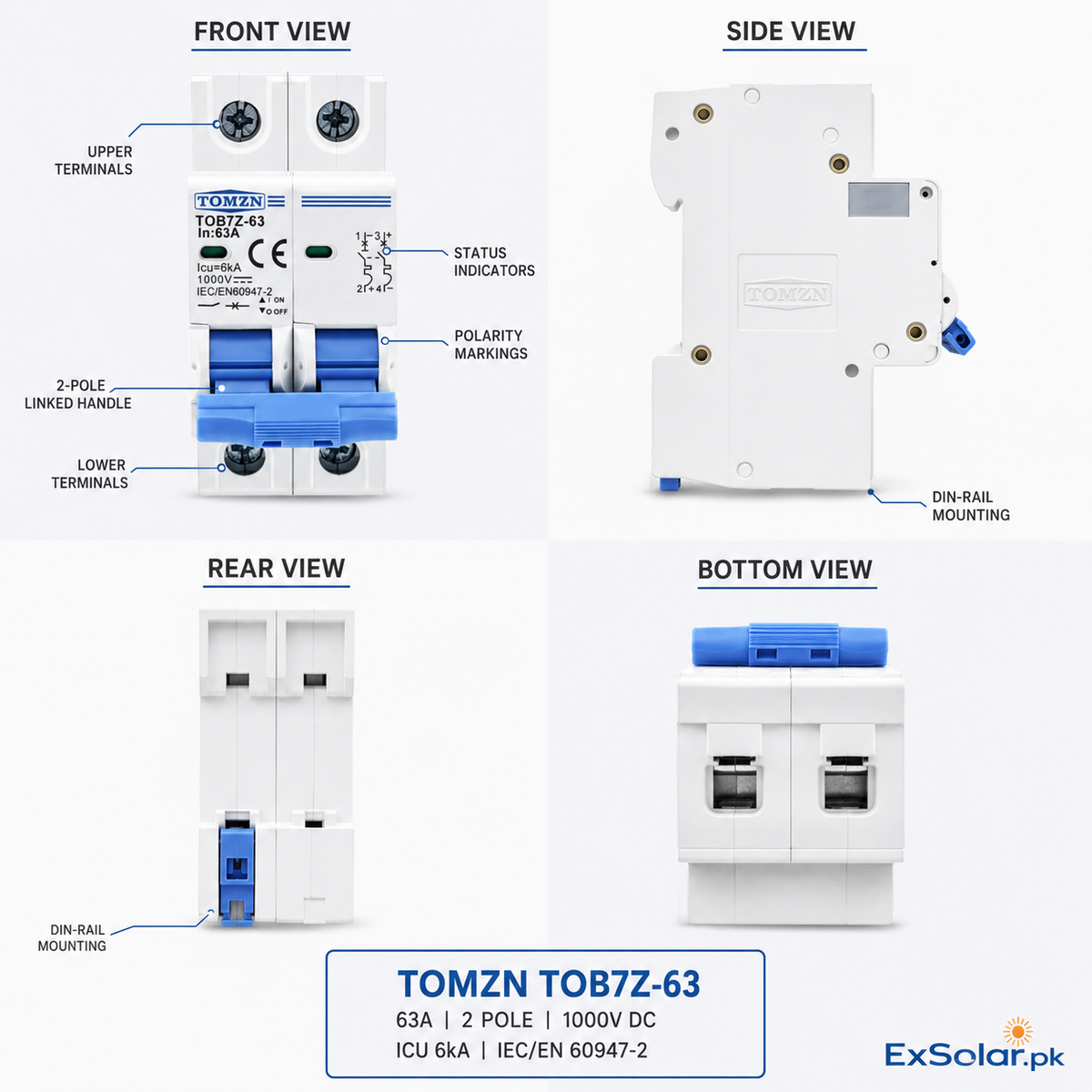

The supplied 63A product image shows a mechanically linked blue operating handle, two green status windows, four screw terminals, polarity markings, Icu 6kA, IEC/EN 60947-2 and CE markings. Correct DC polarity, circuit voltage, prospective fault current, cable size and protection coordination must be confirmed by a qualified installer before installation.

Key Features

• Official TOMZN TOB7Z-63 series product

• 63A rated-current variant

• Two-pole DC switching configuration

• Rated for DC systems up to 1000V

• Officially listed for photovoltaic systems

• Overload and short-circuit protection stated by TOMZN Pakistan

• Suitable for infrequent line operation according to the regional product page

• Icu 6kA marking visible on the supplied unit

• IEC/EN 60947-2 marking visible on the product

• High-visibility blue mechanically linked handle

• Two green contact/status indicator windows

• Clearly printed polarity and terminal diagram

Technical Specifications

Applications

• Photovoltaic and solar DC systems

• Communications DC circuits

• DC distribution boards

• Compatible solar combiner-box circuits

• Battery and energy-storage DC circuits, subject to engineering verification

• Renewable-energy DC installations

Application note: Photovoltaic and communications applications are stated by TOMZN. Battery and other system suitability must be confirmed against the installation voltage, continuous current, fault level and applicable regulations.

Box Contents

• TOMZN TOB7Z-63 63A 2P DC breaker unit — expected primary product; exact retail pack verification unavailable

• Retail packaging — Not Verified

• Installation manual — Not Verified

• Mounting accessories — Not Verified

• Warranty documentation — Not Verified

Protection Features

• Overload protection — officially stated by TOMZN Pakistan

• Short-circuit protection — officially stated by TOMZN Pakistan

• Two-pole linked disconnection — physical design visible; detailed switching specification Not Verified

• Polarity identification — printed connection diagram visible on the enclosure

• Ultimate breaking capacity — Icu 6kA marking visible on the supplied unit

Certifications

Warranty

Not Verified. No official model-specific warranty period or warranty document was located.
