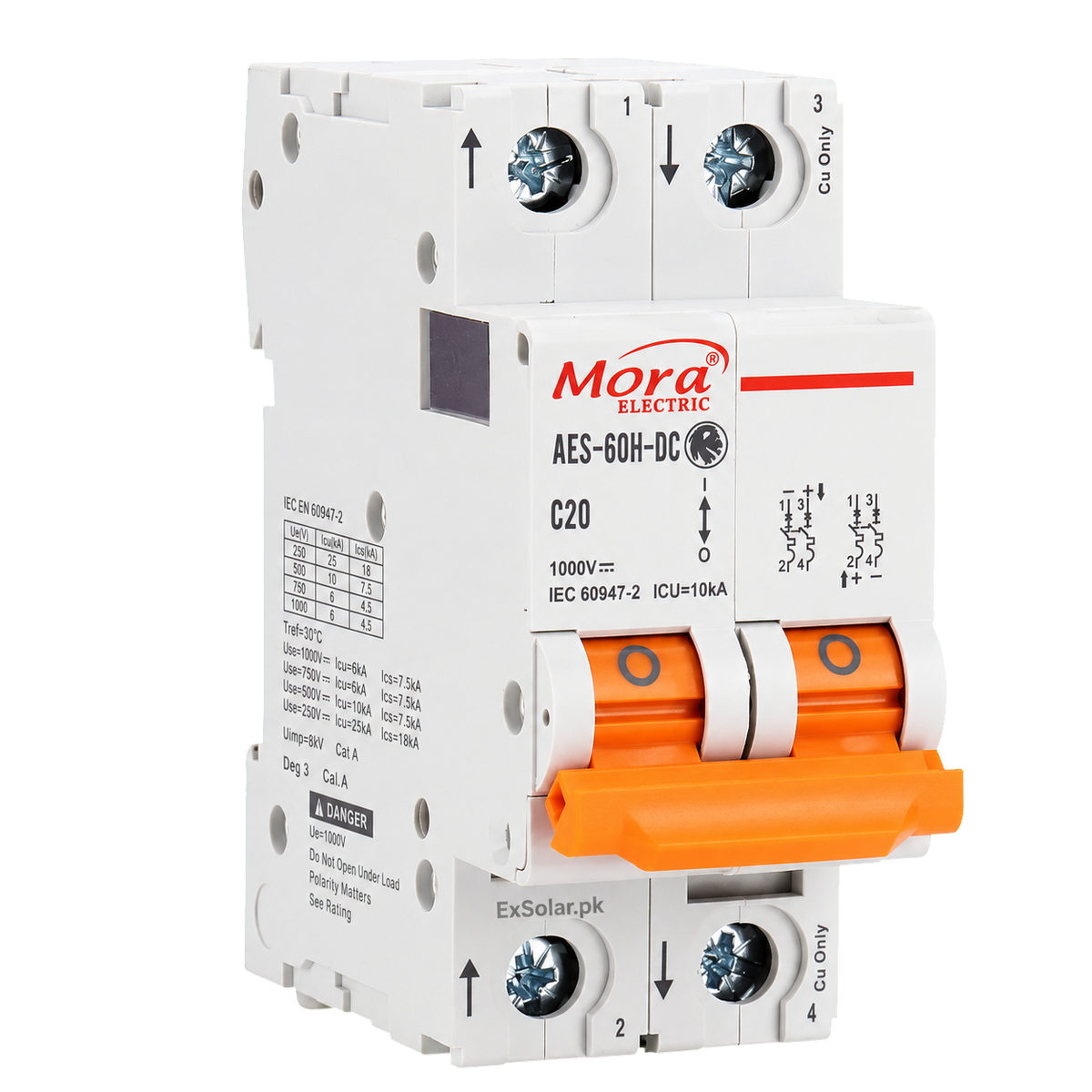

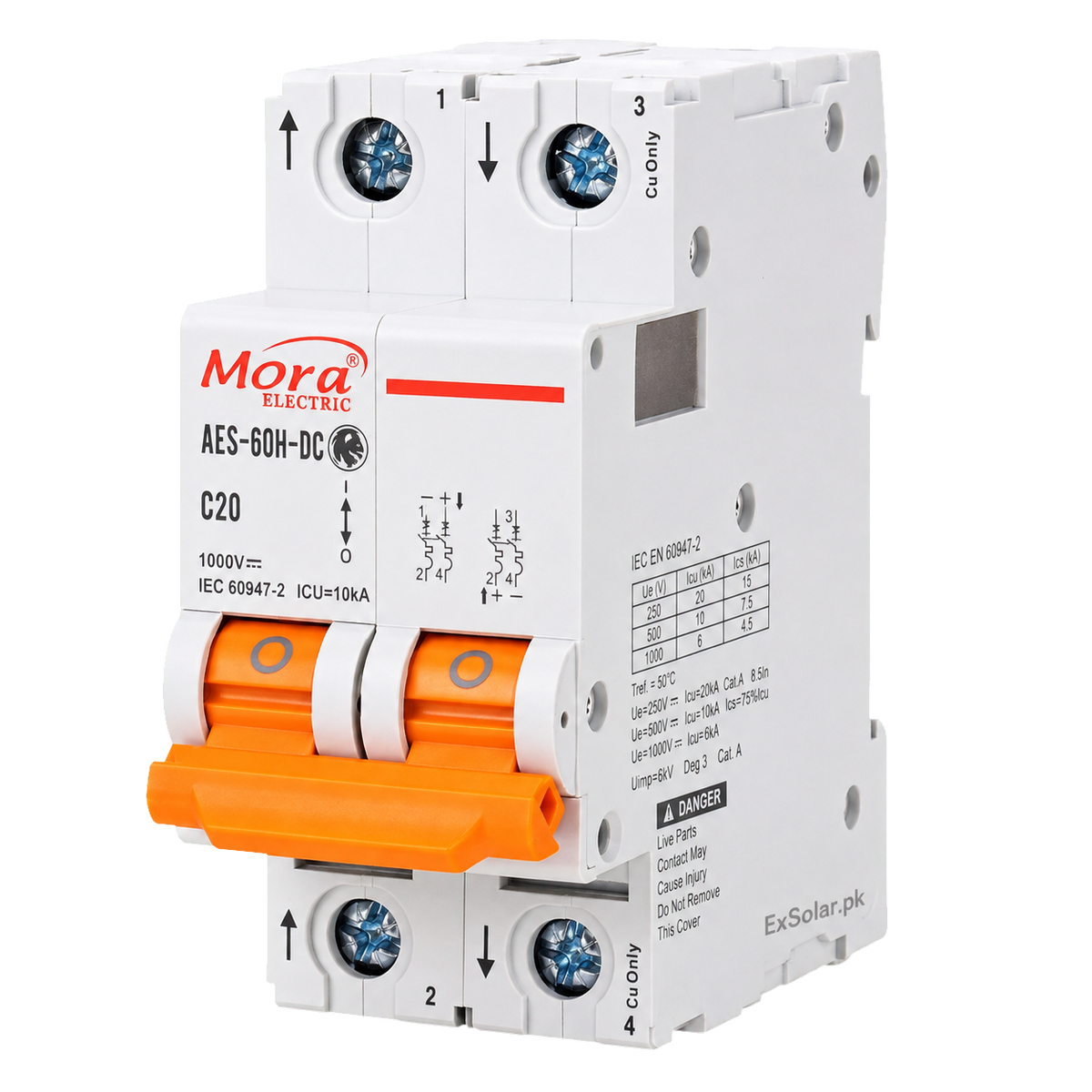

MORA AES-60H-DC C20 20A 2-Pole DC Circuit Breaker

Product Identification

Important verification note: the supplied physical-product reference is marked C63. The product visuals in this package were changed to C20 at the customer's instruction because the 20A version reportedly uses the same enclosure design. An official MORA datasheet or model-specific page confirming the exact AES-60H-DC C20 2P variant was not found.

Short Description

The MORA AES-60H-DC C20 is presented as a 20A, two-pole DC circuit breaker for compatible solar and DC distribution applications. It features linked double-pole operation, polarity-marked terminals, a compact modular enclosure and DIN-rail-style installation. Exact electrical ratings for the C20 variant must be confirmed before installation.

Long Description

The MORA AES-60H-DC C20 2P DC breaker is designed in a compact two-module format for compatible direct-current circuits. Its mechanically linked orange handle operates both poles together, while numbered and polarity-marked terminals help installers follow the required DC wiring direction.

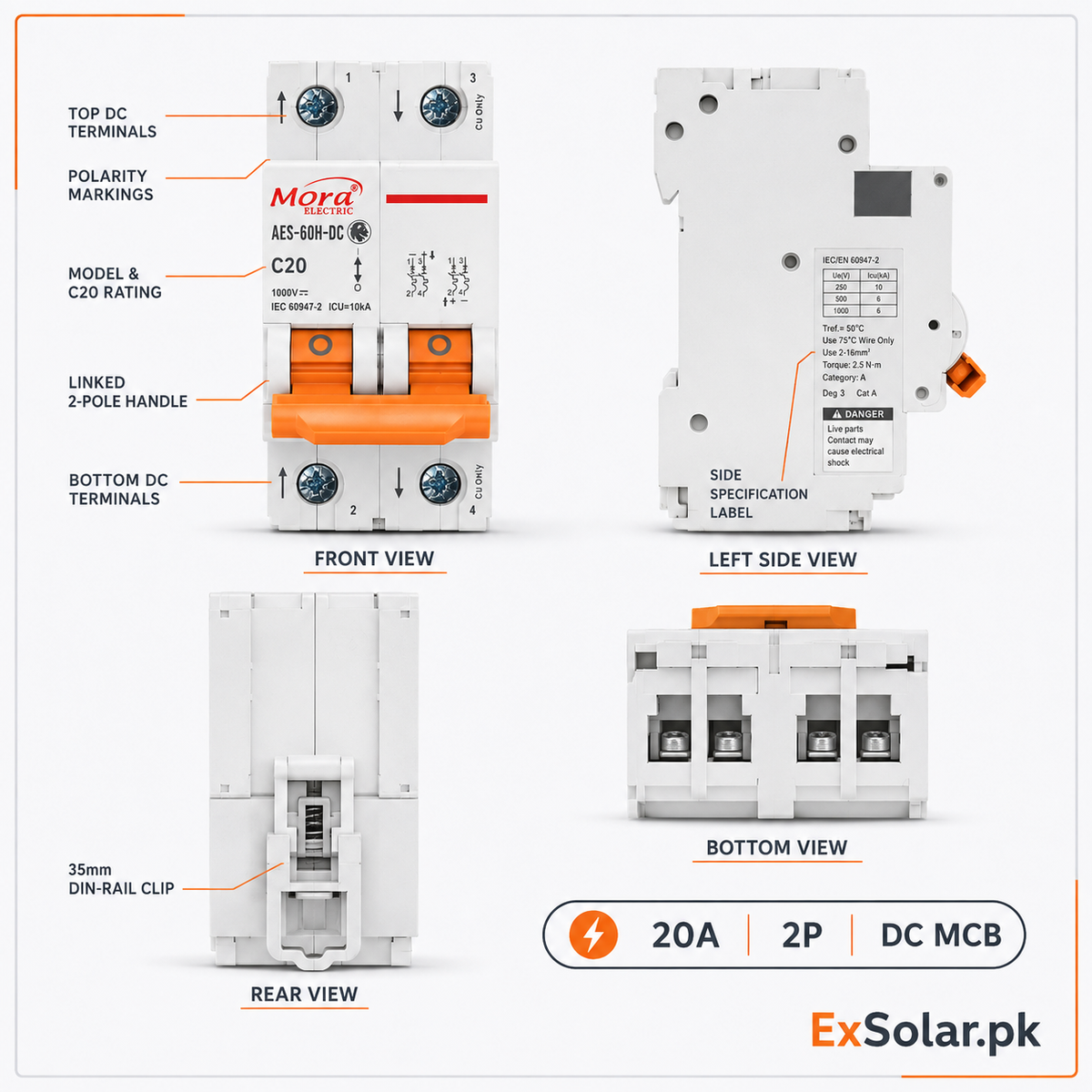

The supplied reference shows the AES-60H-DC enclosure, MORA Electric branding, a side specification label and IEC 60947-2 marking. For this Shopify listing, the original C63 front marking has been changed to C20 according to the customer's product information. Because an official MORA specification sheet for the exact C20 2P version could not be located, voltage, breaking capacity, endurance, environmental ratings and terminal limits must be confirmed from the actual unit, packaging or authorized MORA documentation before sale or installation.

This product should only be selected and installed by a qualified technician after confirming system voltage, prospective short-circuit current, polarity, conductor size, enclosure conditions and local electrical requirements.

Key Features

• 20A requested current rating

• Two-pole DC breaker configuration

• C20 front marking requested for this variant

• Mechanically linked double-pole handle

• Clearly numbered terminals

• Polarity-marked DC connection points

• Compact modular enclosure

• Orange operating handle for high visibility

• Side specification-label area

• DIN-rail-style installation format

• Suitable for professionally designed DC protection assemblies

• MORA Electric AES-60H-DC series styling

Technical Specifications

Applications

• Solar PV DC protection assemblies

• Battery and energy-storage DC circuits

• DC distribution panels

• DC combiner and protection boxes

• Equipment-level DC isolation

• Renewable-energy installations

• Industrial DC control circuits

Selection warning: Do not use the breaker until the exact unit's voltage rating, breaking capacity, polarity diagram and conductor requirements have been checked against the intended system.

Box Contents

• 1 × MORA AES-60H-DC C20 20A 2P DC breaker — requested product configuration

• Printed manual or certificate: Not Verified

• DIN rail: Not Included / Not Verified

• Cables, lugs, busbars and enclosure: Not Included / Not Verified

Protection Features

• Intended overload-current protection — exact C20 trip data Not Verified

• Intended short-circuit-current protection — exact C20 breaking data Not Verified

• Mechanically linked two-pole operation

• Polarity-marked terminals

• Manual ON/OFF operation

• Warning label on enclosure

Not included or not specified: residual-current protection, surge protection, arc-fault protection, remote monitoring, automatic transfer and over/under-voltage protection.

Certifications

Warranty

Official warranty duration and Pakistan claim procedure for the exact AES-60H-DC C20 2P variant: Not Verified.
