Product Identification

Product Title

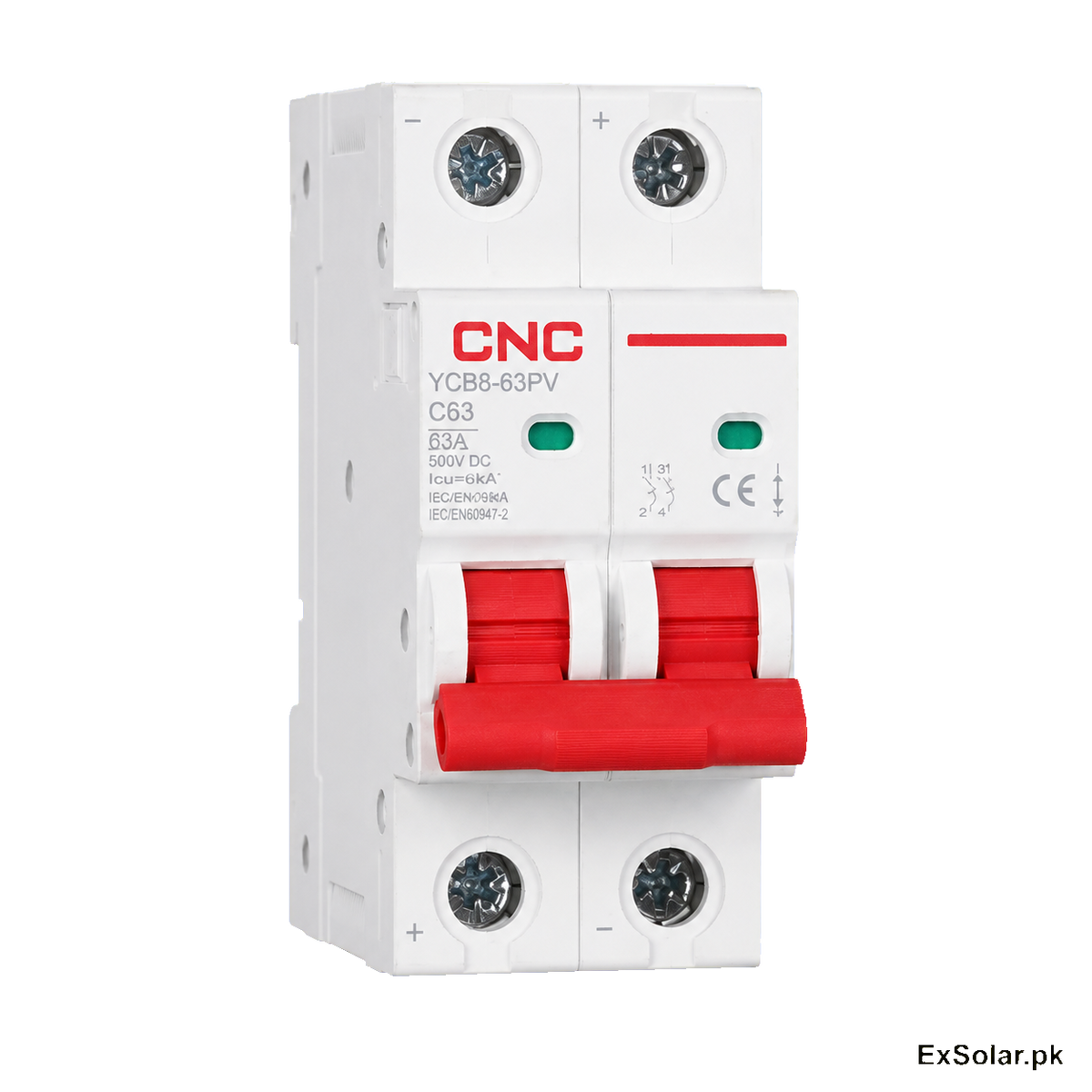

CNC YCB8-63PV C63 63A 2-Pole 500V DC Solar MCB

Short Description

The CNC Electric YCB8-63PV C63 is a 63A, two-pole photovoltaic DC miniature circuit breaker rated for 500V DC. It provides isolation, overload and short-circuit protection with 6kA breaking capacity, thermomagnetic tripping, IP20 protection and IEC/EN 60947-2 compliance.

Long Description

Engineered for photovoltaic and other compatible DC distribution systems, the CNC YCB8-63PV combines a compact modular design with comprehensive circuit protection. CNC’s official selection table confirms that the two-pole configuration is rated at 500V DC, while the series supports current ratings up to 63A.

The C63 variant uses a C tripping characteristic and thermomagnetic release. Its 6kA ultimate breaking capacity and service breaking capacity equal to 100% of Icu support dependable interruption of DC fault currents when the breaker is correctly selected and installed.

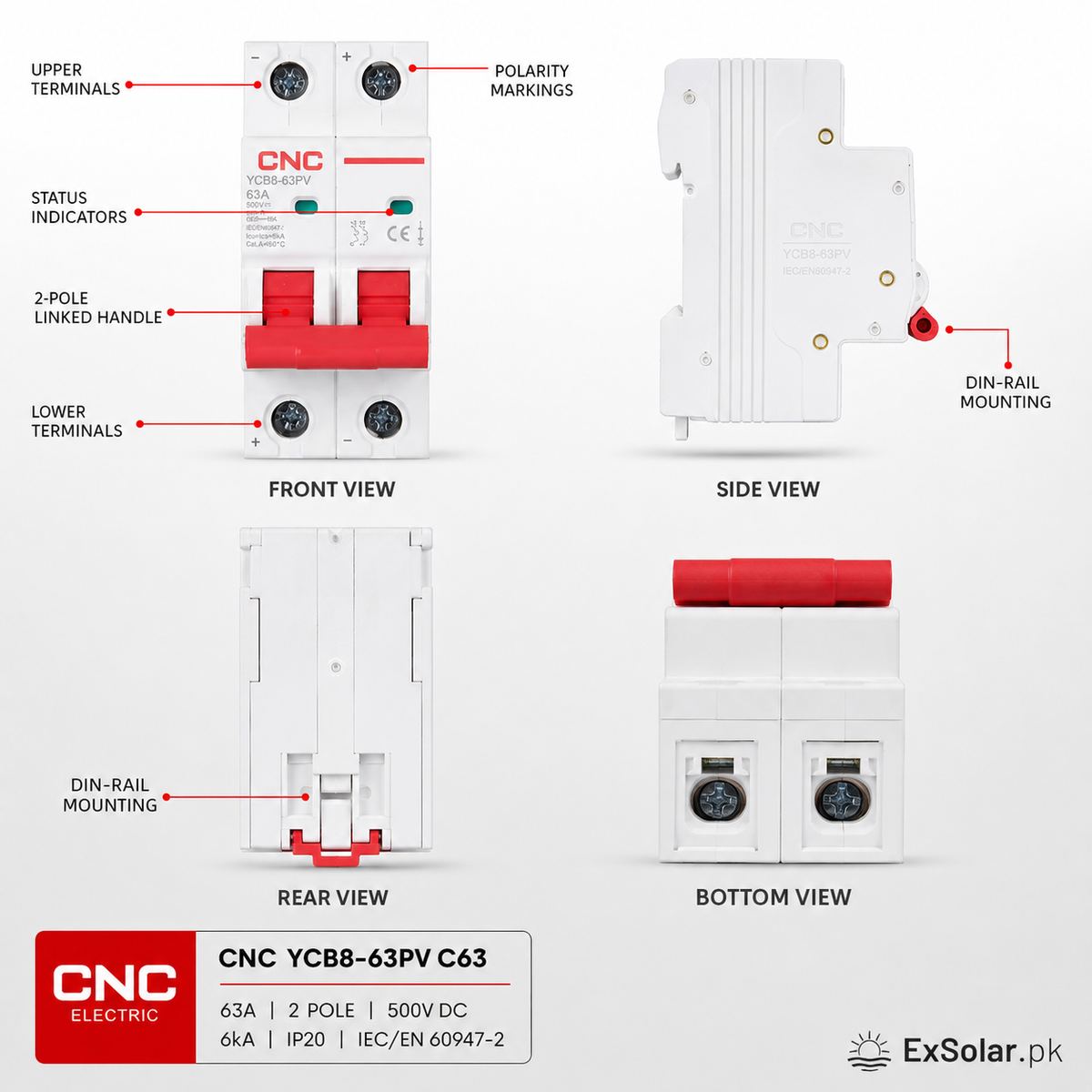

The breaker supports standard DIN-rail installation and includes polarity markings for correct DC wiring. CNC officially lists isolation, overload and short-circuit protection and identifies photovoltaic, industrial, civil and communication systems among the intended applications. A qualified installer must confirm circuit polarity, voltage, continuous current, prospective fault current, cable sizing and protection coordination before installation.

Key Features

• Official CNC Electric YCB8-63PV photovoltaic DC MCB

• 63A rated-current C-curve variant

• Two-pole configuration rated for 500V DC

• 6kA ultimate breaking capacity

• Ics equal to 100% of Icu

• Isolation, overload and short-circuit protection

• Thermomagnetic tripping mechanism

• Standard DIN-rail installation

• Compact modular design

• IP20 enclosure protection rating

• Working temperature range from -35°C to +70°C

• IEC/EN 60947-2 and EU RoHS requirements

Technical Specifications

Applications

• Solar photovoltaic DC systems

• PV string and array protection

• DC distribution boards

• Solar combiner boxes

• Industrial DC systems

• Civil DC installations

• Communication and telecom DC systems

• Battery and energy-storage circuits, subject to engineering verification

Box Contents

• CNC YCB8-63PV C63 63A 2P breaker unit — primary product

• Retail packaging — Not Verified

• Installation instructions — Not Verified

• Auxiliary contacts or other accessories — Not Verified; listed as optional accessories

• Warranty documentation — Not Verified

Protection Features

• Overload protection

• Short-circuit protection

• Circuit isolation function

• 6kA ultimate fault-current interruption capacity

• Ics equal to 100% of Icu

• Thermomagnetic release

• Two-pole linked operation

• Polarity markings for correct DC connection

• Green contact/status indicator windows

Certifications

Warranty

Not Verified. A model-specific official warranty period and warranty document were not located.
