Product Identification

Important: the attached product is an RCBO, not an ordinary MCB. It combines residual-current (earth-leakage), overload and short-circuit protection.

Short Description

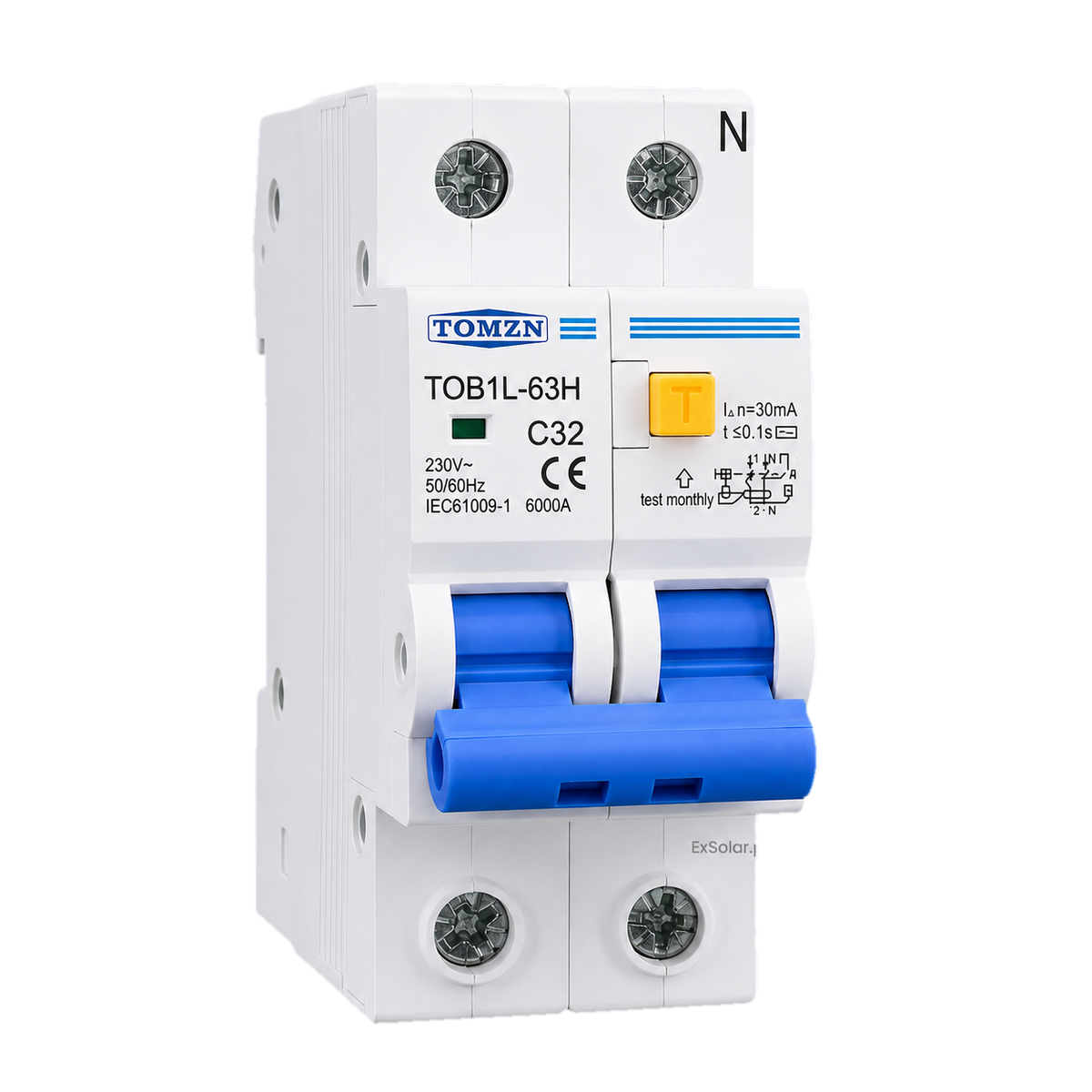

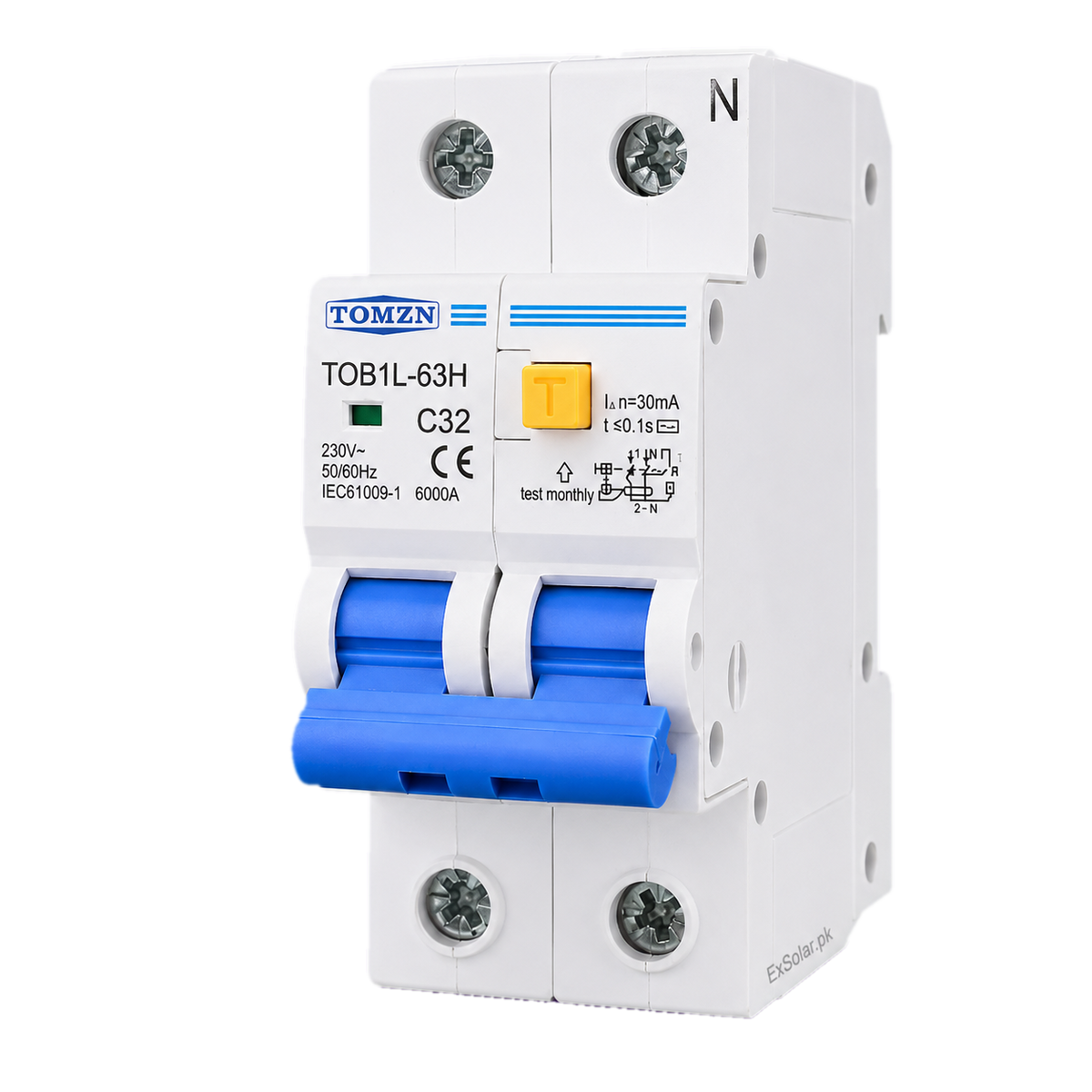

The TOMZN TOB1L-63H C32 is a 32A, 2-pole AC RCBO designed to disconnect both line and neutral while providing 30mA earth-leakage, overload and short-circuit protection. The supplied unit is marked for 230V AC, 50/60Hz operation, a 6kA breaking capacity and IEC 61009-1 compliance.

Long Description

Protect residential AC circuits with one compact device. The TOMZN TOB1L-63H C32 combines overcurrent and residual-current protection, helping guard wiring against overloads and short circuits while responding to sinusoidal alternating earth-fault currents.

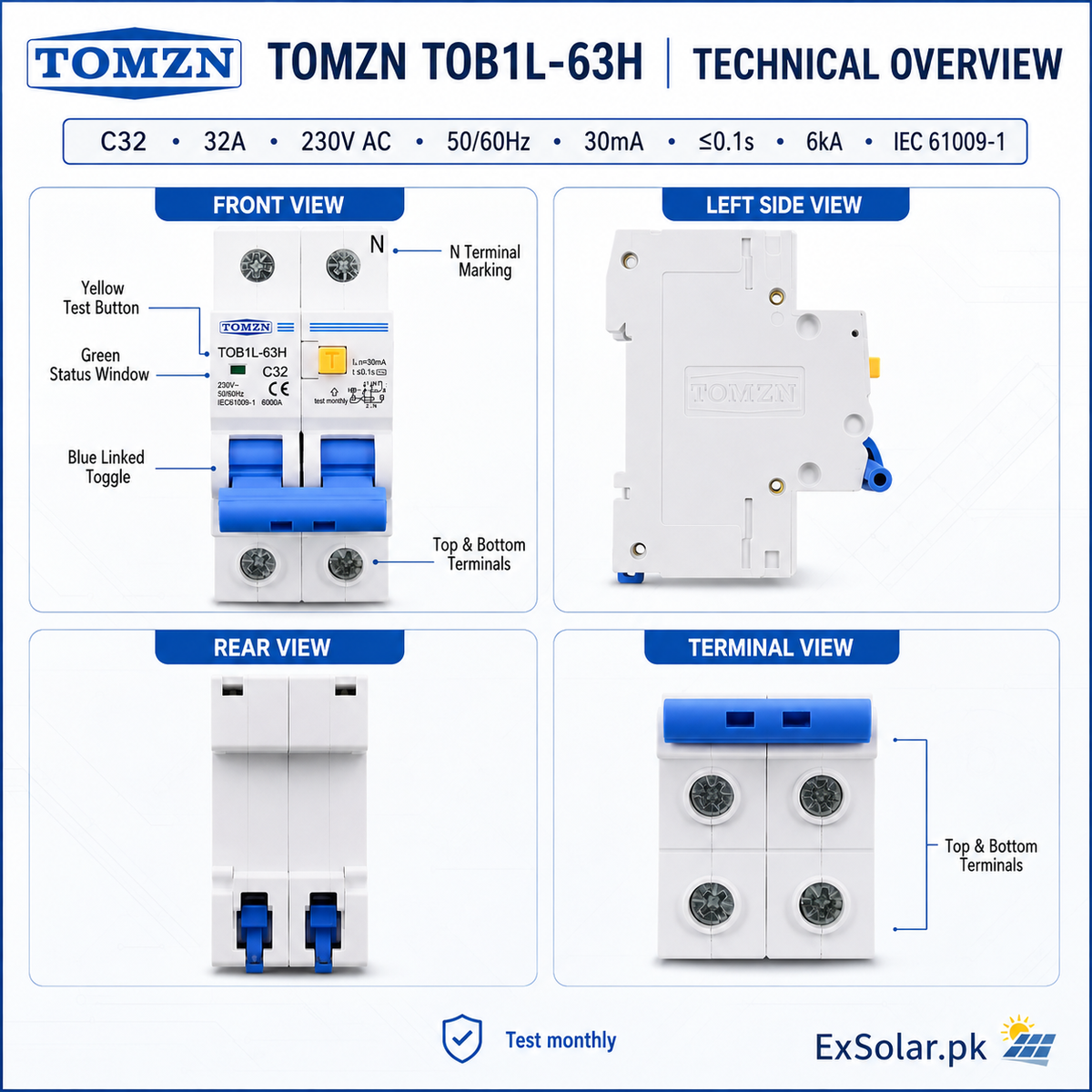

This 32A variant is rated for 230V AC at 50/60Hz and disconnects both L and N. Its 30mA residual-current sensitivity, yellow test button, linked blue operating toggle and visible status window make routine operation and functional testing straightforward. The product label identifies a 6kA breaking capacity, Type AC residual-current marking and IEC 61009-1 standard.

The unit is intended for correctly designed residential distribution circuits. Selection, wiring and installation must be completed by a qualified electrician in accordance with local electrical regulations and the official wiring information for the product.

Key Features

• RCBO combining earth-leakage, overload and short-circuit protection

• 32A rated current with C tripping-curve marking

• Two-pole configuration that disconnects both line and neutral

• 30mA rated residual operating current

• Type AC residual-current marking for sinusoidal alternating earth-fault currents

• 230V AC rated voltage

• 50/60Hz rated frequency

• 6kA rated short-circuit breaking capacity marked on the unit

• Residual operating time marked as no more than 0.1 seconds

• Yellow test button with “test monthly” instruction

• Green mechanical/status indication window

• IEC 61009-1 marking on the product

Technical Specifications

Applications

• Residential distribution boards

• Single-phase 230V AC branch-circuit protection

• Circuits requiring combined leakage and overcurrent protection

• Additional protection against direct contact and protection against indirect contact

• Protection against fire risk associated with insulation faults

• AC-side protection in a suitably engineered power or solar installation

Final circuit suitability and breaker coordination must be confirmed by a qualified electrician. This is not a DC/PV breaker.

Box Contents

• 1 × TOMZN TOB1L-63H C32 RCBO unit

• Printed manual, wiring sheet, packaging and any additional accessories: Not Verified

Protection Features

• Overload-current protection

• Short-circuit-current protection

• Sinusoidal alternating earth-fault current protection

• Protection against indirect contact

• Additional protection against direct contact

• Protection against fire hazards caused by insulation faults

• Simultaneous L and N disconnection

Certifications and Standards

Warranty

Not Verified. TOMZN states that warranty periods vary by product category, but no model-specific warranty term for the TOB1L-63H C32 was located on the official product page. Confirm the applicable ExSolar.pk or manufacturer warranty before publishing a duration.
