TOMZN TOB1-63H C63 63A 2-Pole 400V 6kA AC Miniature Circuit Breaker

Product Identification

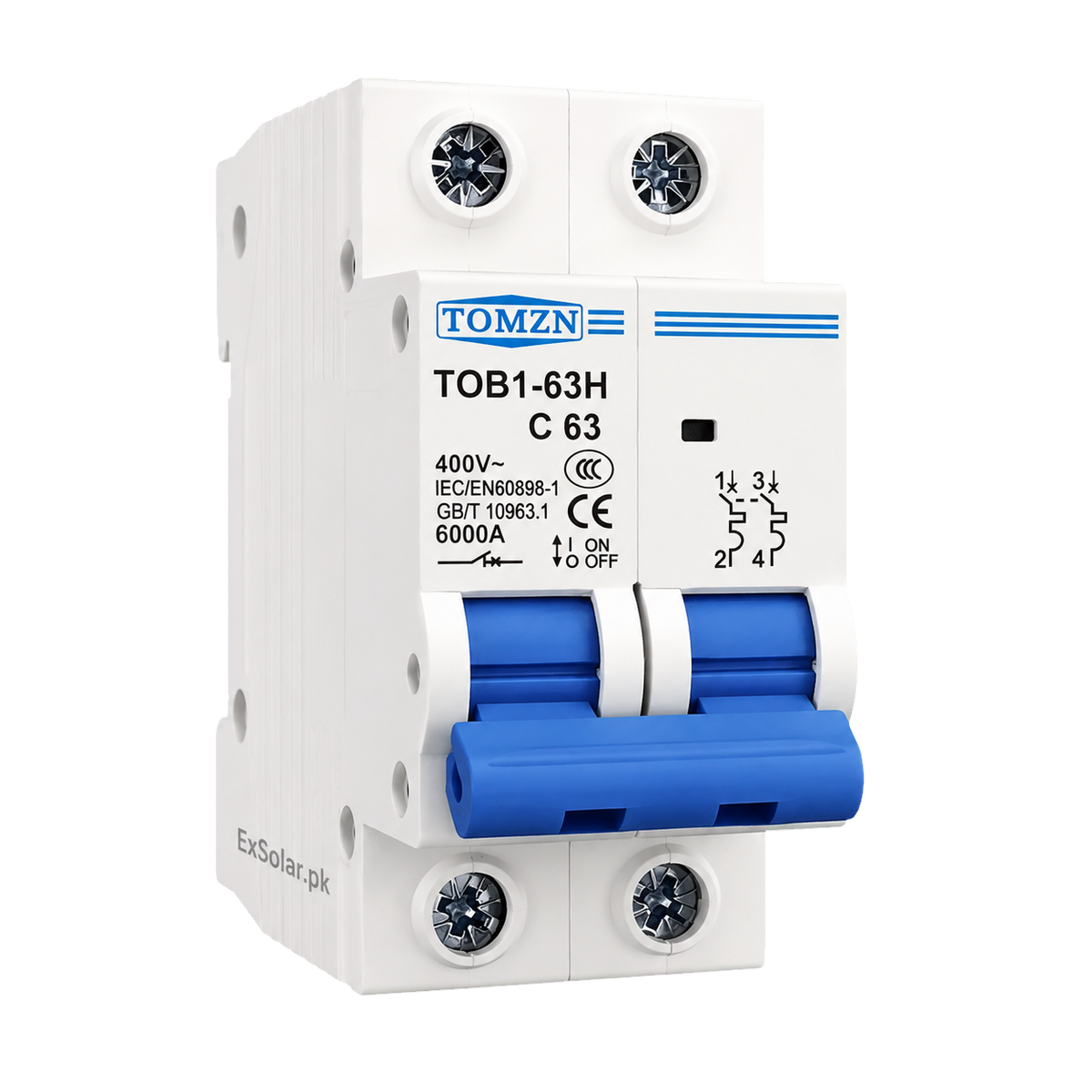

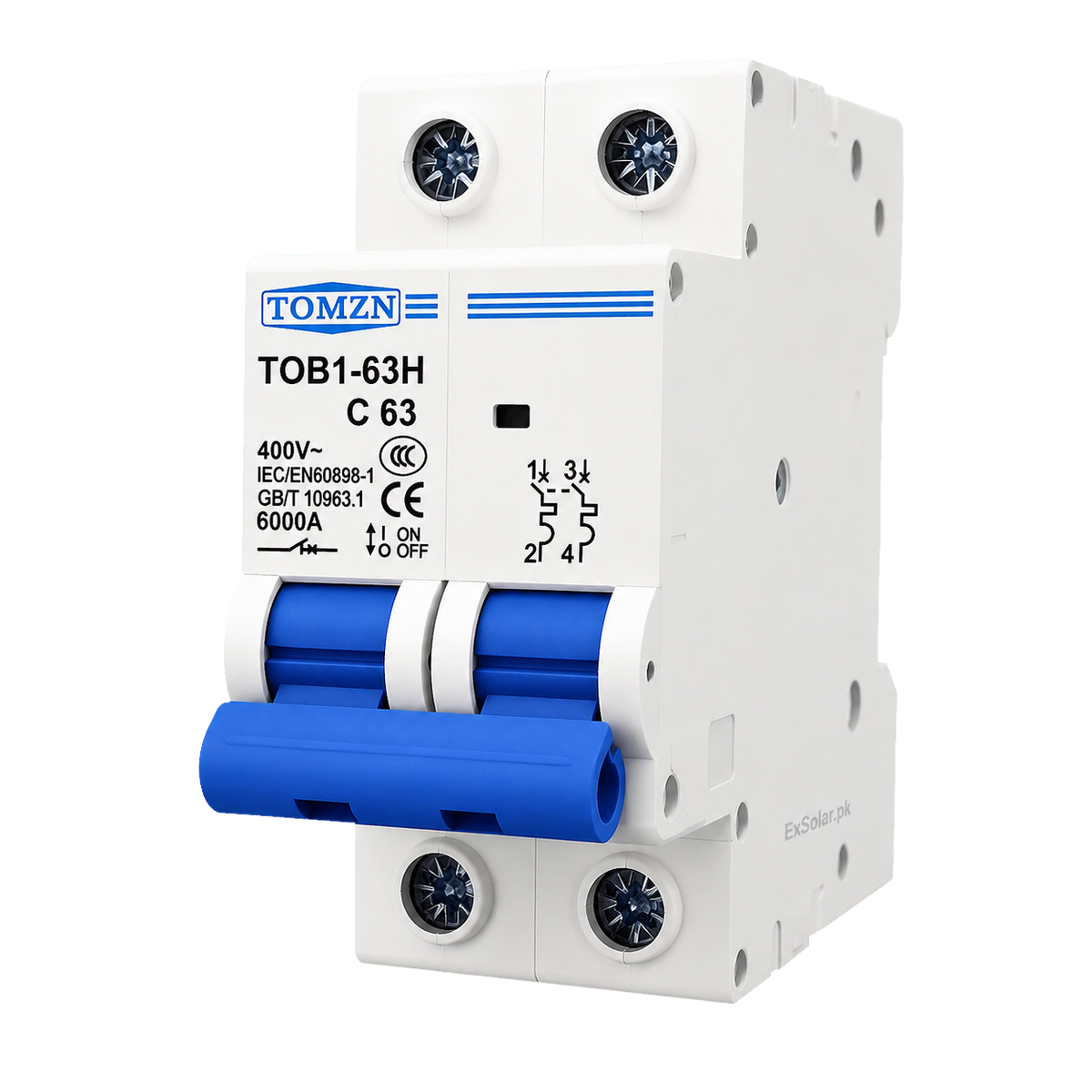

The supplied image matches TOMZN's official TOB1-63H C-curve AC MCB series. Its front label shows C63, 2P, 400V~, 6000A, IEC/EN 60898-1, GB/T 10963.1, CE and CCC markings.

Short Description

The TOMZN TOB1-63H C63 is a 63A, 2-pole, C-curve AC miniature circuit breaker with a 6kA breaking-capacity marking. Designed for compatible low-voltage AC distribution systems, it provides overload and short-circuit protection with a mechanically linked double-pole operating handle.

Long Description

The TOMZN TOB1-63H C63 2P MCB is designed for overload and short-circuit protection in compatible AC lighting and motor-distribution systems. TOMZN officially specifies the TOB1-63H C-curve series for AC 50/60Hz service, with single-pole versions for 240V circuits and two-, three- and four-pole versions for circuits up to 415V.

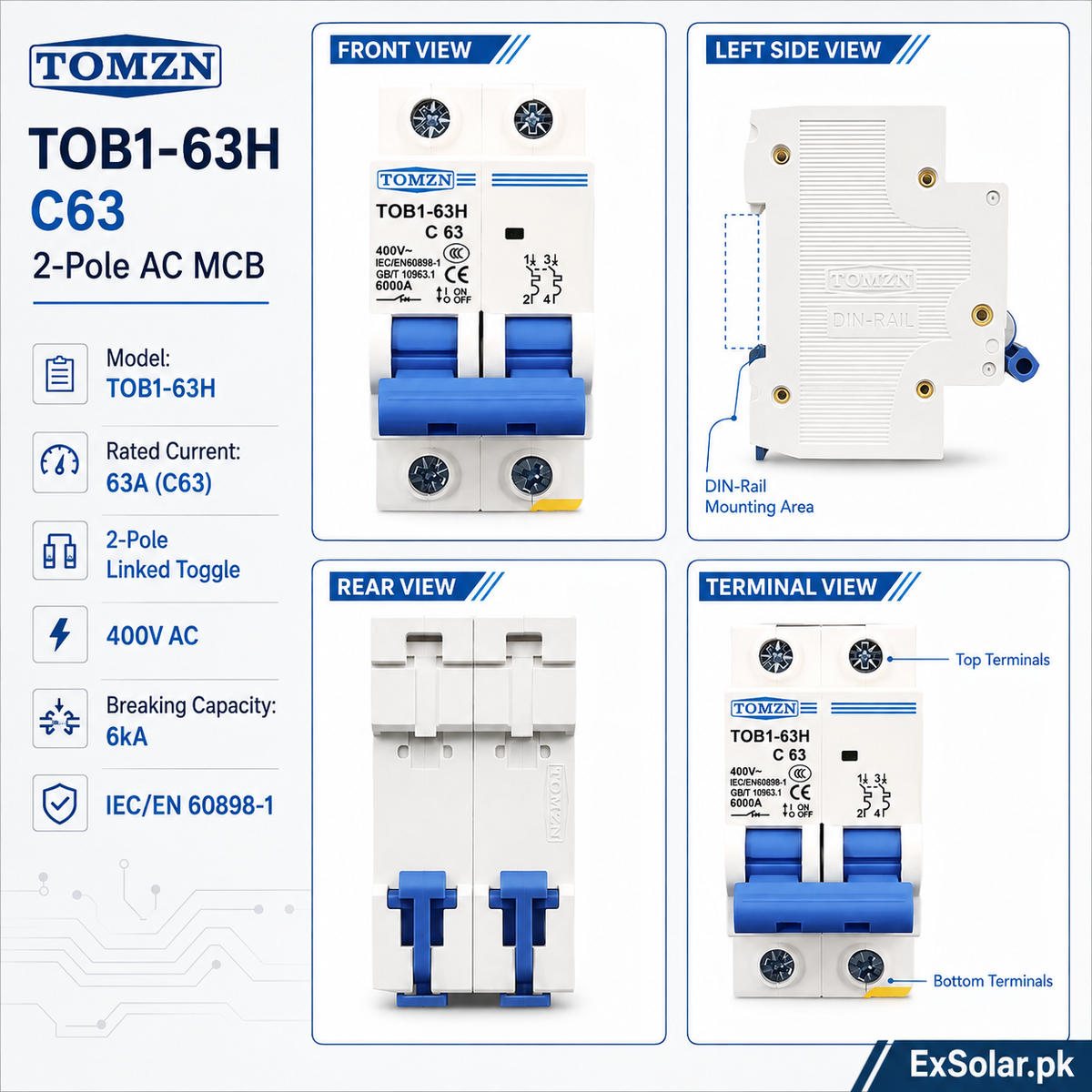

This supplied two-pole unit is marked C63, 400V~ and 6000A. Its mechanically linked blue handle operates both poles together, while the compact two-module enclosure supports installation in a compatible distribution board. TOMZN describes the series housing and components as using high fire-resistant and shockproof plastic.

The breaker may also be used for infrequent switching of electrical equipment and lighting circuits under normal conditions. Final selection and installation must be completed by a qualified electrician after checking the system voltage, prospective fault current, conductor size, enclosure and local electrical regulations.

Key Features

• 63A rated-current variant

• Two-pole mechanically linked operation

• C-curve tripping characteristic

• 6kA breaking-capacity marking

• 400V AC marking on supplied unit

• AC 50/60Hz series operation

• Overload protection

• Short-circuit protection

• IEC 60898 and IEC 60947 series compliance stated by TOMZN

• IEC/EN 60898-1 marking on supplied unit

• Fire-resistant and shockproof plastic construction stated by TOMZN

• Suitable for compatible lighting and motor-distribution systems

Technical Specifications

Applications

• Residential AC distribution boards

• Commercial AC distribution panels

• Lighting-distribution systems

• Compatible motor-distribution systems

• Branch-circuit overload and short-circuit protection

• Infrequent switching of electrical equipment

• AC-side protection in solar and hybrid installations

Important: This is an AC MCB. Do not install it in a DC circuit. Installation, conductor selection and protective coordination must be handled by a qualified electrician.

Box Contents

• 1 × TOMZN TOB1-63H C63 63A 2P AC MCB

• Printed manual: Not Verified

• DIN rail: Not Included / Not Verified

• Cables, lugs and enclosure: Not Included / Not Verified

Protection Features

• Overload protection

• Short-circuit protection

• 6kA breaking-capacity marking

• Mechanically linked two-pole operation

• ON/OFF position marking

• Fire-resistant and shockproof plastic construction stated by TOMZN

Not specified for this MCB: residual-current/earth-leakage protection, surge protection, arc-fault protection, automatic transfer or over/under-voltage protection.

Certifications

Warranty

Official warranty duration and Pakistan claim procedure for this exact variant: Not Verified.
