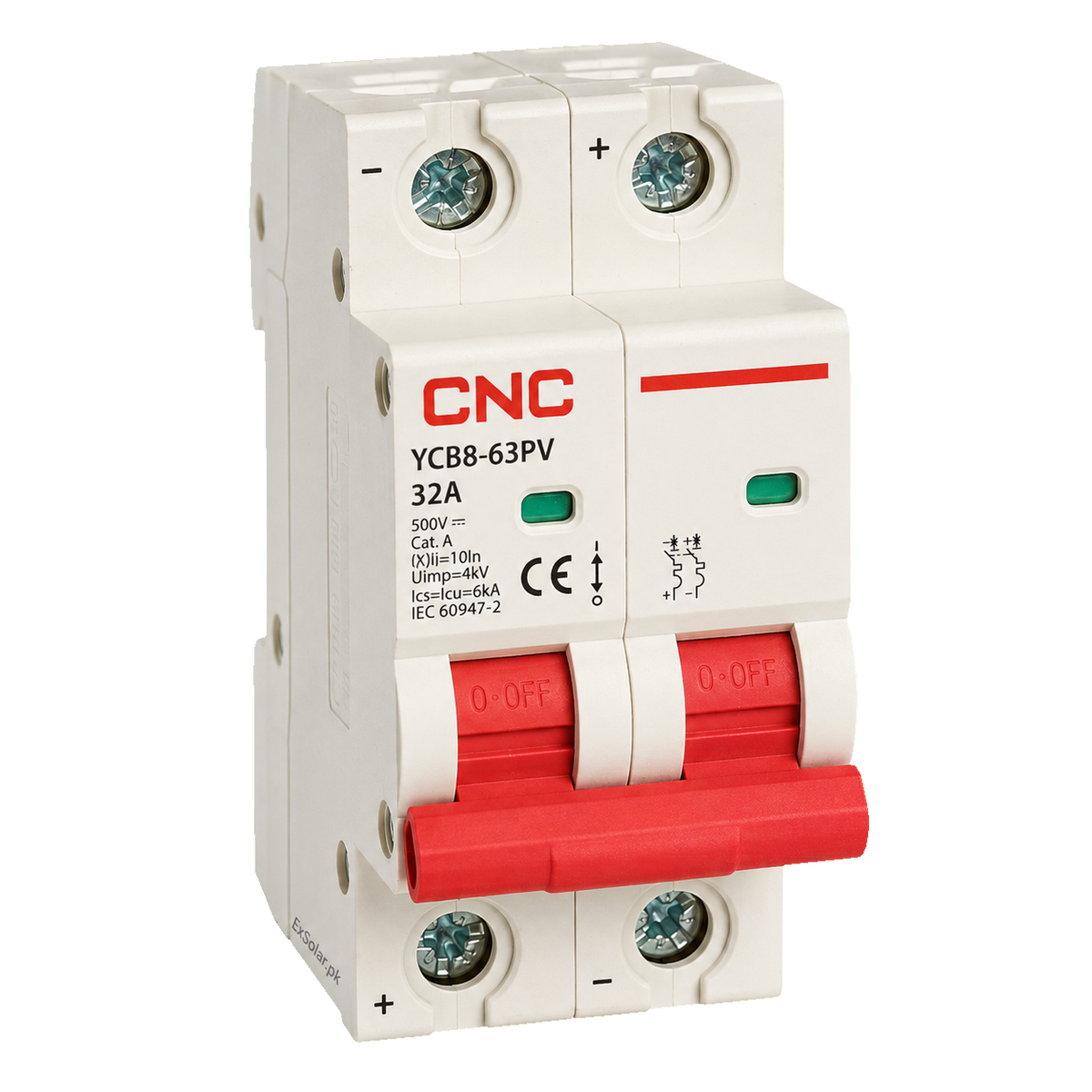

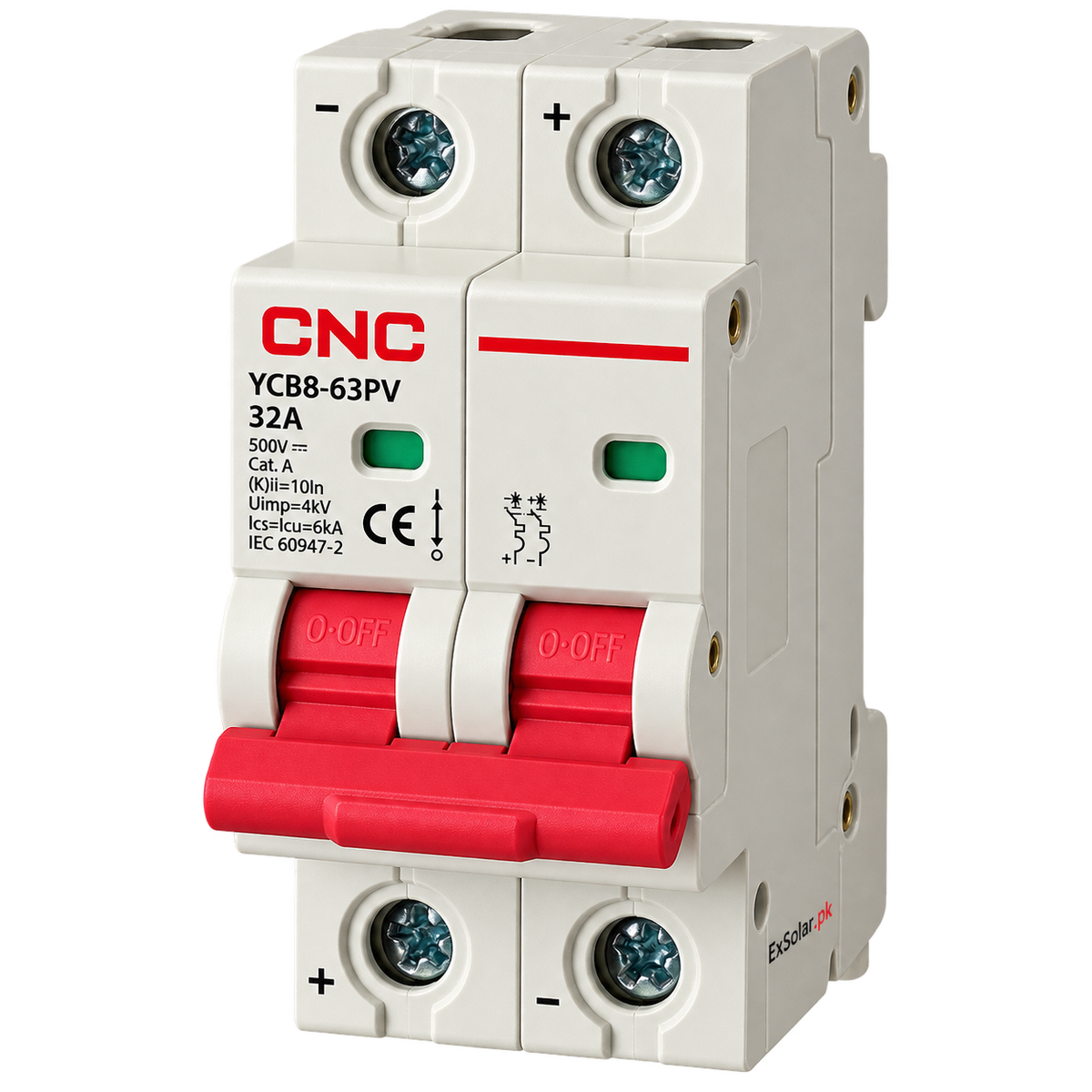

CNC YCB8-63PV 32A 2P 500V DC Solar MCB

Product Identification

Product Title

CNC YCB8-63PV 32A 2P 500V DC Solar MCB

Short Description

The CNC Electric YCB8-63PV 32A 2-pole DC miniature circuit breaker is designed for compatible photovoltaic and DC distribution systems. This 2P variant is officially rated at DC 500V and provides overload, short-circuit and isolation functions with 6kA ultimate breaking capacity, DIN35 rail mounting and IEC/EN 60947-2 compliance.

Long Description

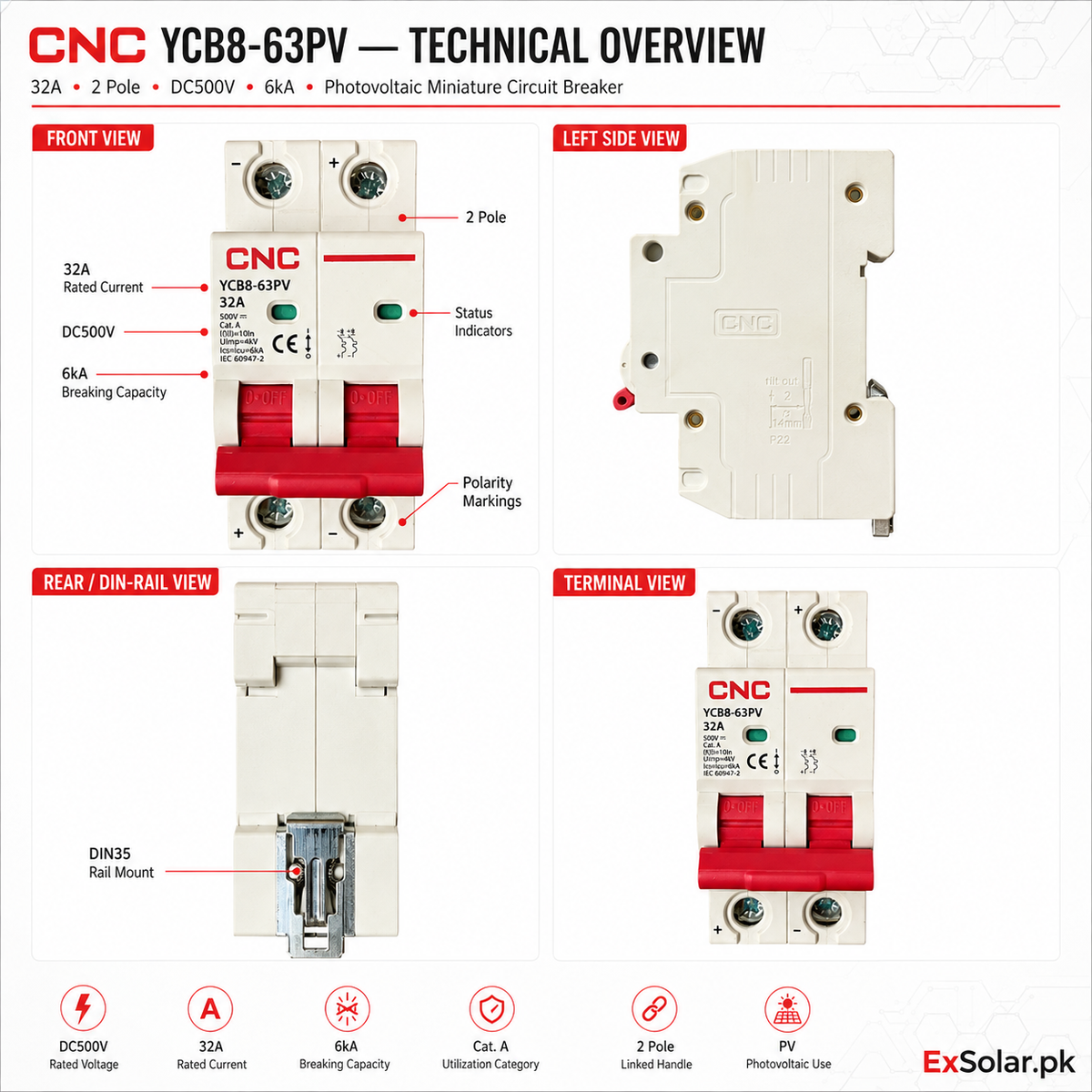

Engineered for photovoltaic DC protection, the CNC YCB8-63PV offers a compact modular design for distribution boards and solar protection enclosures. The 32A, two-pole configuration uses series-connected poles for a rated operating voltage of DC 500V. Its polarized terminal markings must be followed during installation.

The breaker uses thermomagnetic tripping and supports overload, short-circuit and manual isolation functions. CNC officially specifies a 6kA ultimate breaking capacity, 1200V DC rated insulation voltage, 4kV impulse withstand voltage, IP20 protection and installation on a standard DIN35 rail. Selection and installation must be completed by a qualified electrical professional after checking system voltage, current, fault current, conductor size, polarity and installation conditions.

Key Features

• 32A rated-current option officially listed by CNC Electric

• Two-pole polarized DC configuration

• DC 500V rated working voltage for the 2P series-connected configuration

• 6kA ultimate breaking capacity at the manufacturer's stated test condition

• Thermomagnetic tripping technology

• Overload and short-circuit protection

• Manual isolation and linked two-pole switching

• IEC/EN 60947-2 standard

• EU RoHS environmental compliance stated by the manufacturer

• Compact modular construction with DIN35 rail installation

• IP20 enclosure protection rating

• Wide official wiring-capacity range of 2.5–25mm²

Technical Specifications

Applications

• Residential solar photovoltaic systems

• Commercial photovoltaic installations

• Solar combiner and DC distribution boxes

• DC-side protection for compatible inverter circuits

• Industrial DC distribution systems

• Civil and communication DC systems

• Manual circuit isolation during authorized maintenance

Use only where the system's rated voltage, operating current, conductor size, prospective fault current, polarity and isolation requirements match the breaker specifications.

Box Contents

• CNC YCB8-63PV 32A 2P DC miniature circuit breaker: expected primary item

• Retail packaging: Not Verified

• Mounting hardware: Not Verified

• Printed manual or installation sheet: Not Verified

• Optional auxiliary, alarm or shunt-release accessories: not confirmed as included

Protection Features

• Overload protection

• Short-circuit protection

• Manual isolation function

• Thermomagnetic trip mechanism

• Linked two-pole switching

• 6kA ultimate short-circuit breaking capacity

• Polarity-marked terminals for polarized DC installation

• Optional compatible auxiliary contact, alarm contact and shunt-release accessories available at series level; inclusion Not Verified

• Residual-current protection: Not provided / this product is not an RCCB or RCBO

• Surge protection: Not provided / use a separately rated DC SPD where required

Certifications and Standards

Warranty

Official product warranty period and warranty conditions: Not Verified.
