Product Identification

Short Description

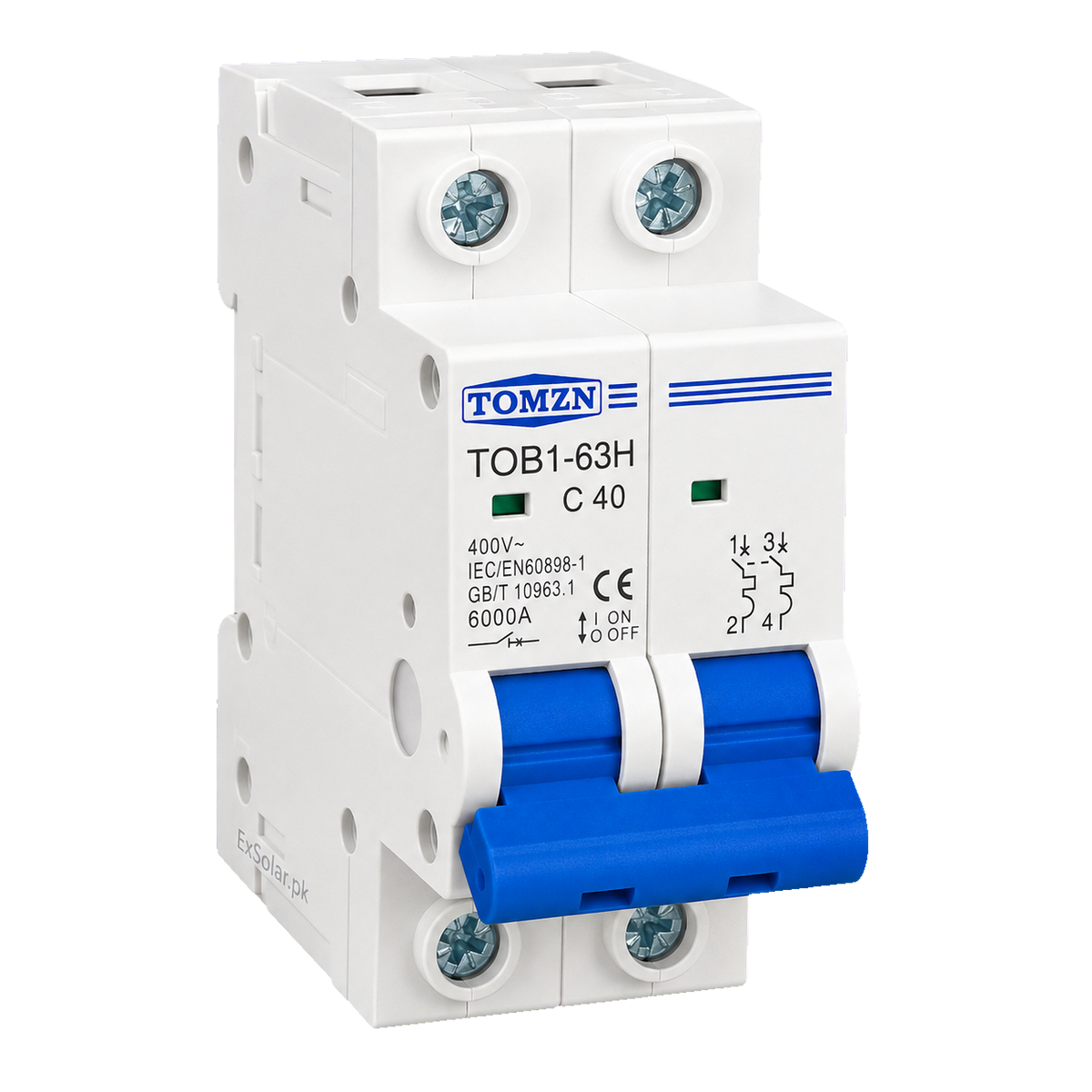

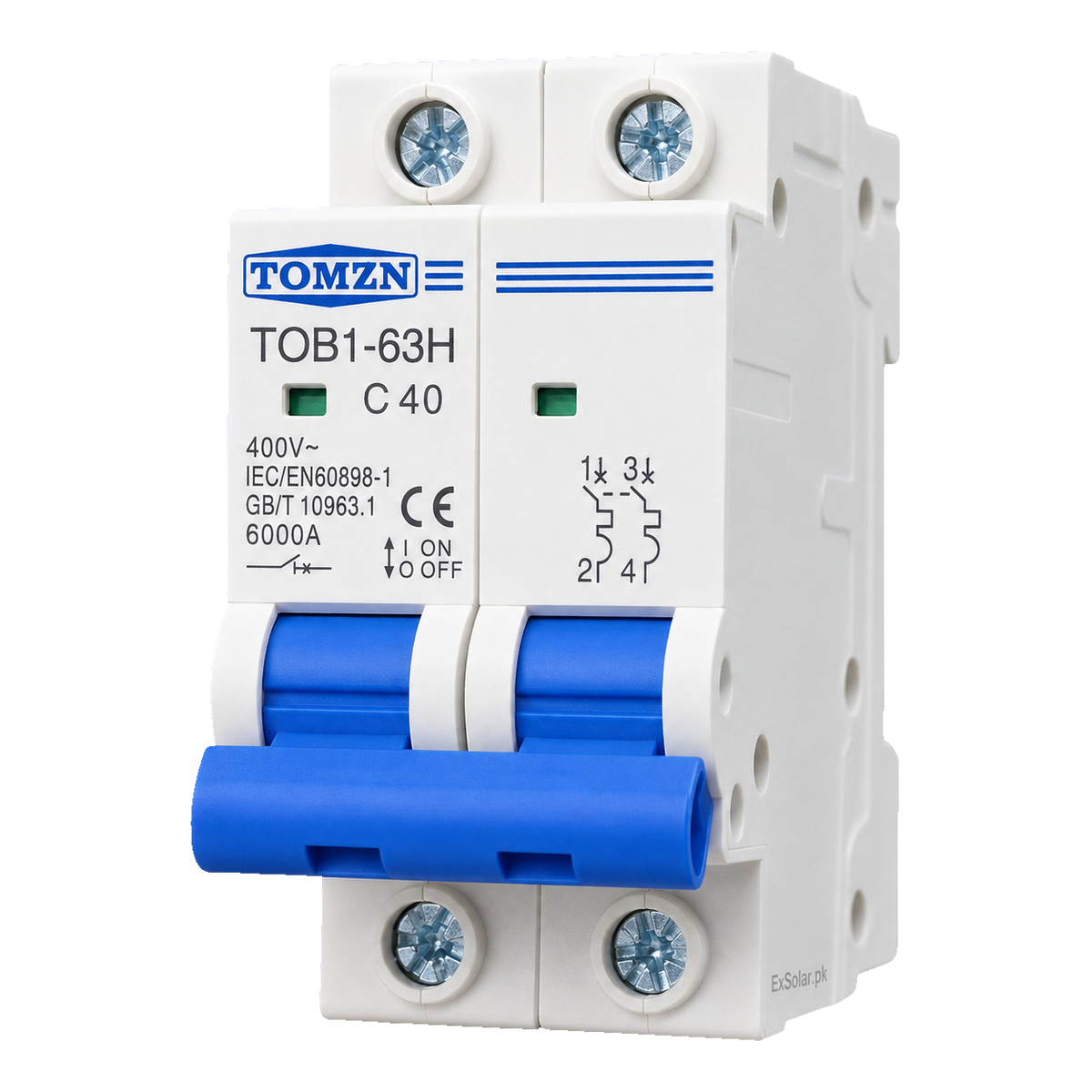

The TOMZN TOB1-63H C40 is a 40A, two-pole AC miniature circuit breaker with a C tripping curve. The attached unit is marked for 400V AC operation and 6kA breaking capacity, providing overload and short-circuit protection for suitable low-voltage distribution circuits.

Long Description

Protect AC distribution circuits with the compact TOMZN TOB1-63H C40 miniature circuit breaker. This two-pole C-curve model is rated at 40A and uses a mechanically linked handle so both poles operate together.

TOMZN positions the TOB1-63 series for lighting and motor distribution systems requiring overload and short-circuit protection. The manufacturer states that multipole variants are intended for AC 50/60Hz circuits up to 415V and that the enclosure components use high fire-resistant, shock-resistant plastic. The supplied product label identifies this exact C40 unit as 400V AC with a 6000A breaking capacity.

The breaker can also be used for infrequent switching of electrical equipment and lighting circuits within its rated conditions. Selection, coordination and installation must be completed by a qualified electrician according to the applicable wiring rules and the requirements of the connected circuit.

Key Features

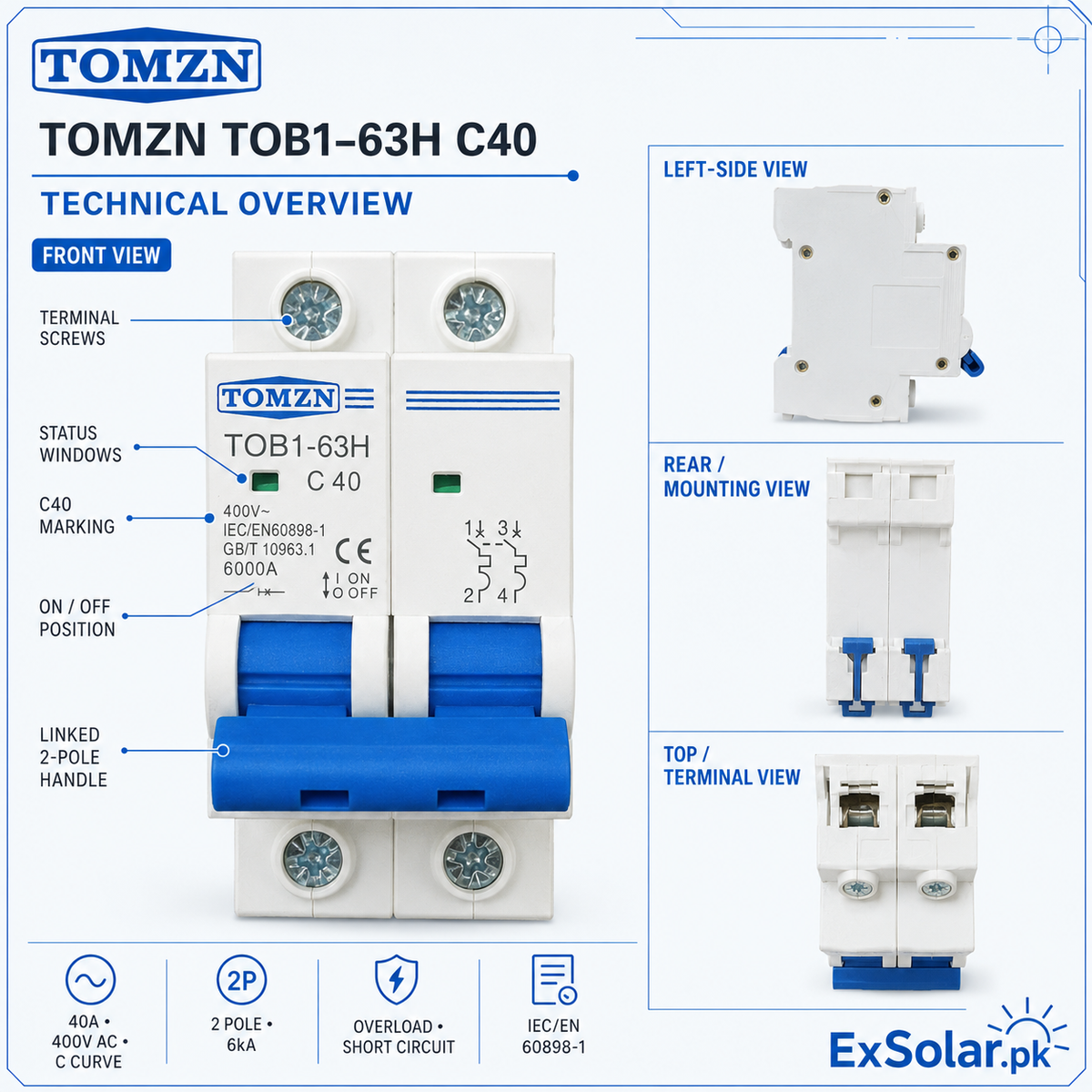

• Exact TOB1-63H C40 model marking

• 40A rated current

• Two-pole construction with linked operating handle

• C tripping characteristic

• 400V AC marking on the supplied unit

• 6kA / 6000A breaking-capacity marking

• Overload protection

• Short-circuit protection

• Two front status windows

• Four screw terminals for the two switched poles

• High fire-resistant and shock-resistant plastic construction stated by TOMZN

• Suitable series design for 50Hz/60Hz AC distribution systems

Technical Specifications

Applications

• Residential AC distribution boards

• Commercial low-voltage distribution panels

• Lighting distribution circuits

• Motor distribution circuits selected within the breaker rating

• Control panels and branch-circuit protection

• AC-side protection in compatible solar, backup and hybrid-system distribution

• Infrequent circuit switching under normal operating conditions

Box Contents

The exact retail package contents are not published on the official product page.

Protection Features

• Thermal overload protection

• Magnetic short-circuit protection

• Simultaneous operation of both poles through the linked handle

• Manual ON/OFF isolation function within the manufacturer's stated operating conditions

This model does not provide verified residual-current, earth-leakage, surge, overvoltage or undervoltage protection.

Certifications

Warranty

Official warranty period for the TOMZN TOB1-63H C40: Not Verified.
