TOMZN TOB7Z-63 32A 2P 1000V DC Solar MCB

Product Identification

Product Title

TOMZN TOB7Z-63 32A 2P 1000V DC Solar MCB

Short Description

The TOMZN TOB7Z-63 is a 32A, two-pole DC miniature circuit breaker intended for compatible photovoltaic DC circuits. The official TOMZN product page confirms the TOB7Z-63 series, 2P configuration, 1000V DC rating and availability of the 32A variant. Product-label markings show a 6kA breaking-capacity claim and IEC/EN 60947-2 reference; an official downloadable datasheet or certificate for those markings was not found.

Long Description

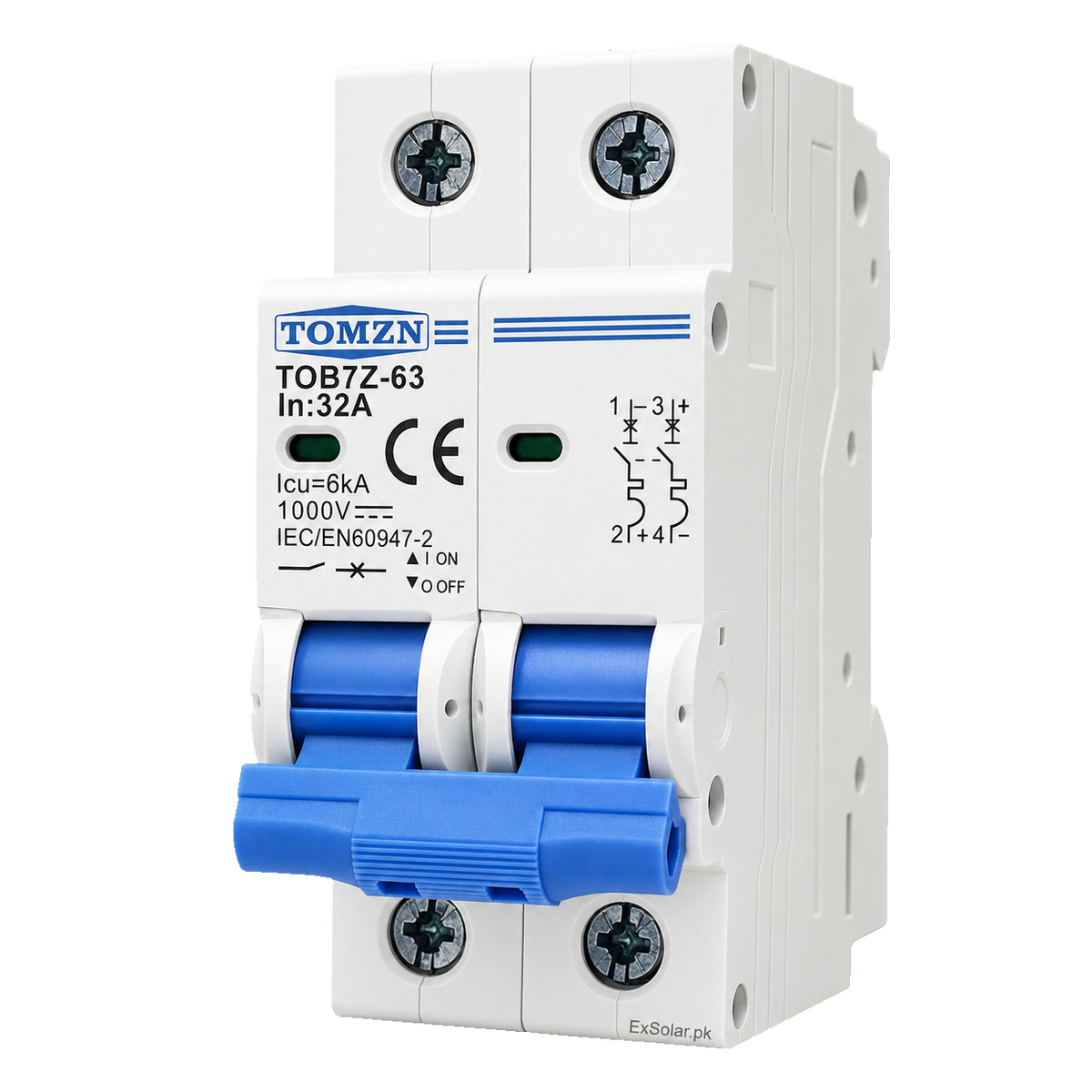

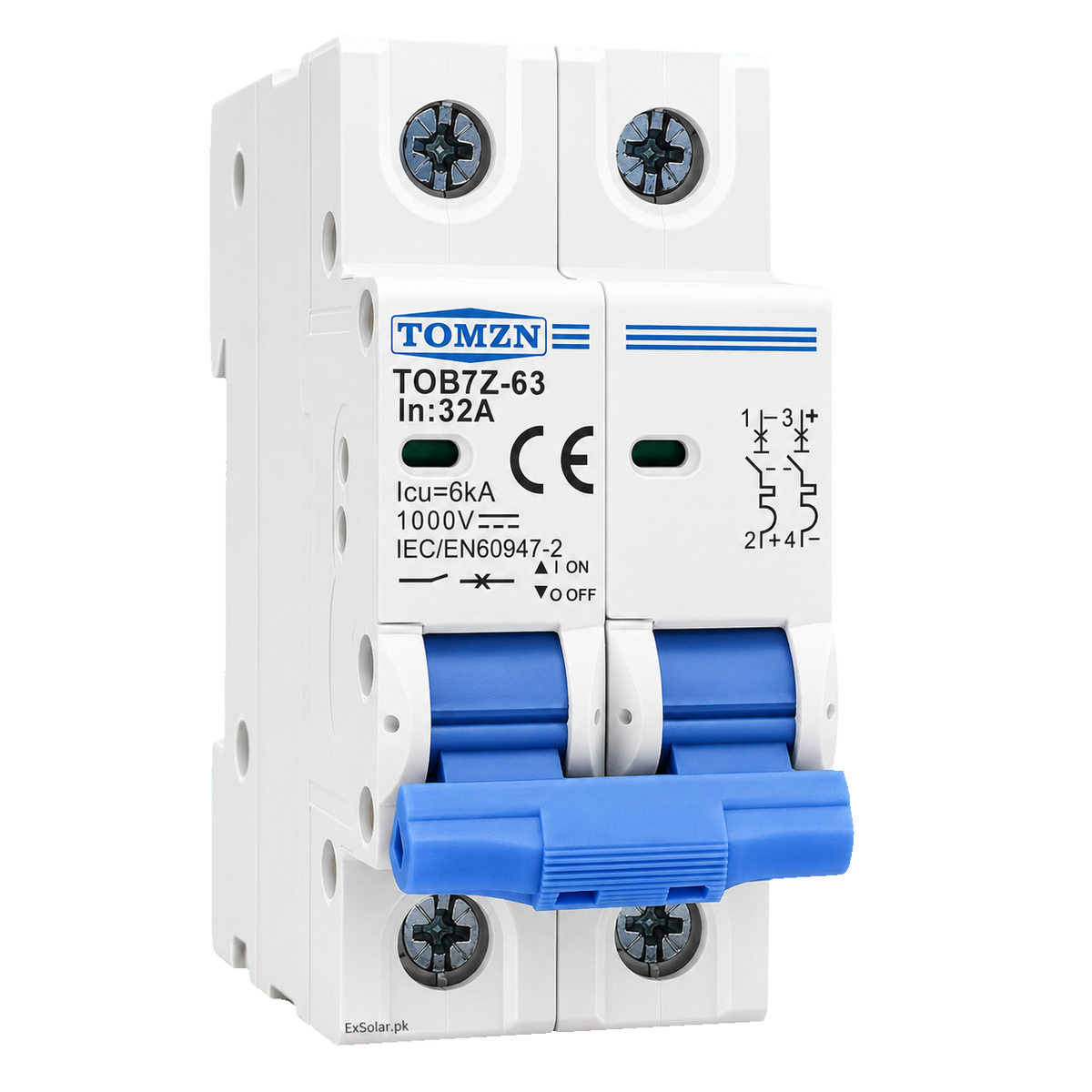

Designed for DC-side switching and circuit protection in suitably engineered solar installations, the TOMZN TOB7Z-63 combines a two-pole linked operating handle with polarity-marked terminals in a compact modular enclosure. This listing is for the 32A, 2P, DC 1000V version identified on TOMZN's official product page.

The breaker is suitable for use only where its voltage, current, polarity and system fault-current requirements have been checked by a qualified installer. The supplied reference image carries Icu 6kA, IEC/EN 60947-2 and CE markings; because TOMZN did not provide a downloadable official datasheet or certificate on the identified product page, these details are presented as product-label observations rather than independently certified claims.

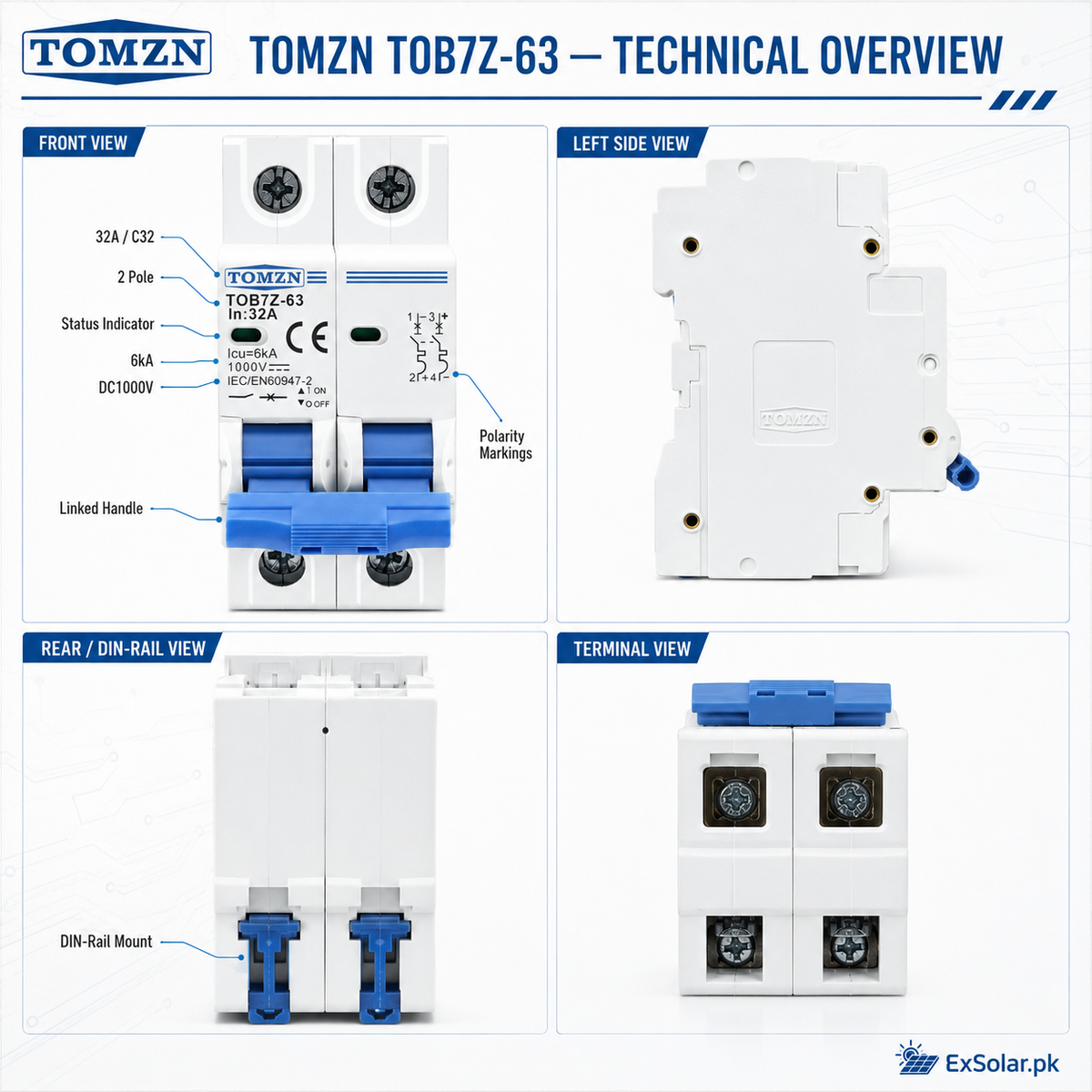

Key Features

• Officially identified TOMZN TOB7Z-63 series

• 32A current variant confirmed on the official product page

• Two-pole (2P) configuration confirmed by TOMZN

• DC 1000V product rating confirmed by TOMZN

• Intended for compatible photovoltaic DC systems

• Mechanically linked dual-pole operating handle

• Polarity markings visible for correct DC wiring orientation

• Two status-indicator windows visible on the product face

• 6kA breaking-capacity marking observed on the supplied product label

• IEC/EN 60947-2 reference observed on the supplied product label

• Compact modular form suitable for compatible distribution enclosures

• Manual ON/OFF switching for circuit isolation during servicing

Technical Specifications

Applications

• Residential solar PV DC distribution

• Commercial solar PV DC distribution

• PV string protection where the design requires a compatible 32A two-pole DC MCB

• Solar combiner boxes with compatible ratings

• DC-side isolation between PV circuits and compatible inverter equipment

• Other engineered DC circuits only after voltage, current, polarity and fault-current coordination

This breaker must not be selected solely by current rating. The complete DC system design, conductor rating, prospective fault current, polarity and isolation requirements must be verified by a qualified electrical professional.

Box Contents

• TOMZN TOB7Z-63 32A 2P DC miniature circuit breaker: expected primary item

• Mounting hardware: Not Verified

• Printed instructions: Not Verified

• Retail packaging contents: Not Verified

Protection Features

• Overcurrent protection function typical of an MCB; exact trip curve and time-current characteristics: Not Verified

• Short-circuit interruption; 6kA marking observed on the product label, official datasheet confirmation: Not Verified

• Simultaneous linked operation of both poles

• Manual ON/OFF isolation

• Polarity markings to support correct DC connection

• Indicator windows visible on both modules

• Reverse-polarity protection: Not Verified

• Surge protection: Not Verified

• Residual-current protection: Not Verified; this product is not presented as an RCCB/RCBO

Certifications and Standards

Warranty

Official warranty period and warranty terms: Not Verified.
