Product Identification

This product is an MCB, not an RCBO. The supplied unit has no residual-current test button or 30mA leakage marking.

Short Description

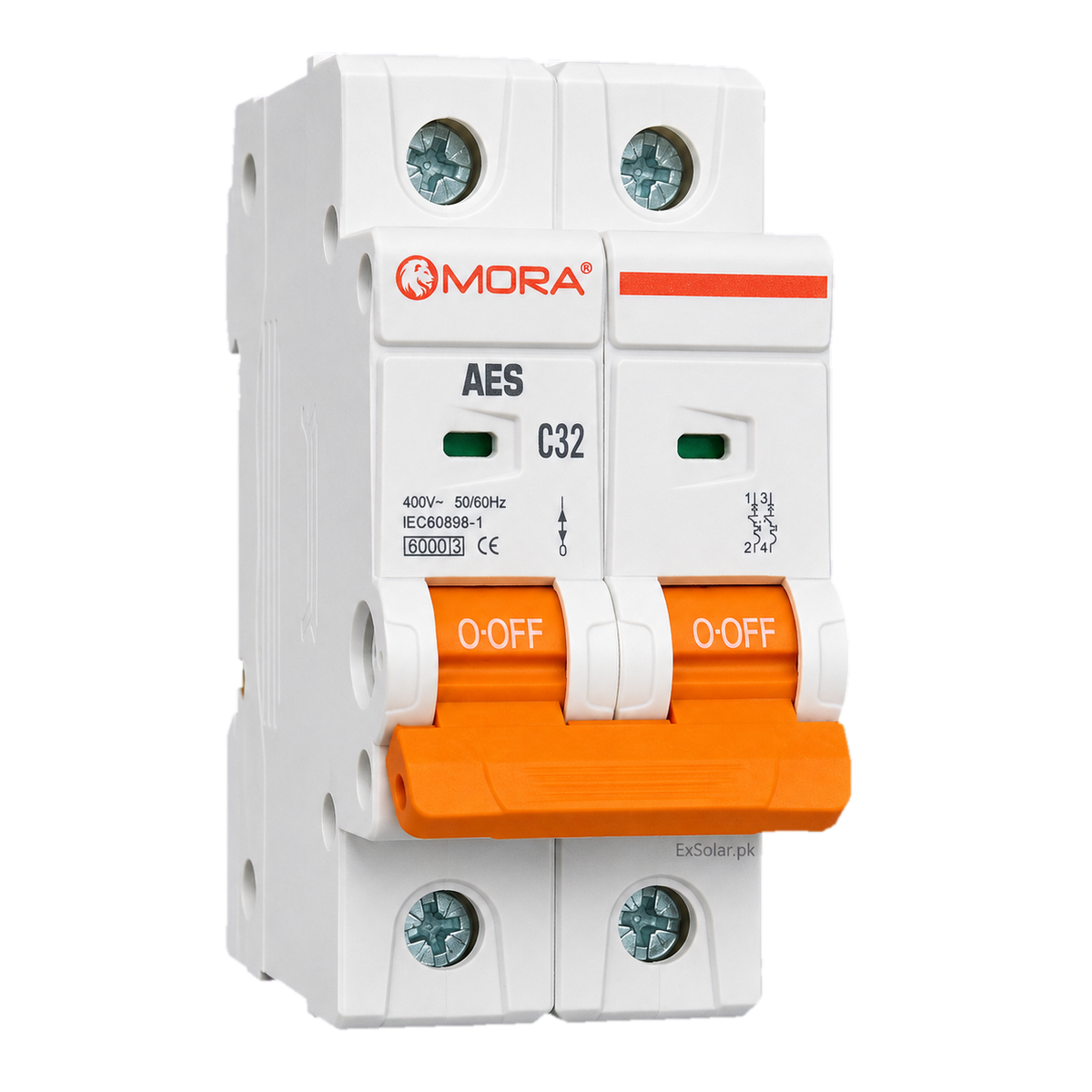

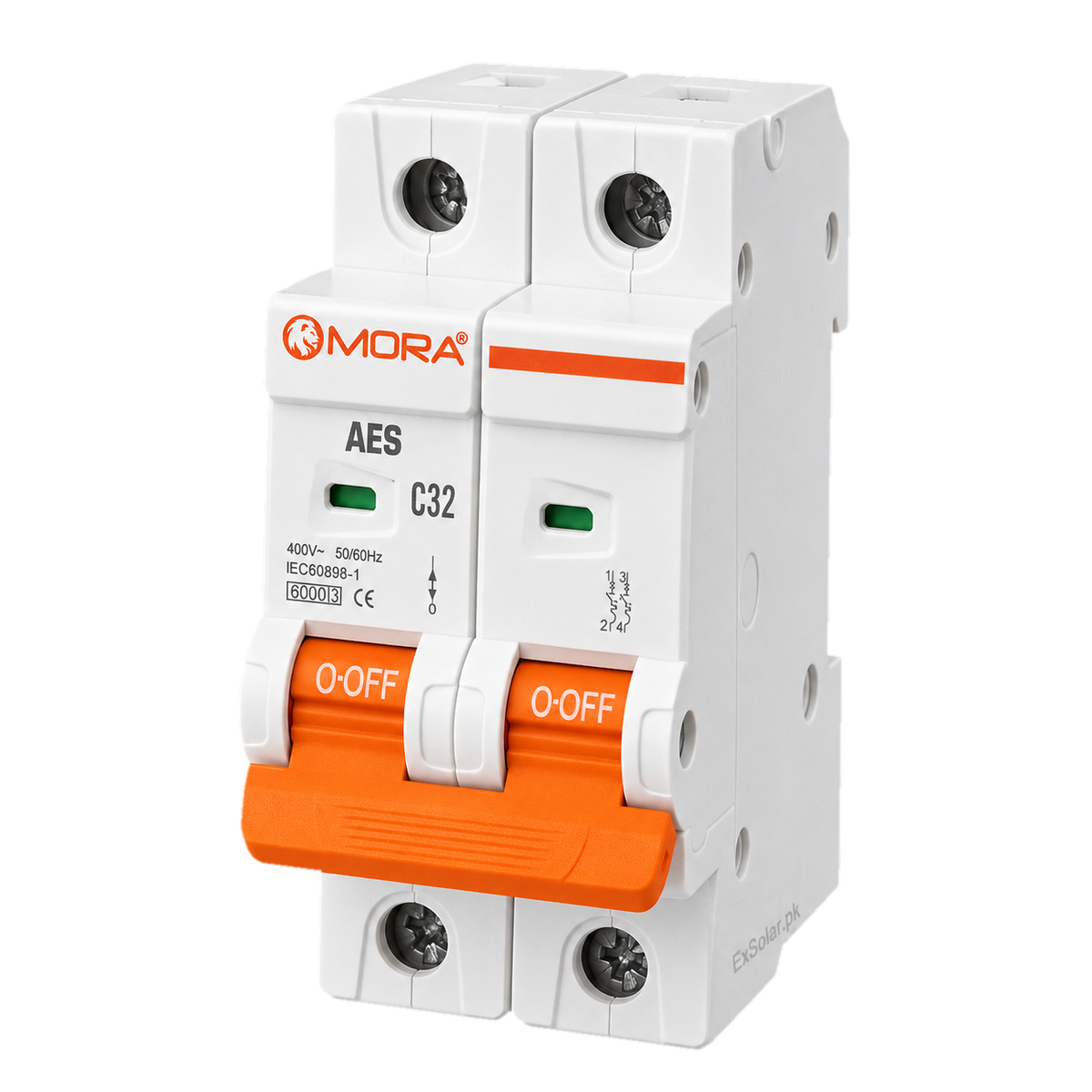

The MORA AES C32 is a 32A, two-pole AC miniature circuit breaker designed for overload and short-circuit protection. The supplied unit is marked for 400V AC, 50/60Hz operation, 6kA breaking capacity and IEC 60898-1, with a linked orange operating handle and dual status windows.

Long Description

The MORA AES C32 provides compact two-pole overcurrent protection for appropriately designed AC distribution circuits. Its C32 marking identifies a C tripping curve and 32A rated current, while the linked operating handle switches both poles together.

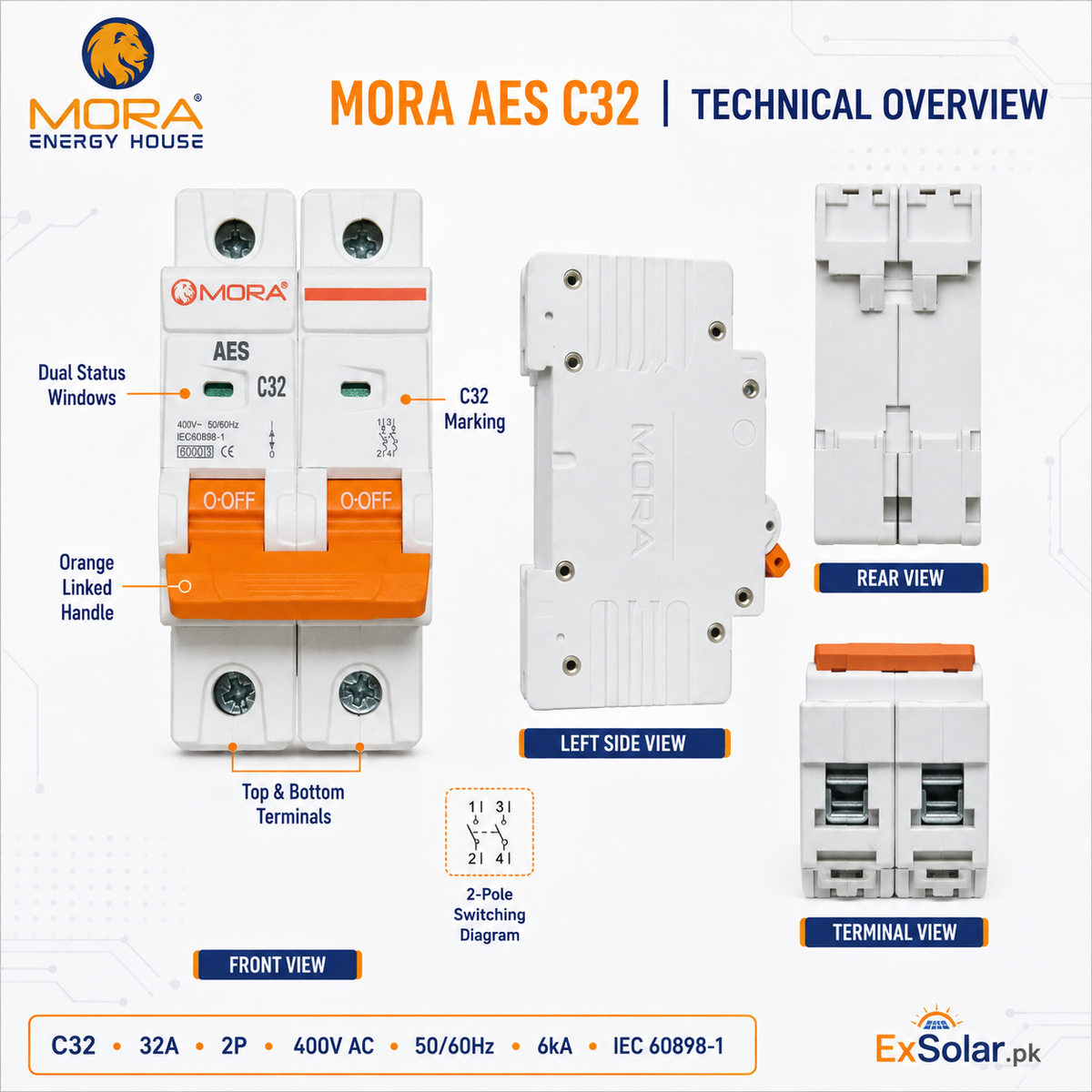

The supplied breaker is marked for 400V AC at 50/60Hz, a 6000A short-circuit breaking capacity and IEC 60898-1. Two green status windows support quick visual inspection, while the orange linked handle provides clear manual ON/OFF operation.

This MCB is intended for correctly engineered AC circuits requiring overload and short-circuit protection. It does not provide residual-current or earth-leakage protection. Product selection, protective coordination, wiring and installation must be completed by a qualified electrician in accordance with local electrical regulations.

Key Features

• Two-pole AC miniature circuit breaker

• 32A rated current identified by the C32 marking

• C tripping curve

• Linked operation of both poles

• 400V AC rated voltage marked on the product

• 50/60Hz rated frequency

• 6000A / 6kA short-circuit breaking capacity

• IEC 60898-1 standard marking

• Overload-current protection

• Short-circuit-current protection

• Two green status windows

• High-visibility orange linked operating handle

Technical Specifications

Applications

• Overload protection for suitably rated AC branch circuits

• Short-circuit protection for suitably rated AC branch circuits

• Two-pole switching in compatible AC distribution panels

• Residential or commercial AC distribution where the electrical design and local code permit

• AC-side protection in a suitably engineered power or solar installation

Circuit compatibility, cable size, prospective fault current and protective coordination must be confirmed by a qualified electrician. This is not a DC/PV breaker and does not replace an RCCB or RCBO where leakage protection is required.

Box Contents

• 1 × MORA AES C32 32A 2P MCB unit

• Retail packaging, printed manual and additional accessories: Not Verified

Protection Features

• Overload-current protection

• Short-circuit-current protection

• Simultaneous linked operation of two poles

Not included or not verified: earth-leakage protection, residual-current protection, surge protection, over/under-voltage protection and arc-fault protection.

Certifications and Standards

Warranty

Not Verified. The official MORA Pakistan website mentions warranty and after-sales support but does not publish a model-specific warranty duration for this AES C32 breaker. Its published 7-day return policy is not presented as the product warranty. Confirm the applicable ExSolar.pk or manufacturer warranty before listing a duration.
