MORA AES-60H C63 63A 2-Pole 400V AC Circuit Breaker

Product Identification

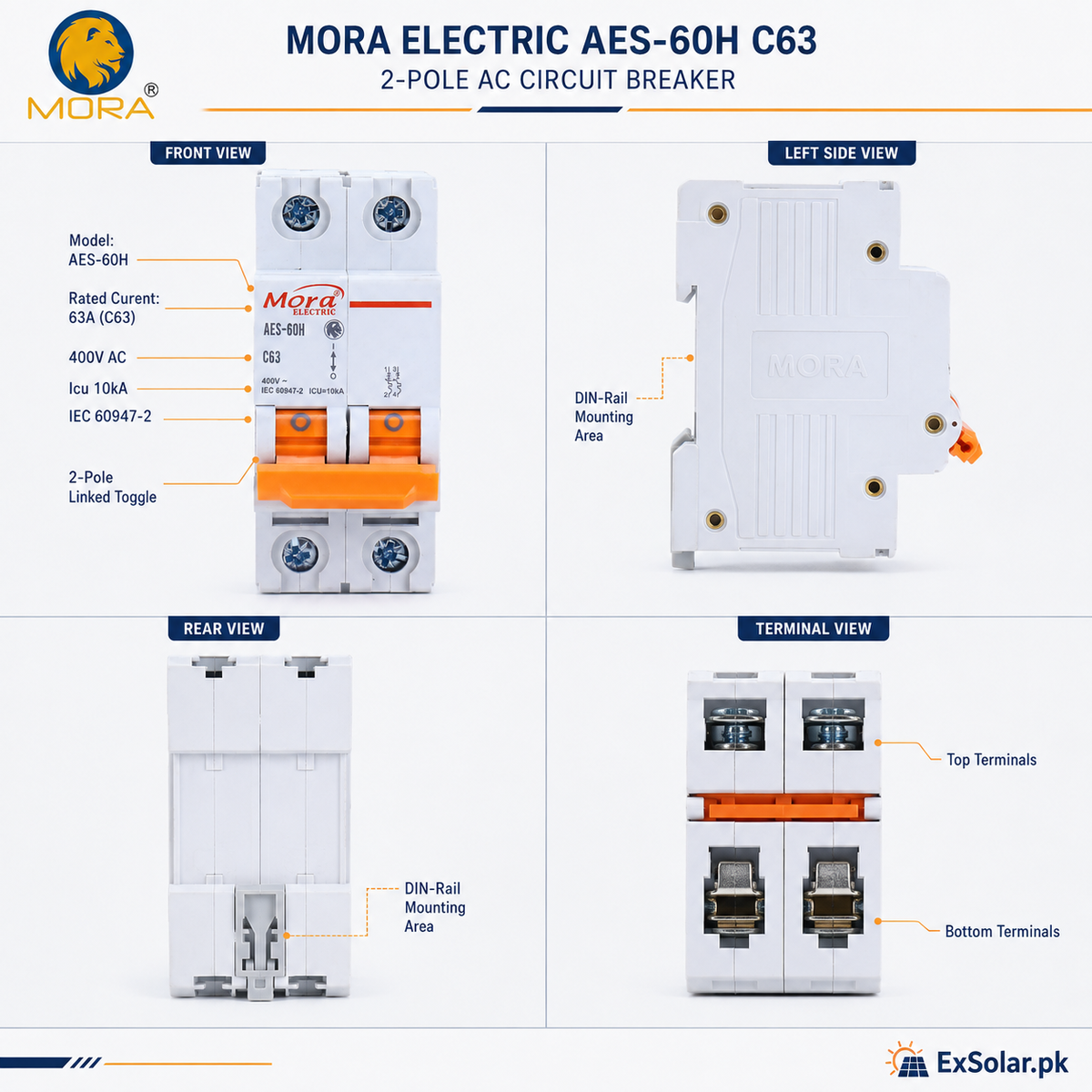

Identification is based on the supplied product image. The front label clearly shows MORA Electric, AES-60H, C63, 400V~, IEC 60947-2 and Icu=10kA. An official model-specific product page, datasheet or manual was not publicly verifiable.

Short Description

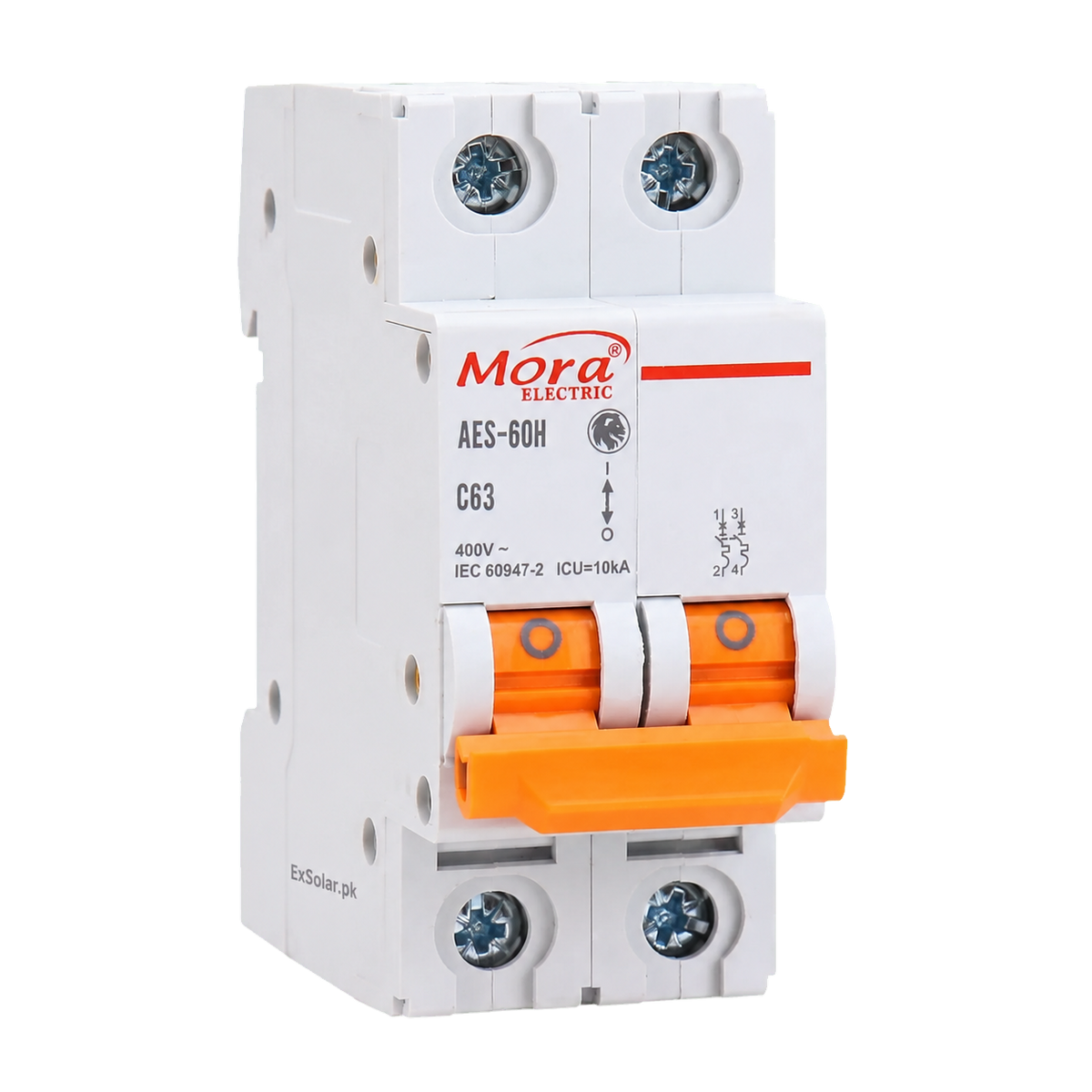

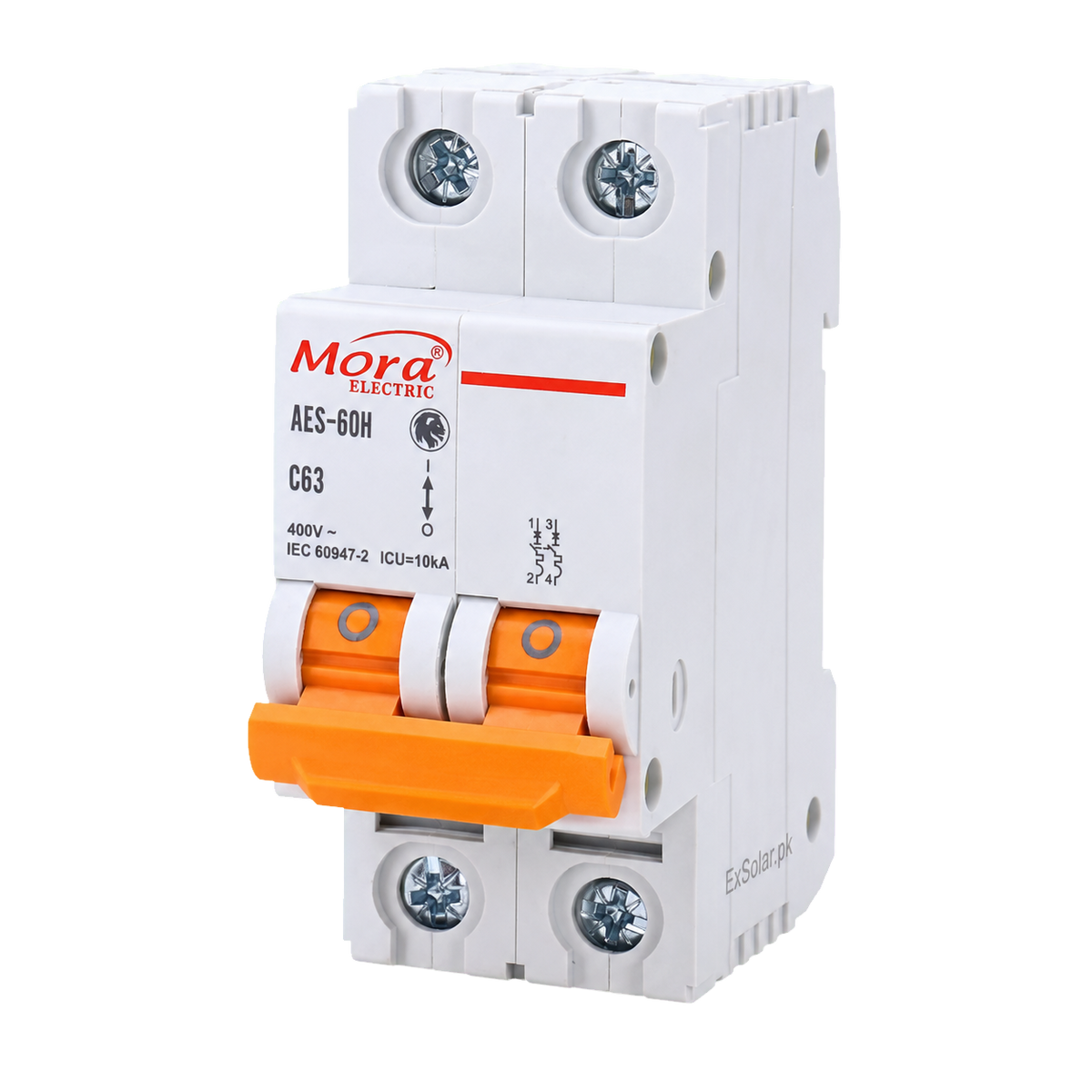

The MORA AES-60H C63 is a 63A, 2-pole AC circuit breaker marked for 400V AC operation, IEC 60947-2 and a 10kA ultimate short-circuit breaking capacity. Its compact two-module design features a mechanically linked orange operating handle and screw-terminal connections.

Long Description

The MORA Electric AES-60H C63 is a compact two-pole circuit breaker intended for installation in compatible low-voltage AC distribution equipment. The supplied unit is marked C63 and 400V~, with IEC 60947-2 and Icu=10kA printed on its front label.

Its mechanically linked double handle allows both poles to be operated together, while the four screw-terminal positions support a conventional two-pole wiring arrangement. The breaker should be selected and installed by a qualified electrician after confirming the system voltage, prospective fault current, conductor size, enclosure, installation conditions and applicable local regulations.

This product must not be described or used as an earth-leakage breaker, surge protector or DC breaker unless separate official documentation confirms those functions. It is intended for AC-side applications only based on the supplied 400V~ marking.

Key Features

• 63A current marking (C63)

• Two-pole construction

• Mechanically linked double operating handle

• 400V AC front-label marking

• Icu 10kA front-label marking

• IEC 60947-2 standard marking

• AES-60H model identification

• Compact two-module form factor

• Four screw-terminal positions

• Clear ON/OFF operating symbols

• White molded housing with high-visibility orange handle

• Suitable for compatible AC distribution-panel applications

Technical Specifications

Applications

• Residential AC distribution boards, subject to professional system design

• Commercial AC distribution panels

• Light-industrial AC circuits

• Two-pole AC circuit switching and isolation

• AC-side distribution in solar or hybrid installations

• Generator and backup-system AC distribution, subject to correct coordination

Important: Do not install this unit in a DC circuit. Application suitability, cable size, fault level and protective coordination must be confirmed by a qualified electrician.

Box Contents

• 1 × MORA Electric AES-60H C63 63A 2P AC circuit breaker

• Printed manual: Not Verified

• Mounting accessories: Not Verified

• DIN rail, cables, lugs and enclosure: Not Verified / not shown

Protection Features

Certifications

Warranty

Official warranty duration and Pakistan claim procedure: Not Verified.
