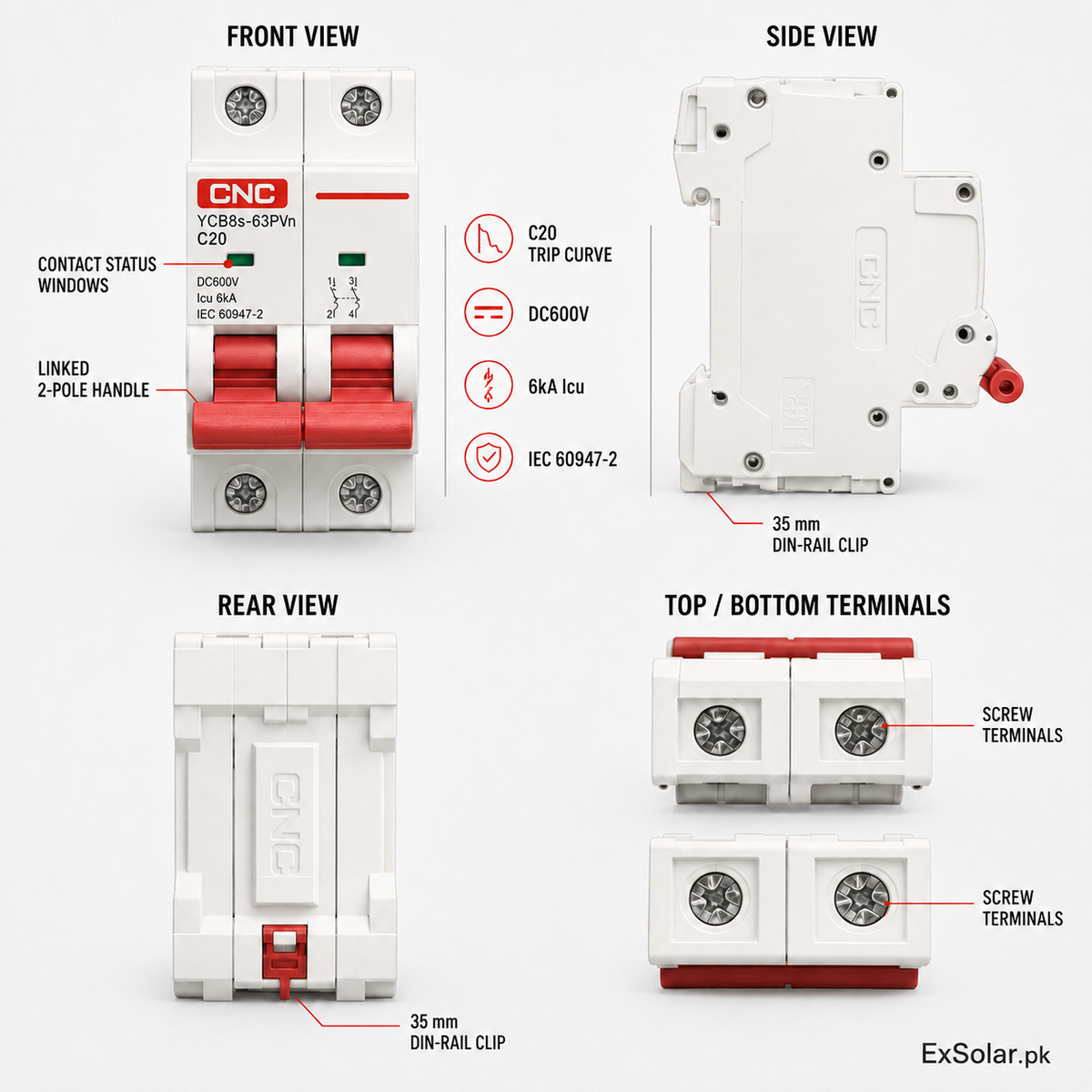

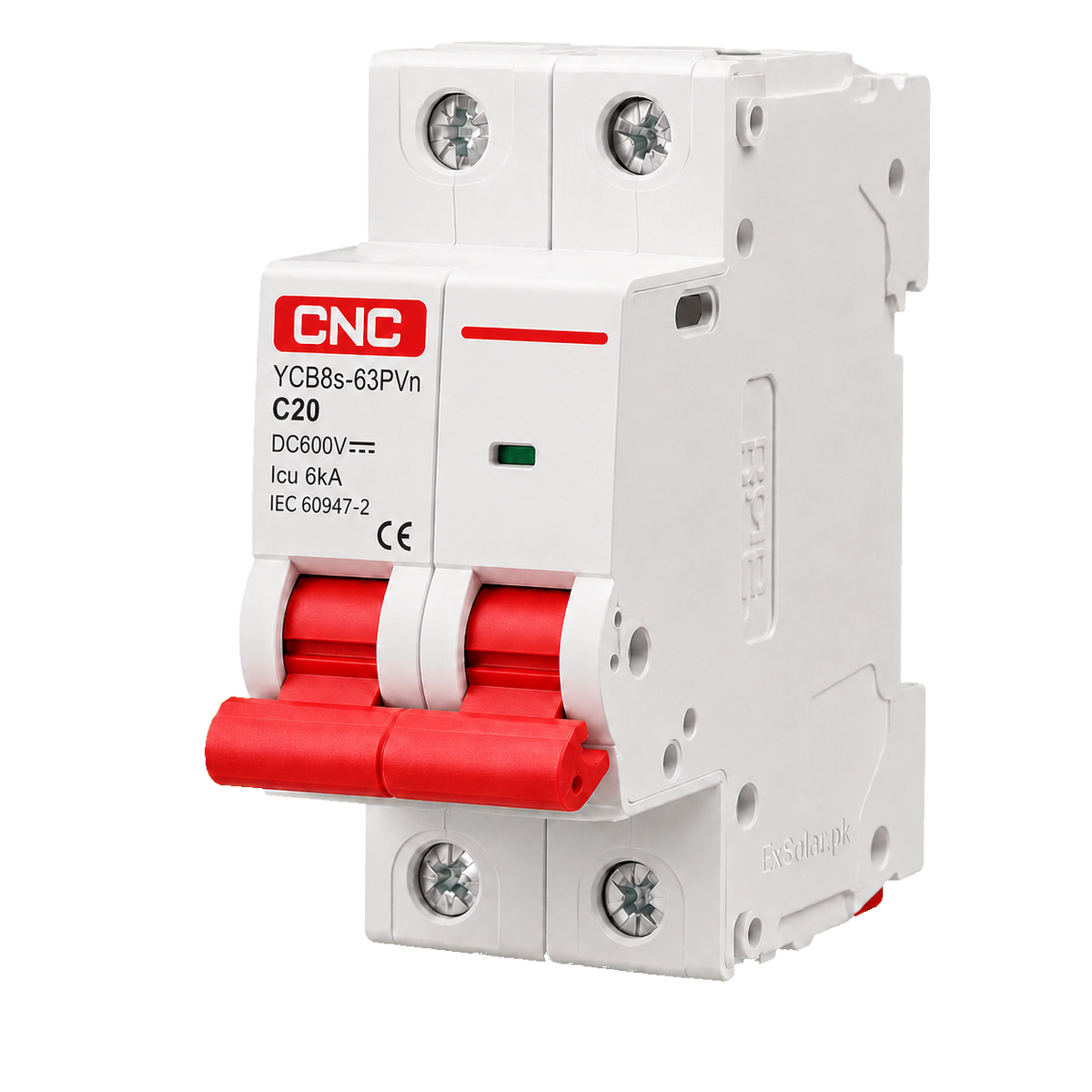

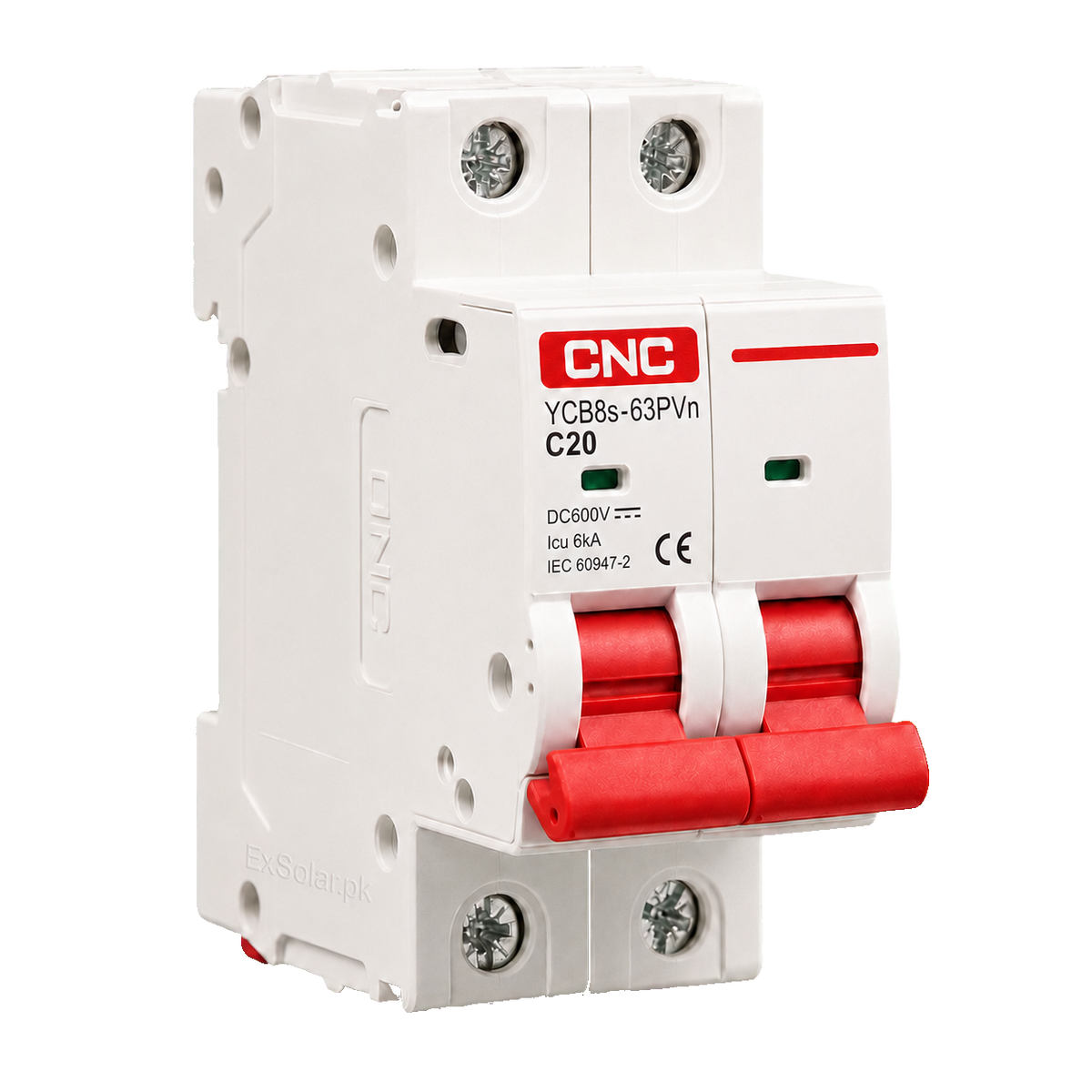

CNC YCB8s-63PVn C20 20A 2P 600V DC Solar MCB

Product Identification

Product Title

CNC YCB8s-63PVn C20 20A 2P 600V DC Solar MCB

Short Description

The CNC YCB8s-63PVn C20 is a 20A, two-pole photovoltaic DC miniature circuit breaker designed for overload and short-circuit protection in solar DC distribution systems. This non-polar model is rated for DC600V operation and offers a standard 6kA ultimate short-circuit breaking capacity in a compact DIN-rail format.

Long Description

Protect critical solar DC circuits with the CNC YCB8s-63PVn C20 photovoltaic miniature circuit breaker. Engineered specifically for DC applications, this 20A two-pole breaker simultaneously disconnects both conductors and supports non-polar wiring, allowing supply connection from either the upper or lower terminals.

The breaker combines overload and short-circuit protection with manual circuit isolation. Its C-curve tripping characteristic suits correctly engineered DC circuits where controlled tolerance of normal transient current is required. The verified 2P configuration operates at up to DC600V, carries an IP20 protection rating and conforms to IEC 60947-2.

For safe selection, the breaker rating must be coordinated with the PV string, cable size, system voltage, prospective fault current and equipment manufacturer requirements. Installation should be completed by a qualified electrical professional.

Key Features

• 20A rated current in the C20 configuration

• Two-pole switching for simultaneous DC conductor isolation

• DC600V rated operating voltage for the verified 2P version

• Non-polarity design for flexible DC wiring

• Standard 6kA ultimate short-circuit breaking capacity

• C-curve instantaneous tripping characteristic

• Overload and short-circuit circuit protection

• Manual isolation for maintenance and emergency disconnection

• IEC 60947-2 compliant photovoltaic DC breaker design

• IP20 protection degree

• Up to 25mm² conductor wiring capacity

• Rated mechanical life of 20,000 operating cycles

Technical Specifications

Applications

• Solar photovoltaic string circuits

• PV combiner and DC distribution boxes

• DC-side protection upstream of compatible solar inverters

• Commercial and residential photovoltaic systems

• General DC distribution within the verified voltage and fault-current limits

• Battery-energy-storage DC circuits only where the complete system design and protection coordination permit this breaker

Box Contents

Not Verified. The official product page and catalogue do not confirm retail package contents for this exact variant.

Protection Features

• Overload protection

• Short-circuit protection

• Manual DC isolation

• Simultaneous two-pole disconnection

• Standard 6kA ultimate short-circuit interruption

• IP20 protection against accidental contact with internal live parts under the applicable test conditions

Certifications and Compliance

Warranty

CNC's official warranty policy lists a 24-month warranty period from the date of manufacture for low-voltage apparatus. Contract-specific terms may supersede the general policy. Local Pakistan reseller warranty and claim procedure: Not Verified.
