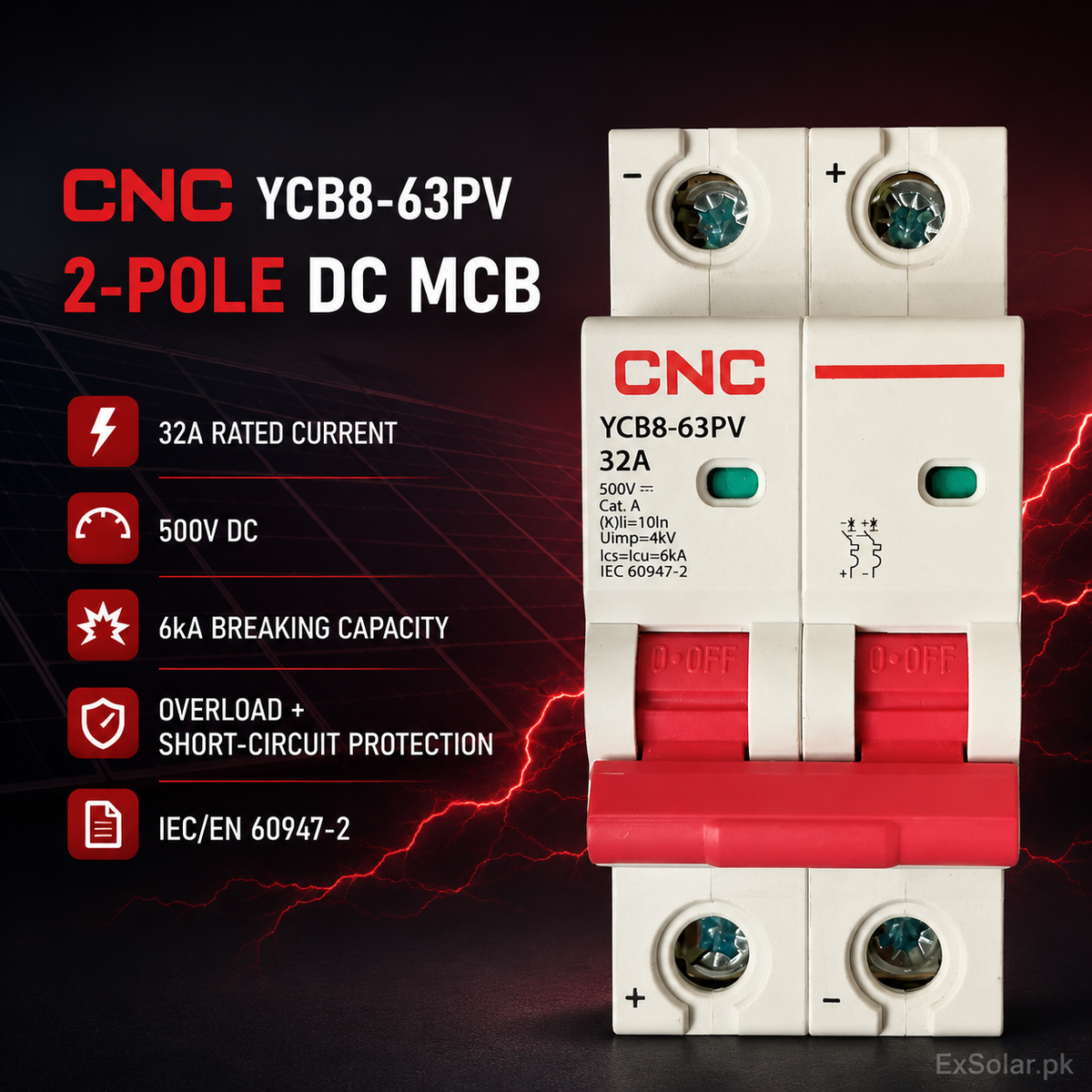

CNC YCB8-63PV 2-Pole 32A 500V DC Solar MCB Breaker
Rs.1,750.00
Rs.2,250.00
-22%
Product Identification Field Verified Result Brand CNC Electric Model YCB8-63PV Configuration 2P, 32A, 500VDC Category DC Protection Device Product Type Solar Accessory Series YCB8-63PV Polarity Polarity-sensitive/heteropolarity Product Title CNC YCB8-63PV 2-Pole 32A 500V DC Solar MCB Breaker Short Description The CNC YCB8-63PV is a...
Limited-time offer
Secure today's product price
00
Hours
:
00
Mins
:
00
Secs
ā
High efficiency performance
ā
Advanced protection
ā
Reliable long service life
ā
Professional solar compatibility
Fast Delivery
Delivery availability across Pakistan
Secure Shopping
Safe and protected ordering
Expert Support
Professional product assistance
Premium Solar Technology
Genuine Product
Secure Shopping
Nationwide Delivery
Expert Support
Complete product information
Everything You Need to Know
Clear product details, technical specifications, warranty information and professional installation guidance.
Product overview
01
CNC YCB8-63PV 2-Pole 32A 500V DC Solar MCB Breaker
Product Identification
| Field | Verified Result |
|---|---|
| Brand | CNC Electric |
| Model | YCB8-63PV |
| Configuration | 2P, 32A, 500VDC |
| Category | DC Protection Device |
| Product Type | Solar Accessory |
| Series | YCB8-63PV |
| Polarity | Polarity-sensitive/heteropolarity |
Product Title
CNC YCB8-63PV 2-Pole 32A 500V DC Solar MCB Breaker
Short Description
The CNC YCB8-63PV is a two-pole, 32A photovoltaic DC miniature circuit breaker rated for 500VDC. It provides overload, short-circuit and isolation protection with 6kA breaking capacity, thermomagnetic tripping and DIN-rail installation.
Long Description
Protect compatible photovoltaic and DC circuits with the CNC YCB8-63PV 2P 32A miniature circuit breaker. Its two-pole configuration is rated for 500VDC and combines overload, short-circuit and isolation functions.

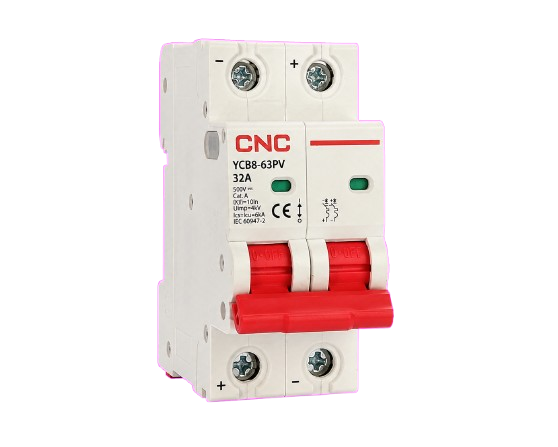

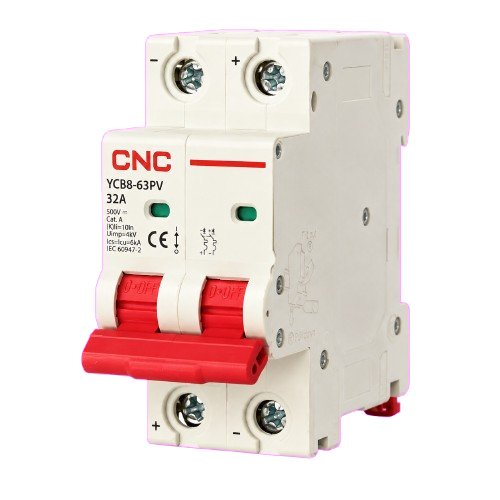

The pictured breaker carries a K-characteristic/10ĆIn marking and features a linked two-pole handle, green status windows, polarity markings and standard DIN35 mounting. Installation must follow the official wiring diagram, marked polarity, conductor requirements and applicable electrical regulations.
Key Features
- Exact 2-pole, 32A configuration
- 500VDC rated working voltage
- 6kA ultimate breaking capacity
- Ics equal to 100% of Icu
- Thermomagnetic operation
- K characteristic/10ĆIn product marking
- Overload protection
- Short-circuit protection
- DC circuit isolation
- 1200VDC insulation voltage
- 4kV impulse withstand voltage
- DIN35 rail mounting
Technical Specifications
| Specification | Official Value |
|---|---|
| Rated Current | 32A |
| Number of Poles | 2P |
| Rated Working Voltage | 500VDC |
| Frame Current | 63A |
| Tripping Type | Thermomagnetic |
| Pictured Trip Characteristic | K, Ii = 10ĆIn |
| Series Curve Options | B, C and K |
| Insulation Voltage Ui | 1200VDC |
| Impulse Voltage Uimp | 4kV |
| Ultimate Breaking Capacity Icu | 6kA |
| Operating Breaking Capacity Ics | 100% of Icu |
| Mechanical Life | 20,000 operations |
| Electrical Life | 1,500 operations in technical documentation* |
| Installation | DIN35/TH35-7.5 rail |
| Wiring Capacity | 2.5ā25mmĀ² |
| Listed Conductor for 32A | 6mmĀ² copper |
| Terminal Torque | 3.5NĀ·m |
| Protection Rating | IP20 |
| Altitude | Up to 2,000m; derating above |
| Installation Category | II/III |

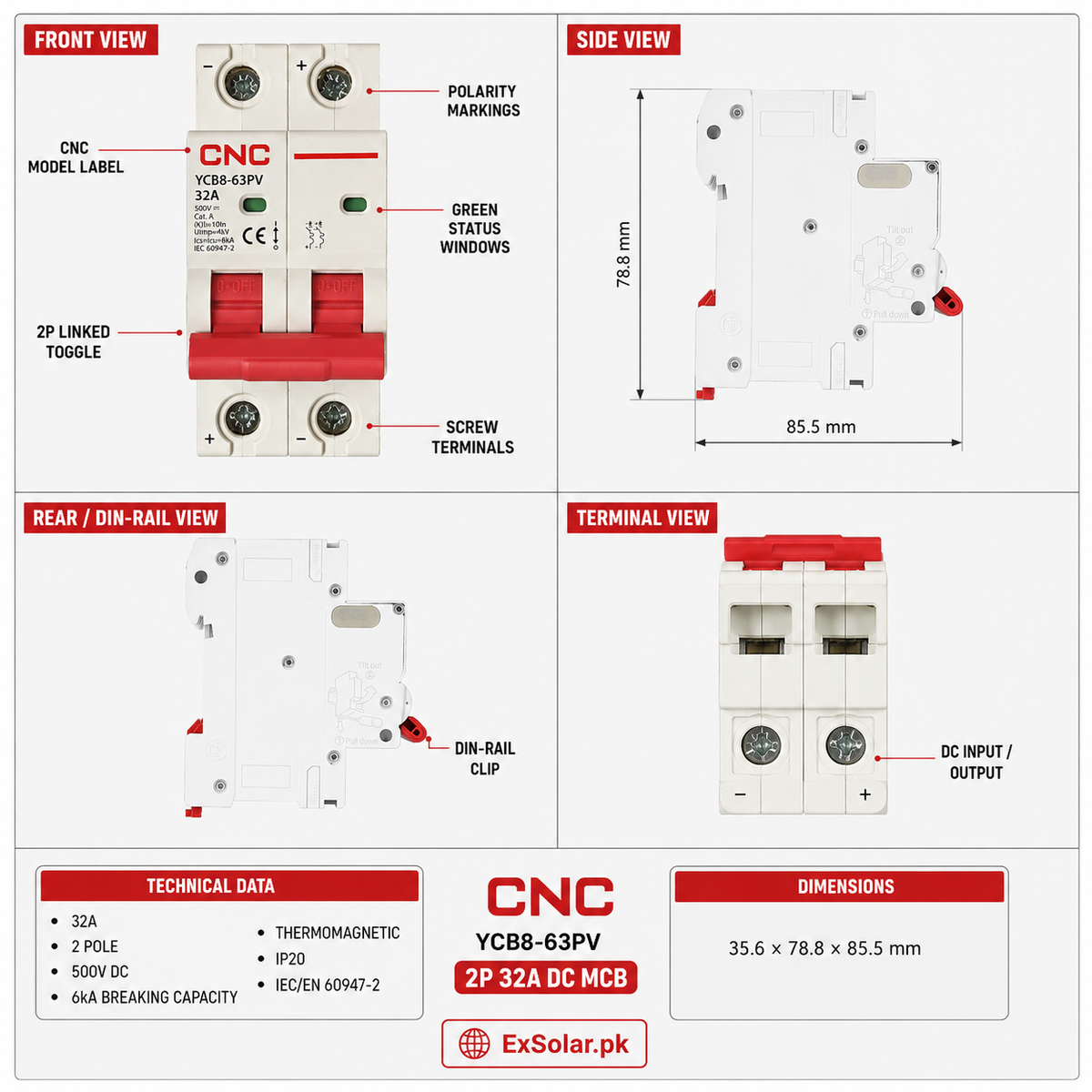

| Dimensions | 35.6 Ć 78.8 Ć 85.5mm |
| Weight | Not Verified |
| Warranty | Not Verified |
*An official marketing statement mentions 10,000 electrical operations, while the technical table and manual specify 1,500. Confirm the documentation revision supplied with the unit.
Applications
- Solar PV protection boards
- PV combiner and distribution boxes
- Inverter-side DC protection
- Residential and commercial solar systems
- Industrial DC distribution
- Communication DC systems
- DC circuit isolation within verified ratings
Box Contents
- CNC YCB8-63PV 2P 32A breaker Ć1
- Printed instructions/accessories: Not Verified
- Retail packaging contents: Not Verified
Protection Features
- Overload protection
- Short-circuit protection
- DC isolation
- Thermomagnetic tripping
- Linked two-pole switching
- 6kA fault-current interruption
- Status indication windows
- Polarity markings
Certifications and Compliance
- IEC/EN 60947-2
- EU RoHS environmental requirements
- CE marking visible on the product; exact certificate URL Not Verified
Verified using the official CNC product page, official catalogue and official operation manual.
Warranty
Not Verified. The reviewed official documents do not state a commercial warranty period for the exact 2P 32A configuration.
