Product Identification

This product is an MCB, not an RCBO. It provides overload, short-circuit and isolation functions but does not provide residual-current or earth-leakage protection.

Short Description

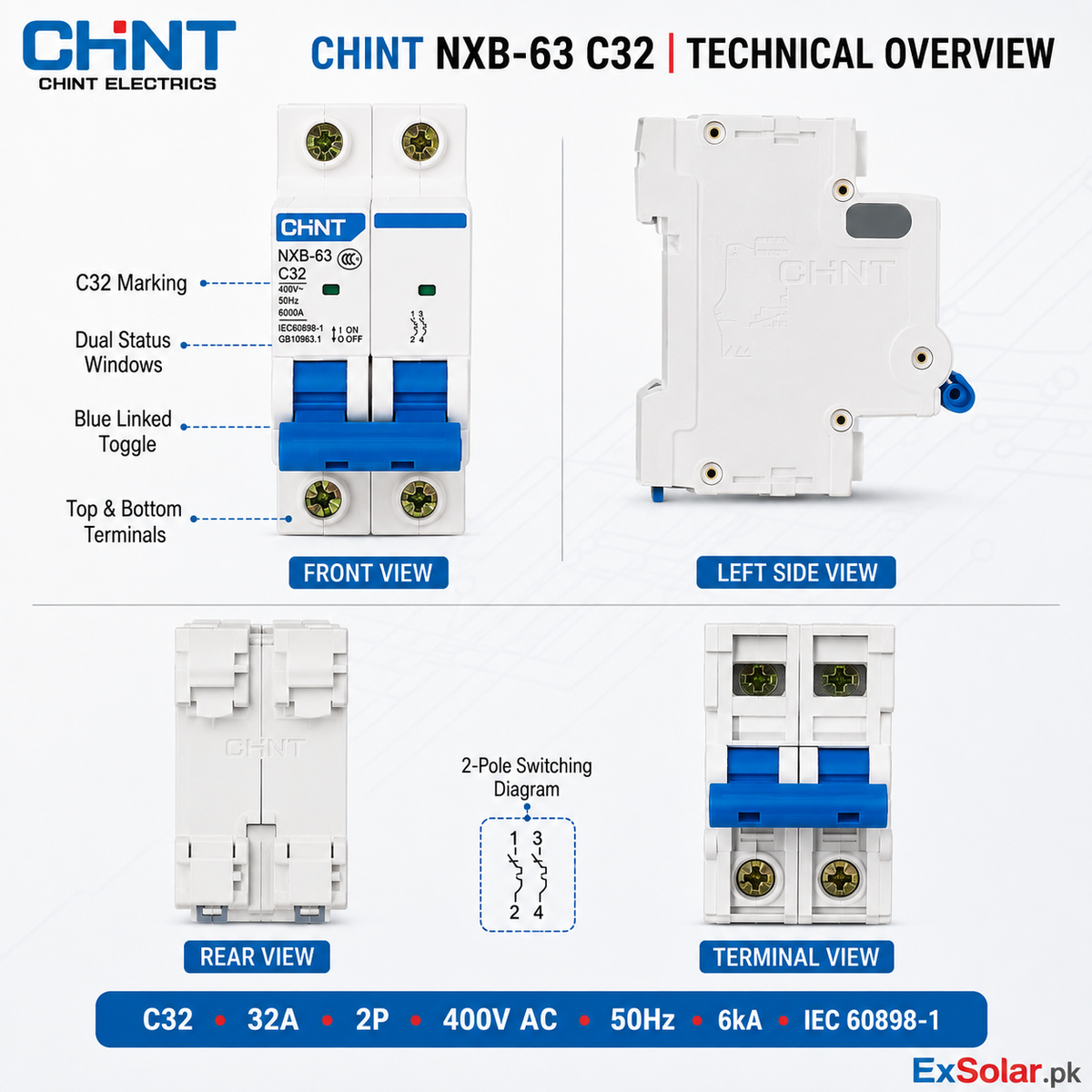

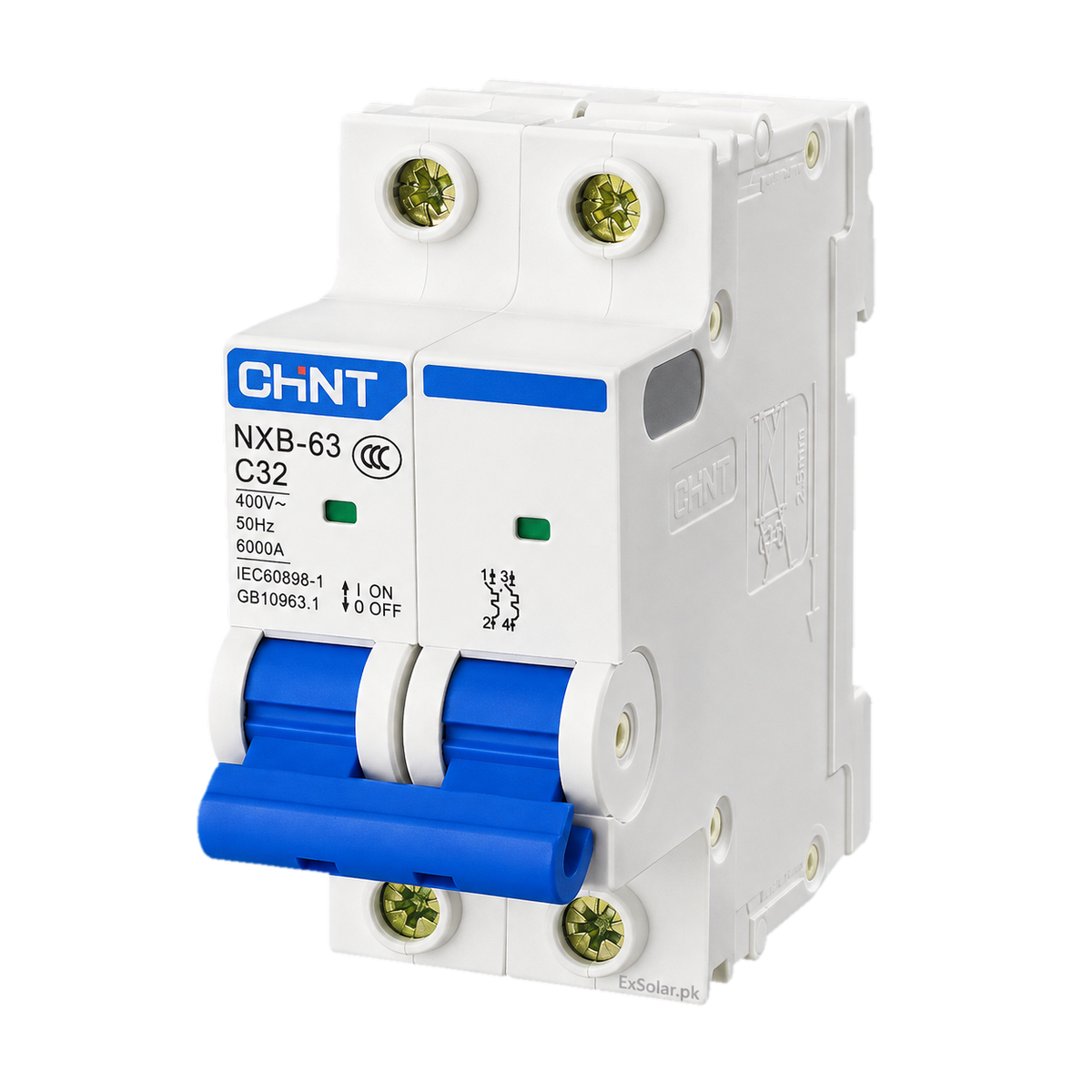

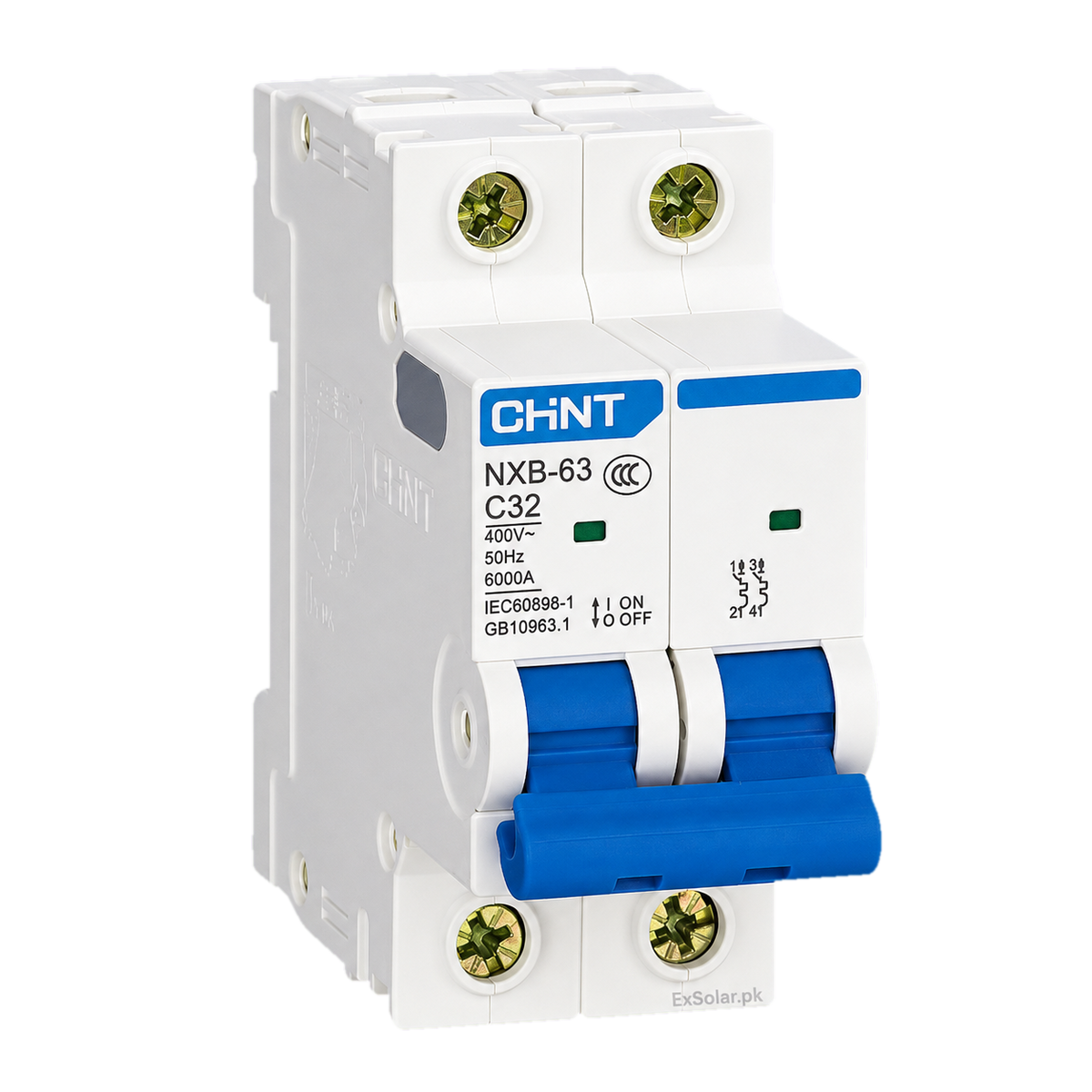

The CHINT NXB-63 C32 is a 32A, two-pole thermal-magnetic AC miniature circuit breaker for overload, short-circuit and positive-isolation protection. This variant is marked for 400V AC, 50Hz operation and 6kA breaking capacity, with a C tripping curve, linked blue handle and clear contact-status indicators.

Long Description

Designed for dependable final power distribution, the CHINT NXB-63 C32 combines compact modular construction with precise thermal-magnetic protection. Its C32 rating is suited to compatible mixed and moderately inductive circuits where normal inrush current requires a C-curve response.

The two-pole mechanism switches both poles together and the front indicator windows provide a clear operating-state reference: CHINT identifies red as ON and green as OFF. This supplied variant carries 400V AC, 50Hz, 6000A, IEC 60898-1 and GB/T 10963.1 markings.

CHINT’s official NXB-63 documentation specifies TH35-7.5 DIN-rail mounting, top or bottom cable entry, 2.0N·m terminal torque, a 500V insulation rating, 4kV impulse withstand voltage and long mechanical and electrical operating life. Installation and protective coordination must be completed by a qualified electrician in accordance with local regulations and the official manual.

Key Features

• 32A two-pole AC miniature circuit breaker

• C tripping curve with 5–10 × In instantaneous operating range

• Thermal-magnetic overload and short-circuit protection

• Positive-isolation function

• 400V AC rating marked on the supplied unit

• 6000A / 6kA short-circuit breaking capacity

• Linked two-pole blue operating handle

• Red/green contact-position indication

• TH35-7.5 DIN-rail mounting

• Top or bottom cable entry

• 20,000-operation mechanical life

• IEC/EN 60898-1 compliant NXB-63 series

Technical Specifications

Applications

• Residential final distribution circuits

• Commercial electrical distribution

• Light-industrial final power distribution

• Lighting and socket branch circuits where a C32 rating is correctly coordinated

• Compatible appliance and moderately inductive circuits

• AC-side protection in a suitably engineered power or solar installation

• Manual circuit isolation during maintenance

The official manual states that the product is not suitable for directly starting high-inductive or high-capacity loads such as fans, motors, electric-heating equipment and capacitor cabinets. Circuit suitability, cable sizing and fault-level coordination must be confirmed by a qualified electrician.

Box Contents

• 1 × CHINT NXB-63 C32 32A 2P MCB

• Retail packaging and printed documentation: Not Verified

Protection Features

• Thermal overload protection

• Magnetic short-circuit protection

• Positive isolation

• Simultaneous linked operation of two poles

• Clear red/green contact-position indication

Not provided by this MCB: residual-current/earth-leakage protection, surge protection, over/under-voltage protection or arc-fault protection.

Certifications and Standards

Warranty

Not Verified. The official NXB-63 product page, catalog and user manual reviewed for this listing do not state a model-specific warranty duration. Confirm the applicable ExSolar.pk or authorized CHINT distributor warranty before publishing a term.
