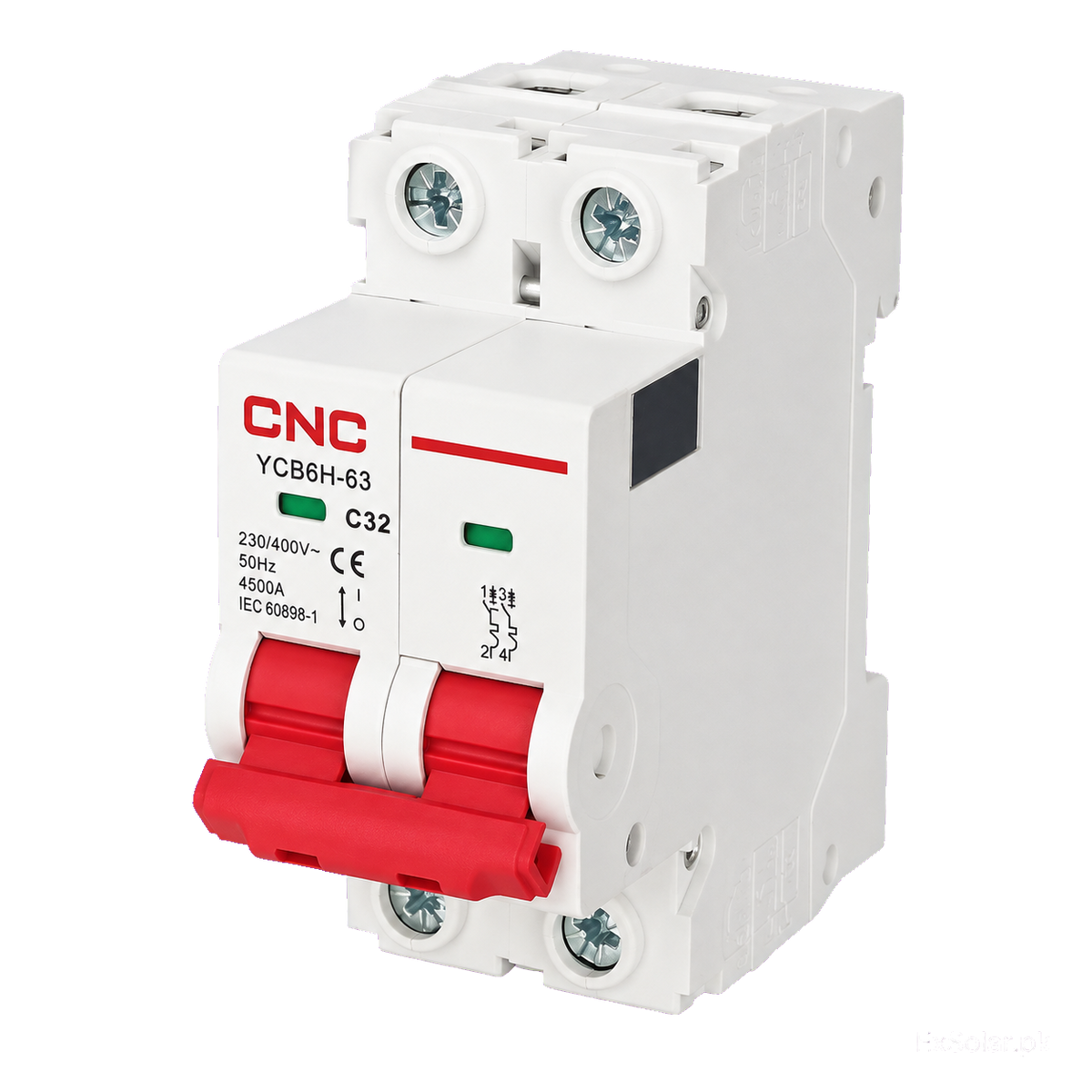

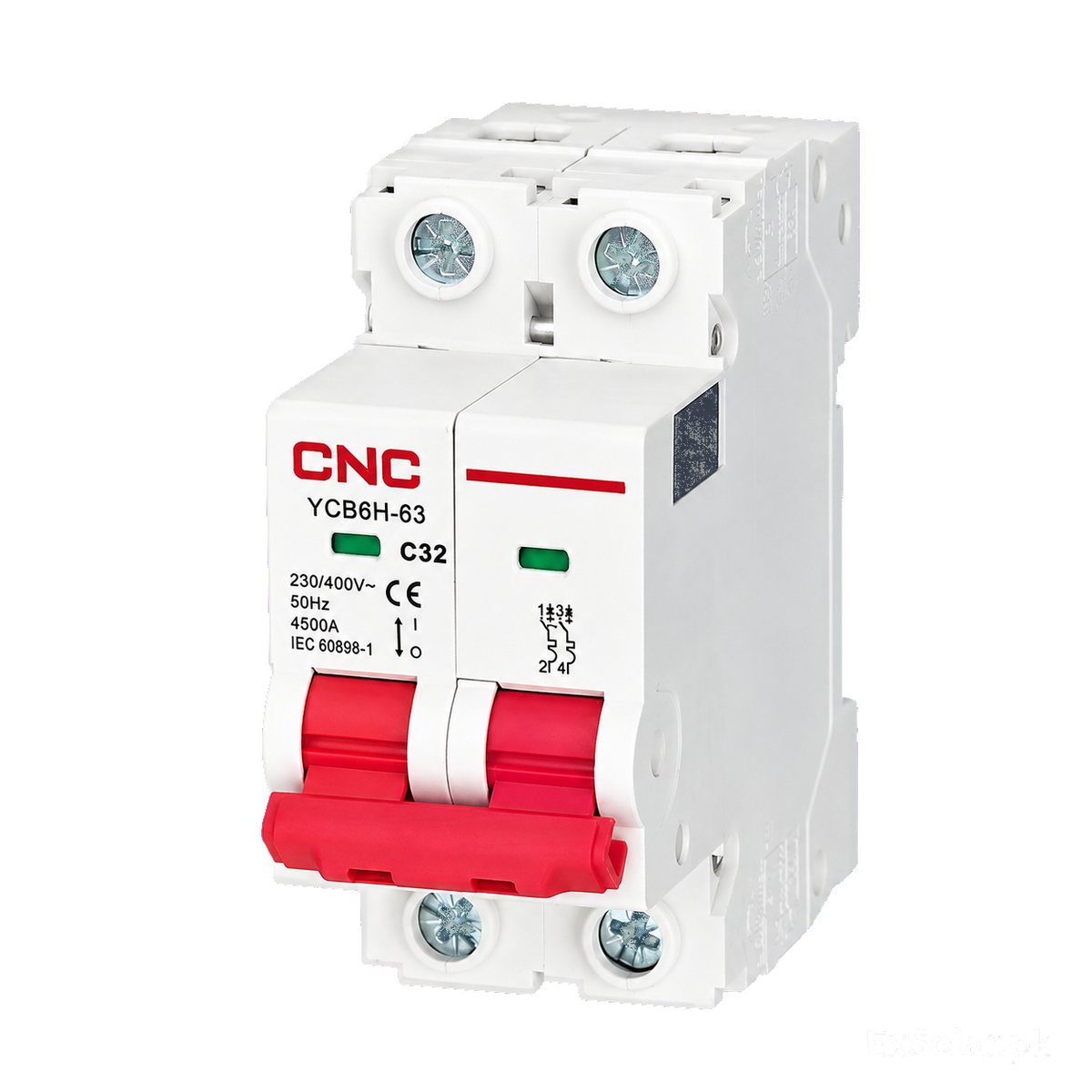

CNC YCB6H-63 32A 2-Pole C-Curve AC Miniature Circuit Breaker

Product Identification

• Brand: CNC Electric

• Series / Model: YCB6H-63

• Variant: C32, 2 Pole

• Product Type: AC Miniature Circuit Breaker (MCB)

• Category: Electrical Protection / AC Circuit Breaker / Accessory

• Application Class: AC final-distribution protection

• Not suitable for: DC or photovoltaic-string protection unless a separate DC rating is explicitly provided; no DC rating is shown for this unit

Product Title

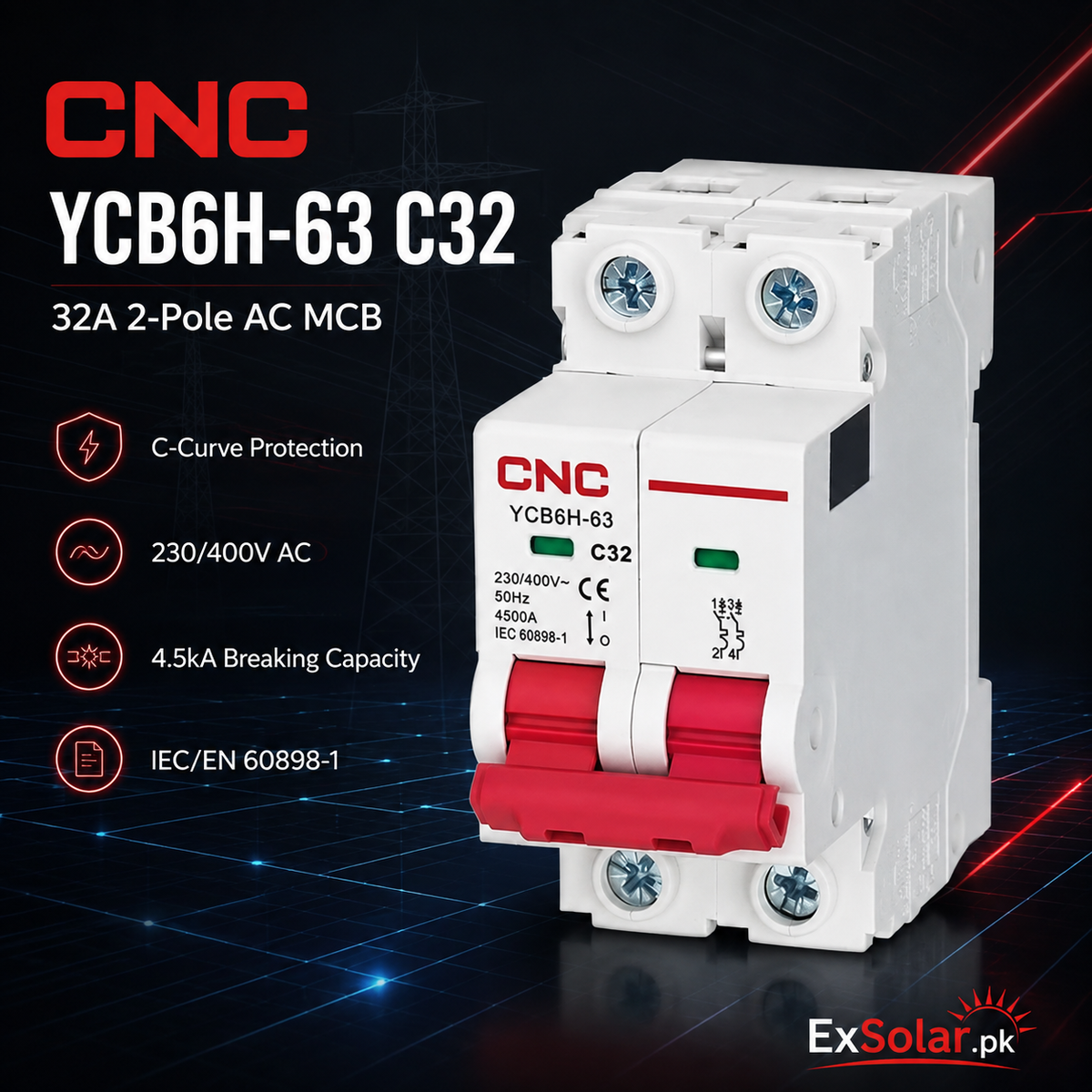

CNC YCB6H-63 32A 2-Pole C-Curve AC Miniature Circuit Breaker

Short Description

The CNC YCB6H-63 C32 is a 32A, two-pole, C-curve AC miniature circuit breaker for overload and short-circuit protection in residential, commercial and infrastructure distribution systems. It is rated 230/400V AC, 50/60Hz, with 4.5kA breaking capacity and 35mm DIN-rail mounting.

Long Description

Designed for dependable final-distribution protection, the CNC YCB6H-63 C32 2P AC MCB combines two-pole switching with thermo-magnetic overload and short-circuit protection. Its C-curve instantaneous release is intended for circuits where moderate inrush current may occur, while the linked red operating handles provide convenient manual control of both poles.

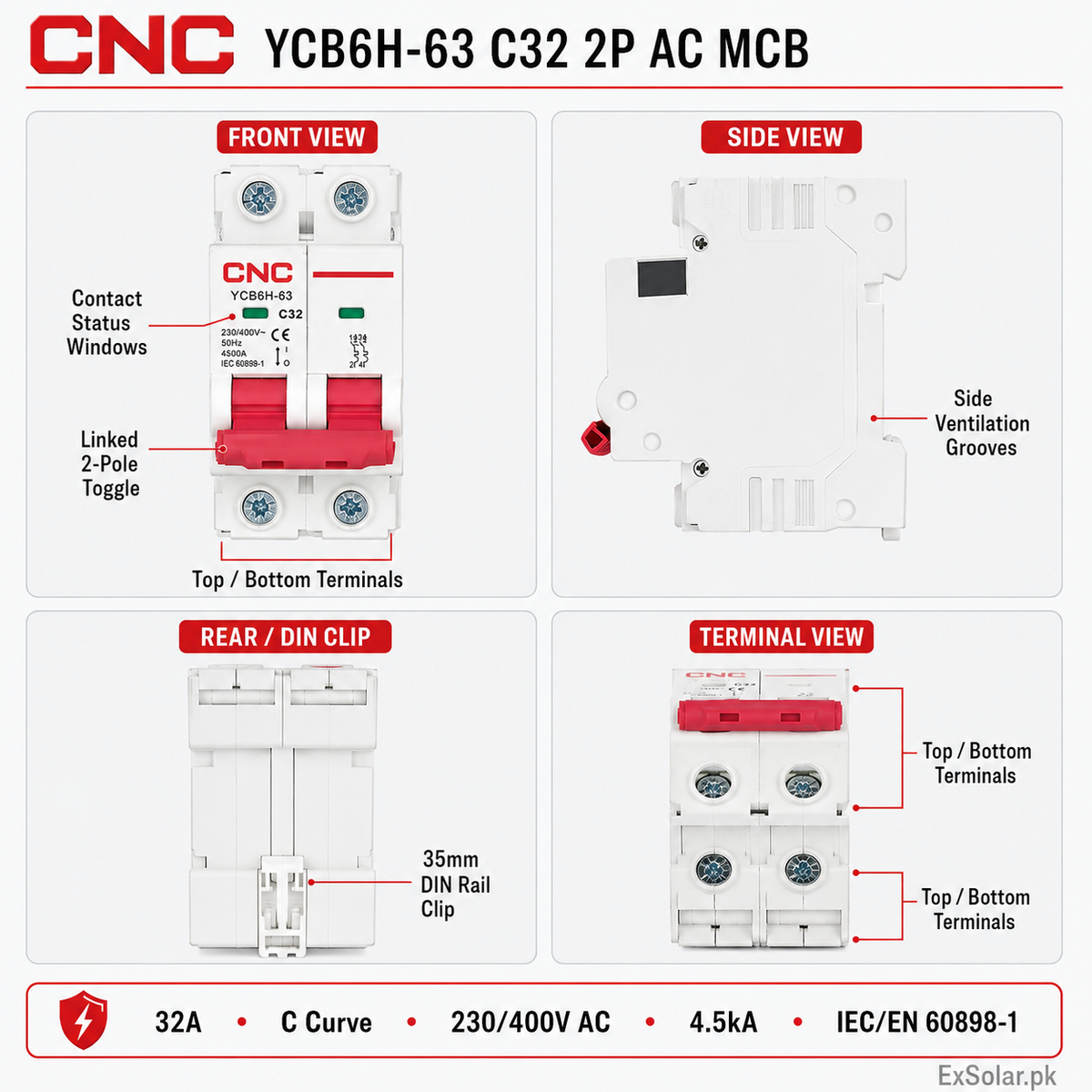

The breaker is rated at 32A and 230/400V AC with a 4.5kA rated breaking capacity. CNC specifies IEC/EN 60898-1 compliance, a 500V insulation voltage, 4kV impulse withstand voltage, IP20 protection and installation on a 35mm DIN rail. The YCB6H-63 catalogue also highlights a contact-status indication window, flame-retardant and impact-resistant enclosure, magnetic blow arc-extinguishing construction and side ventilation grooves.

This is an AC circuit breaker. It must not be marketed or installed as a DC/PV string breaker without an explicit manufacturer DC rating. Installation should be completed by a qualified electrician in accordance with the supplied instruction manual and applicable local electrical regulations.

Key Features

• 32A rated current

• Two-pole linked operation

• C-curve thermo-magnetic release

• 230/400V AC rated voltage

• 50/60Hz rated frequency

• 4.5kA rated breaking capacity

• Overload protection

• Short-circuit protection

• Contact-status indication window

• 35mm DIN-rail mounting

• Cable or pin-type busbar terminal compatibility

• IEC/EN 60898-1 product standard

Technical Specifications

Applications

• Residential distribution boards

• Commercial-building final distribution

• Non-residential buildings

• Industrial control and distribution circuits

• Energy-sector AC auxiliary circuits

• Infrastructure electrical distribution

• AC branch-circuit overload and short-circuit protection

Box Contents

• CNC YCB6H-63 C32 2P AC MCB: product unit shown

• Retail packaging quantity: Not Verified

• Instruction leaflet: Not Verified as included in the retail box

• Additional accessories: Not Verified

Protection Features

• Thermo-magnetic overload protection

• Magnetic short-circuit protection

• C-curve instantaneous tripping characteristic

• Magnetic blow arc-extinguishing construction

• Flame-retardant, temperature-resistant and impact-resistant enclosure features stated in the official catalogue

• Side ventilation grooves for heat dissipation

• IP20 enclosure protection degree

Certifications and Standards

• IEC/EN 60898-1 — official product standard

• CE marking — visible on the supplied product; CNC publishes an LVD verification for YCB6H-63 that expired on 1 February 2026, so current renewal status is Not Verified

• CB — listed by CNC for the YCB6H series; current certificate validity Not Verified

• EAC — listed in CNC's official YCB6H announcement; current certificate validity Not Verified

• INMETRO / Brazilian conformity — listed in CNC's official announcement and download section; current certificate validity Not Verified

• RoHS — Not Verified

Warranty

CNC's official warranty policy states 24 months from the date of manufacture for other low-voltage apparatus, while allowing the warranty period to be changed by the signed customer contract. Pakistan reseller coverage, proof requirements and local replacement terms must therefore be confirmed with ExSolar.pk or the authorized distributor.
