TOMZN TO219G 63A 2-Pole Manual Changeover Switch – 400V AC I–0–II Dual Power Transfer

Product Identification

Important: This product is a manual changeover/isolating switch. It is not verified as an MCB, fuse, RCBO, surge protector or automatic transfer switch, and it should not be presented as providing overcurrent or short-circuit protection. Use correctly rated upstream protective devices and installation by a qualified electrician.

Product Title

TOMZN TO219G 63A 2-Pole Manual Changeover Switch – 400V AC I–0–II Dual Power Transfer

Short Description

The TOMZN TO219G is a 63A, 2-pole manual changeover switch for controlled selection between two AC power sources. Its linked I–0–II handle provides Source I, centre-off isolation and Source II positions for manual utility, generator, inverter or PV-source transfer applications.

Long Description

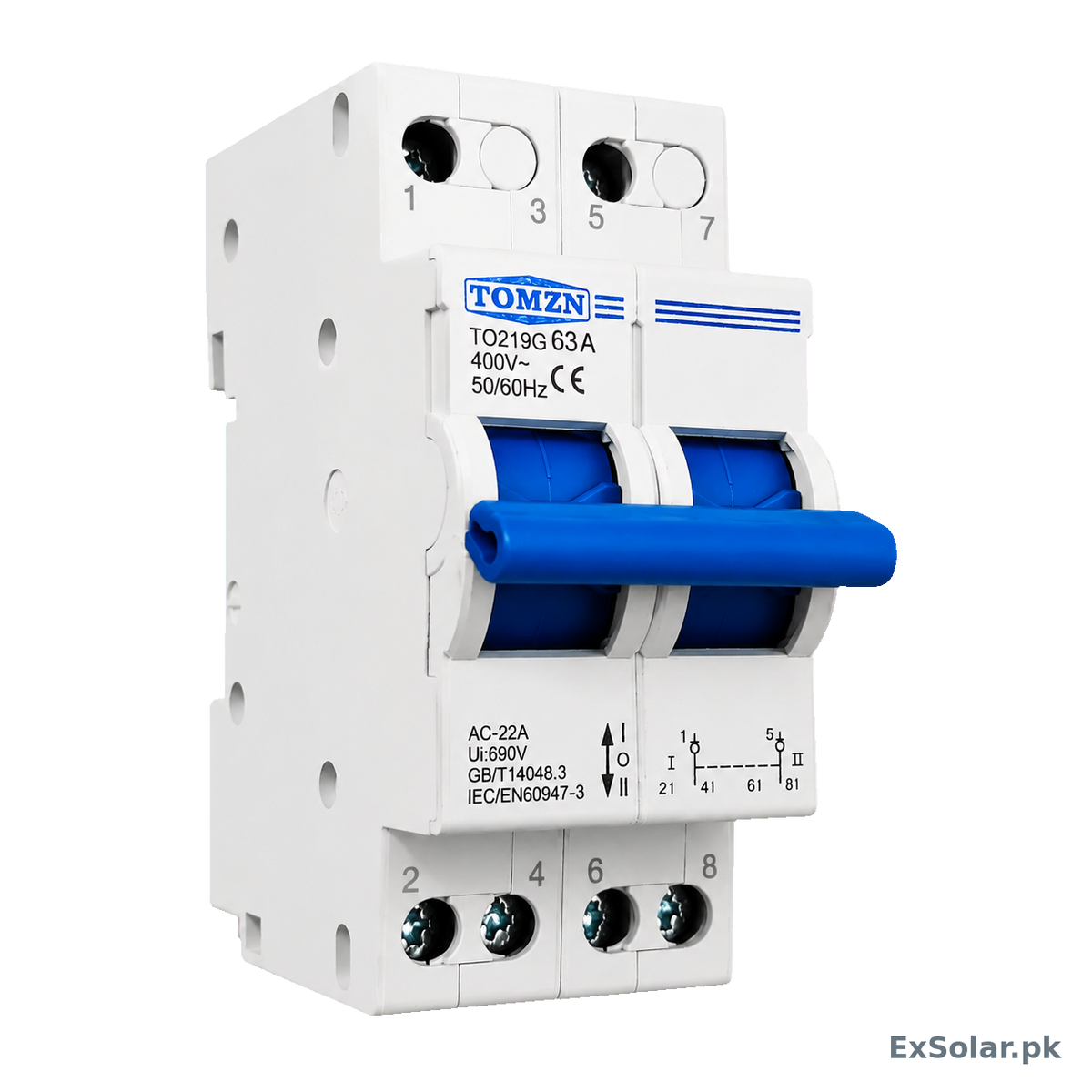

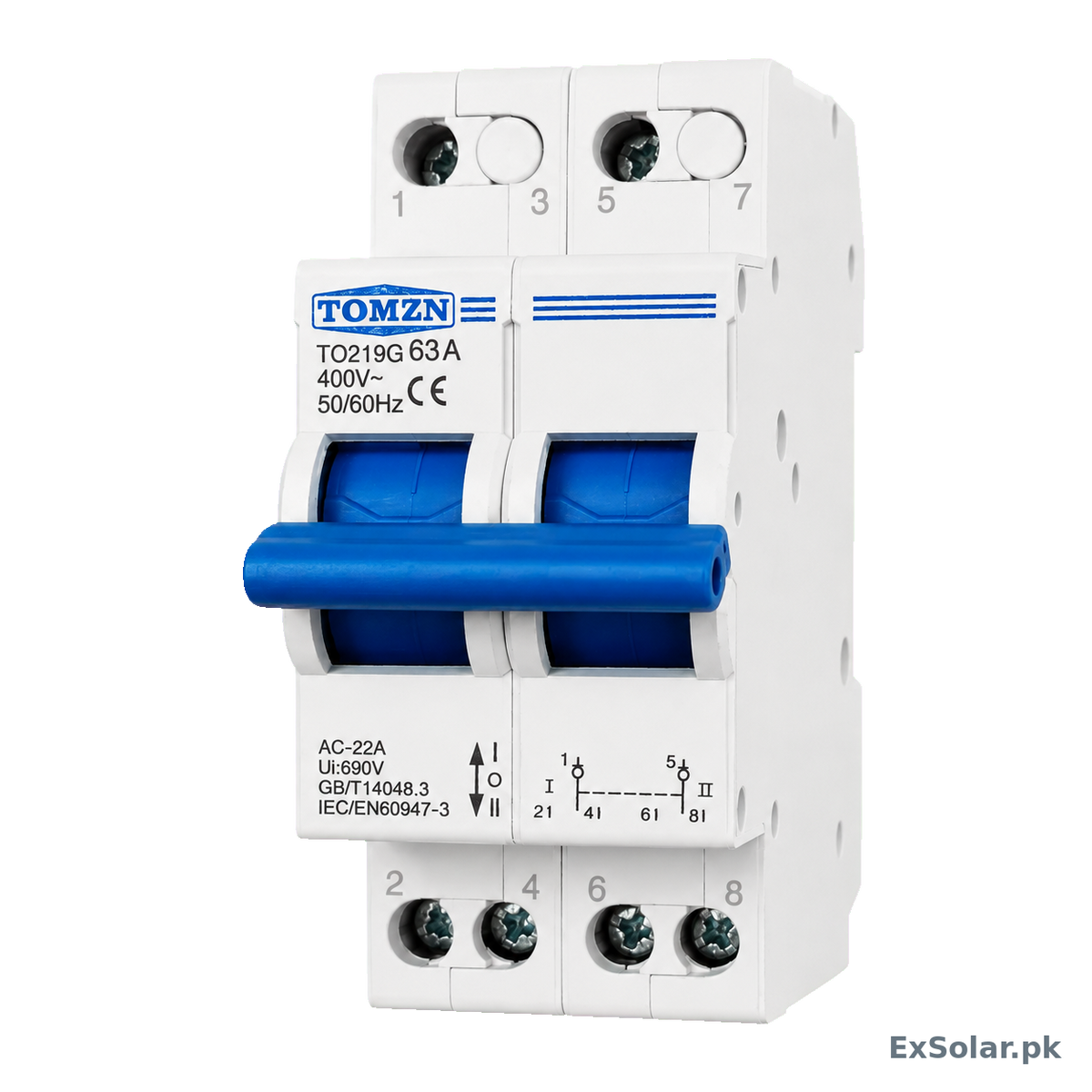

Manage two independent AC supplies through one compact manual switching device with the TOMZN TO219G. Rated at 63A and 400V AC, the 2-pole changeover switch uses a mechanically linked blue handle to select Source I, disconnect both source paths in the centre 0 position, or select Source II.

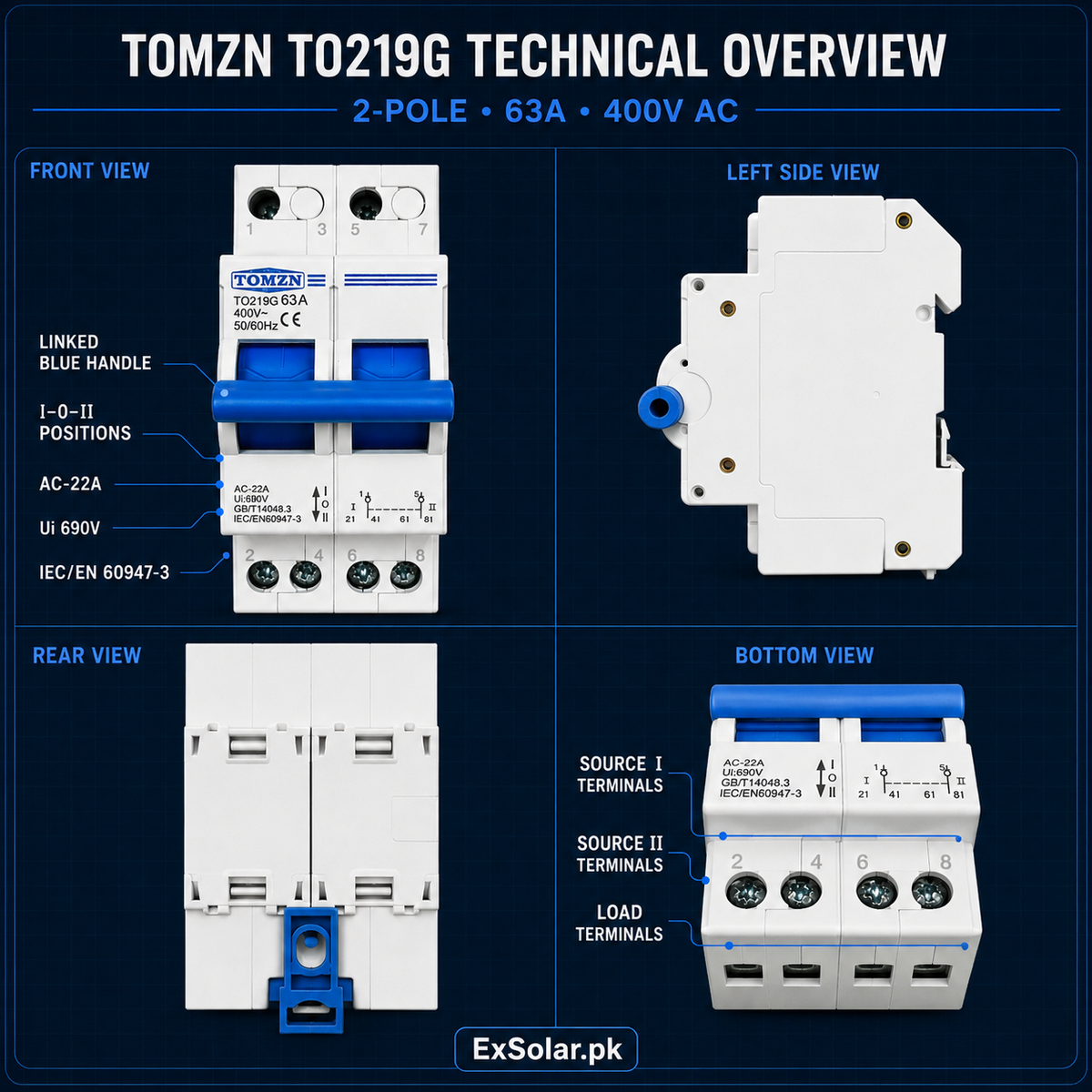

TOMZN's official product information describes the TO219G as a dual-power manual transfer switch for power-source changeover. The official connection description confirms that position I connects terminals 1–2 and 5–6, position II connects terminals 1–4 and 5–8, and the centre position disconnects both groups. This makes it suitable for professionally designed mains/generator, mains/inverter and other two-source AC systems where manual control is required.

The TO219G is a switching and isolation device—not an automatic transfer system and not a substitute for circuit protection. Selection, cable sizing, enclosure, protective devices and installation must be completed by a qualified electrician in accordance with the applicable electrical code.

Key Features

• Exact TOMZN TO219G Blue model

• 63A rated current

• 2-pole linked switching

• 400V AC rated voltage

• 50/60Hz rated frequency

• Manual three-position I–0–II operation

• Centre-off position disconnects both contact groups

• Manual selection between two independent AC sources

• AC-22A utilization category printed on the product

• Ui 690V rated insulation voltage printed on the product

• IEC/EN 60947-3 and GB/T 14048.3 markings

• Compact modular form for electrical distribution applications

Technical Specifications

Applications

• Manual utility-to-generator source selection

• Manual utility-to-inverter source selection

• Solar/PV-supported AC power systems with an appropriate upstream design

• Residential backup-power distribution

• Commercial backup-power distribution

• Essential-load source selection

• Electrical control and distribution panels

• Systems requiring a centre-off isolation position

Box Contents

• TOMZN TO219G 63A 2-pole manual changeover switch: Not Verified as official package content

• Installation instructions: Not Verified

• Mounting accessories: Not Verified

Protection and Functional Features

• Mechanically linked 2-pole operation

• Three-position manual selection: I–0–II

• Centre-off disconnection of both contact groups

• Manual isolation between two selected source paths

• Contact state for each position documented by TOMZN

Not verified as included: overload protection, short-circuit protection, residual-current/leakage protection, surge protection, under/over-voltage protection, automatic source sensing or automatic transfer. Appropriate upstream protection is required.

Certifications and Standards

• IEC/EN 60947-3 marking: visible on product

• GB/T 14048.3 marking: visible on product

• CE mark: visible on product

• Third-party certificate numbers or downloadable conformity certificates: Not Verified

• RoHS: Not Verified

Warranty

Official manufacturer warranty term for this exact model: Not Verified.
