Product Identification

Product Title

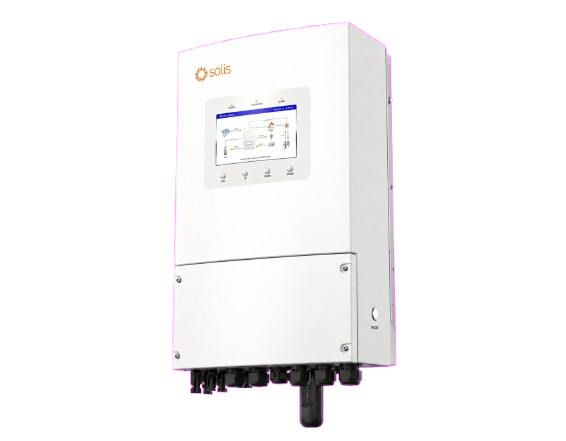

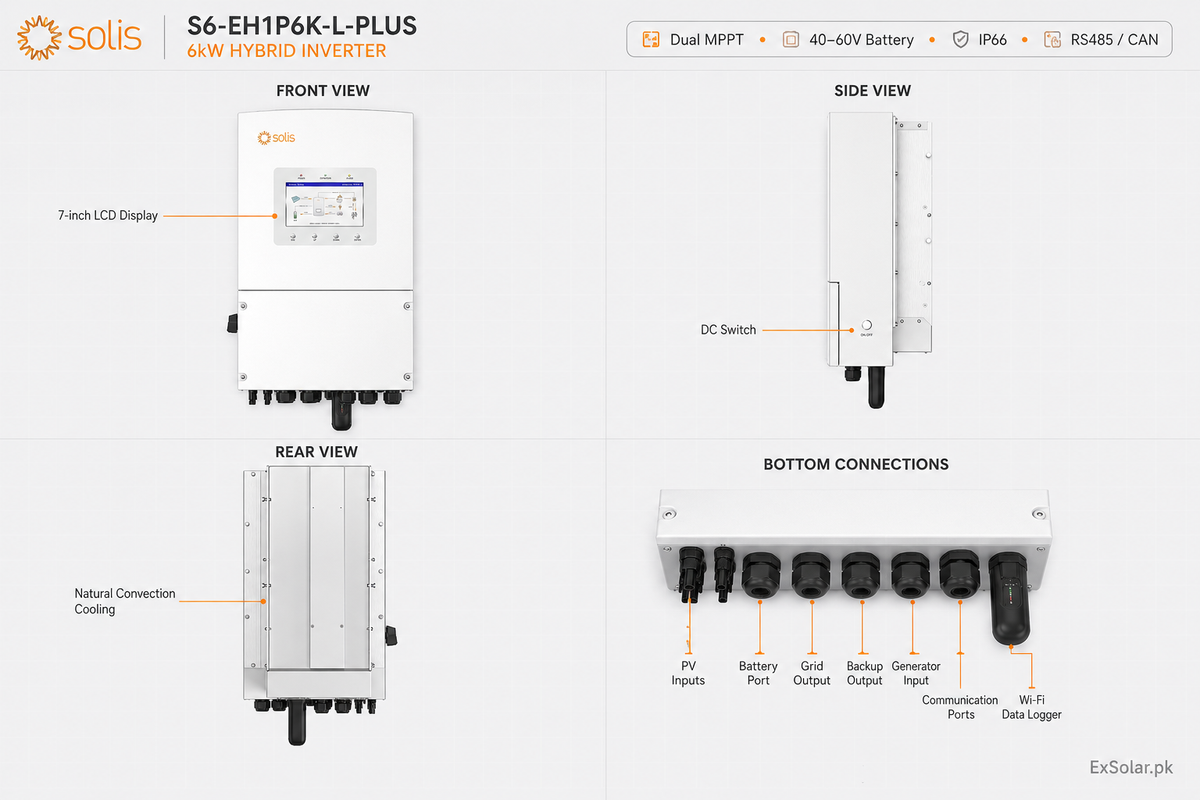

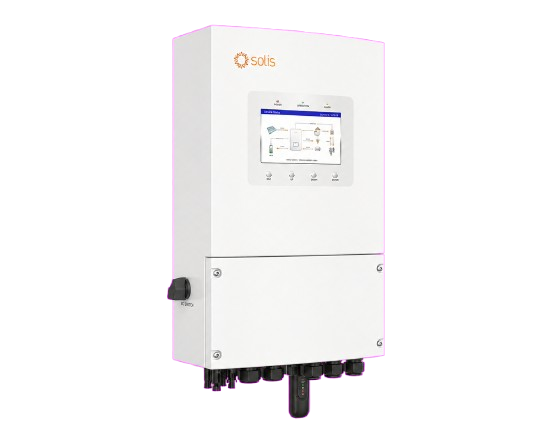

Solis S6-EH1P6K-L-PLUS 6kW Single-Phase Low-Voltage Hybrid Inverter

Short Description

The Solis S6-EH1P6K-L-PLUS is a 6kW single-phase hybrid inverter for residential and light-commercial solar energy-storage systems. It combines dual MPPT solar input, 40–60V lithium-ion or lead-acid battery compatibility, 6kW backup output with under-4ms transfer, generator support, IP66 protection and a 7-inch LCD with Bluetooth app access.

Long Description

Designed for flexible solar generation, battery storage and backup power, the Solis S6-EH1P6K-L-PLUS integrates grid-connected operation and dependable backup functionality in one weather-resistant enclosure. Its two independent MPPT trackers support up to 9.6kW of usable PV input, while the low-voltage 40–60V battery interface delivers up to 6kW and 135A charge/discharge capability.

During a grid interruption, the dedicated backup output transfers in less than 4ms and can provide 200% of rated apparent power for 10 seconds, helping support demanding inductive loads. Generator input, AC-coupling capability, smart-load functions and parallel operation make the inverter suitable for new installations and energy-storage upgrades.

The IP66 enclosure supports indoor or outdoor installation, while natural-convection cooling reduces routine fan maintenance. A 7-inch LCD, Bluetooth app interface and RS485/CAN communications provide clear system control and battery integration. Optional Wi-Fi, GPRS and LAN monitoring interfaces are supported.

Key Features

• 6kW rated single-phase grid and backup output

• Dual MPPT design with one PV string per MPPT

• Up to 9.6kW usable PV input power

• 500V maximum PV input and 90–435V MPPT range

• 40–60V lithium-ion and lead-acid battery compatibility

• Up to 6kW / 135A battery charge and discharge capability

• Less than 4ms backup transfer time

• 200% rated apparent backup power for 10 seconds

• Generator input, AC coupling and smart-load functionality

• Up to six compatible inverters supported in parallel

• IP66 enclosure with natural-convection cooling

• 7-inch LCD, Bluetooth app, RS485 and CAN communication

Technical Specifications

Applications

• Residential rooftop solar with low-voltage battery storage

• Home backup and UPS-level critical-load support

• Grid-connected self-consumption and export-control systems

• Off-grid or weak-grid backup installations

• Light-commercial energy-storage systems

• Generator-assisted hybrid power systems

• AC-coupled retrofit of an existing PV installation

• Smart-load and time-of-use energy management

• Compatible parallel systems requiring additional capacity

Box Contents

According to the official user manual, the standard package includes:

• Solis hybrid inverter ×1

• Back plate ×1

• Fastening screws ×2

• Expansion bolts ×4

• DC connectors ×2 for 3–6kW models

• Parallel communication cable ×1

• RJ45 connectors ×4

• Current transformer (CT) ×1

• WLAN stick ×1

• Quick Installation Manual ×1

• Meter ×1 — optional, not standard in every package

Final supplied contents can vary by sales region or distributor bundle; inspect the package before installation.

Protection Features

• Ground-fault monitoring

• Residual-current monitoring

• DC reverse-polarity protection

• Integrated AFCI — optional configuration

• Anti-islanding protection

• PV overvoltage and insulation-resistance monitoring

• Grid overvoltage / undervoltage monitoring

• Grid overfrequency / underfrequency monitoring

• Output overcurrent and backup overload protection

• Battery overvoltage / undervoltage monitoring

• Overtemperature and undertemperature protection

• Protection Class I; overvoltage Category II for PV/battery and Category III for grid, backup and generator ports

Certifications and Standards

• CE certification listed by Solis for the S6-EH1P(3–8)K-L-PLUS series

• IEC/EN 62109-1 and IEC/EN 62109-2 safety standards

• EN 61000-6-2 and EN 61000-6-3 EMC standards

• IEC 62116 anti-islanding test standard

• IEC 61727 photovoltaic utility-interface standard

• IEC 60068 environmental testing

• IEC 61683 photovoltaic-system power-conditioner efficiency measurement

• EN 50530 overall efficiency standard

• G98 and additional regional grid-connection standards listed in the manual

• RoHS: Not Verified

Certification applicability can depend on firmware, country code and local grid requirements. The installer must confirm the certificates required by the relevant authority before commissioning.

Warranty

The official Solis user manual states a 5-year standard warranty, extendable up to 20 years. Extension availability, registration deadlines, pricing and country-specific coverage must be confirmed against current Solis warranty terms and the authorized local distributor.
