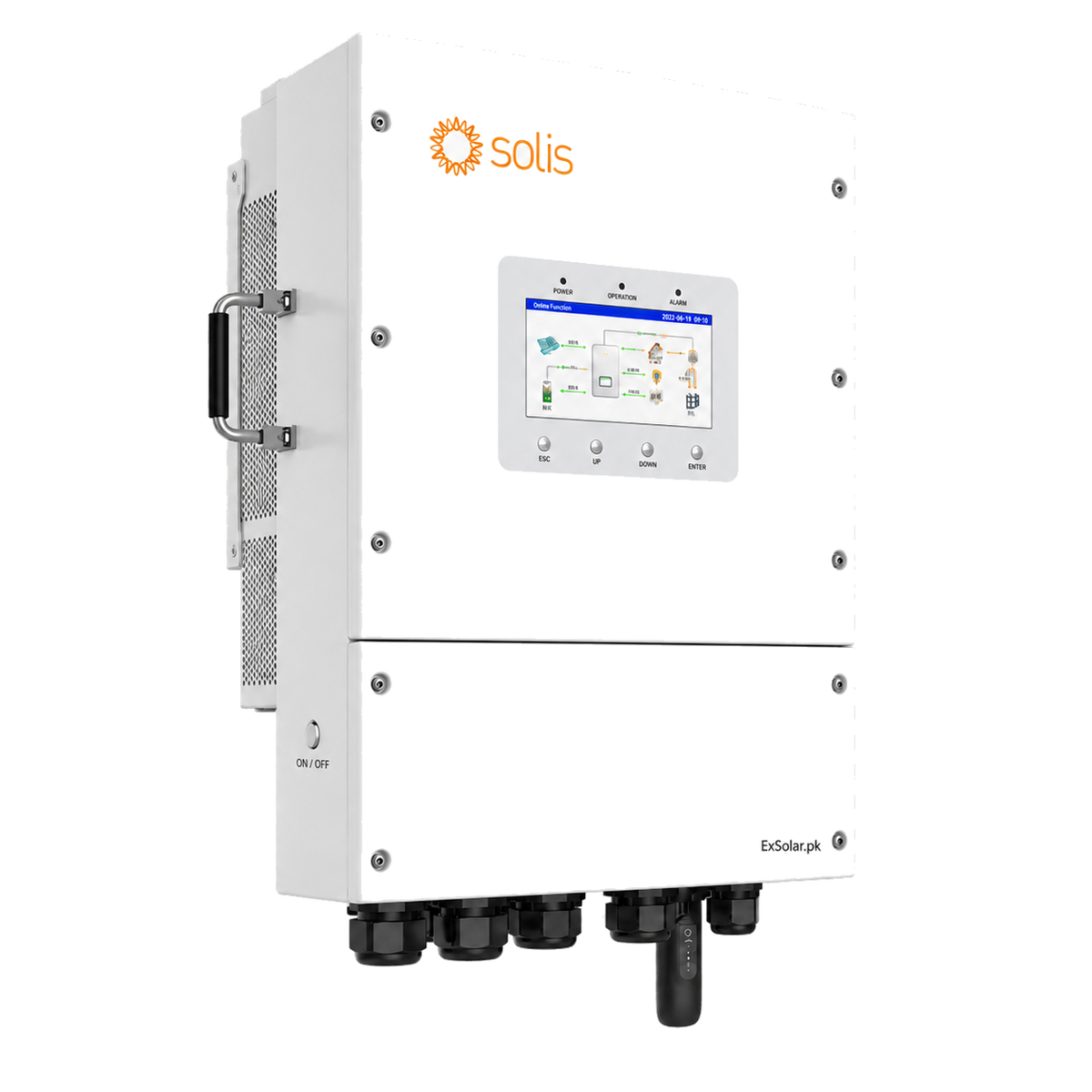

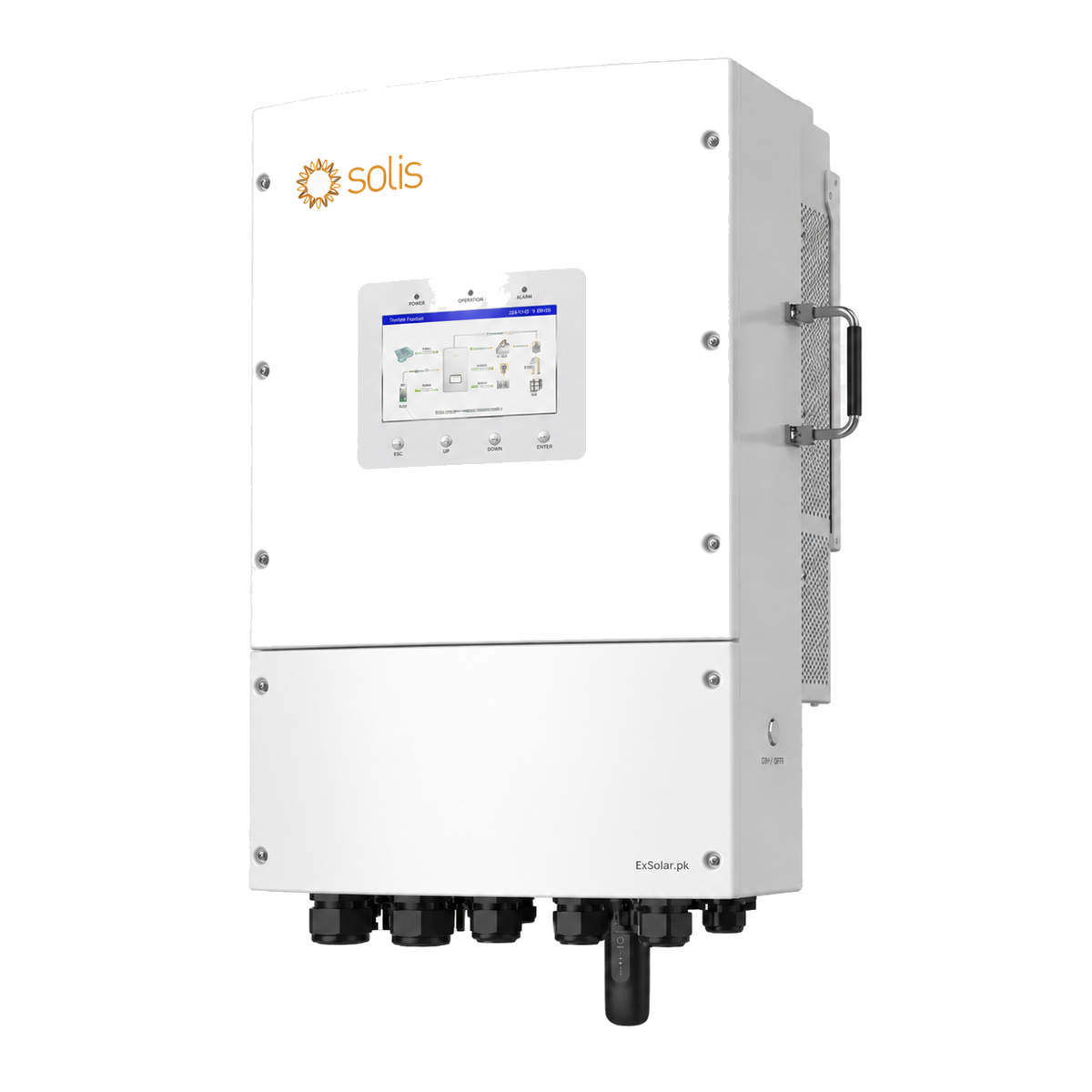

Solis S6-EH1P8K-L-PLUS 8kW Hybrid Inverter

Product Identification

Product Title

Solis S6-EH1P8K-L-PLUS 8kW Single-Phase Hybrid Inverter IP66

Short Description

The Solis S6-EH1P8K-L-PLUS is an 8kW single-phase, low-voltage hybrid inverter designed for residential solar-plus-storage systems. It supports 40–60V lithium-ion or lead-acid batteries, two MPPTs with four PV string inputs, an 8kW backup output, generator and AC-coupling functions, IP66 protection, and local control through a 7-inch colour display and Bluetooth app connection.

Long Description

Built for flexible residential energy storage, the Solis S6-EH1P8K-L-PLUS combines an 8kW grid output with an 8kW battery charge/discharge stage and a dedicated backup output. Its two MPPT trackers accept up to four PV strings, while a maximum usable PV input power of 12.8kW allows a 1.6 DC-to-AC ratio for stronger solar harvesting across changing conditions.

The inverter works with compatible 40–60V lithium-ion and lead-acid batteries and supports up to 190A charge/discharge current. A dedicated smart port can be configured for a generator, smart load or AC-coupled grid-tied inverter. Backup transfer is rated below 4ms, and the backup output can supply twice rated power for 10 seconds to accommodate demanding starting loads.

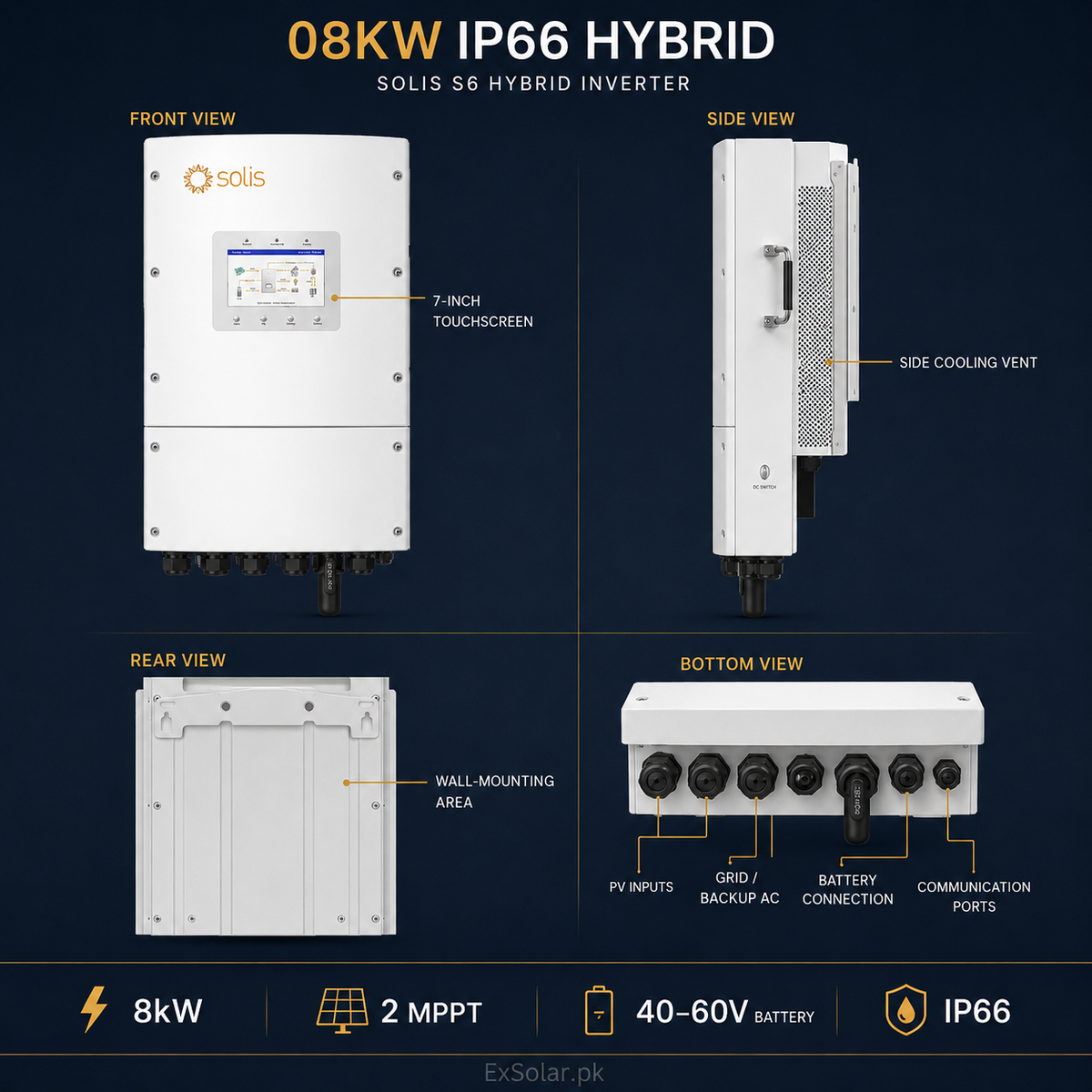

For system management, the S6 platform provides a 7-inch colour LCD, built-in Bluetooth, RS485 and CAN communication, with optional Wi-Fi, GPRS or LAN monitoring through SolisCloud. Its IP66 enclosure, intelligent cooling and comprehensive electrical protections make it suitable for indoor or outdoor installation when installed in accordance with the official manual and local regulations.

Key Features

• 8kW rated single-phase grid and backup output

• Low-voltage 40–60V battery platform for lithium-ion or lead-acid batteries

• 8kW maximum battery charge/discharge power and up to 190A current

• Two MPPT trackers with four PV string inputs on the 8kW model

• 12.8kW maximum usable PV input power, equal to a 1.6 DC/AC ratio

• Less than 4ms backup transfer time for critical loads

• 200% backup overload capability for 10 seconds

• Generator, smart-load and AC-coupling functions through the configurable smart port

• Up to six compatible units can operate in parallel

• 7-inch colour LCD plus built-in Bluetooth local commissioning

• RS485 and CAN communication; optional Wi-Fi, GPRS and LAN monitoring

• IP66 enclosure with intelligent cooling for indoor or outdoor installation

Technical Specifications

Applications

• Residential solar self-consumption

• Home battery storage

• Critical-load backup power

• Hybrid on-grid solar systems

• Off-grid and weak-grid residential systems

• Generator-assisted backup systems

• Smart-load control and load shedding

• AC coupling for an existing grid-tied PV installation

• Multi-inverter parallel systems, subject to official design requirements

Box Contents

The official V1.3 manual lists:

• Solis S6 hybrid inverter ×1

• Back plate ×1

• Fastening screws ×2

• Parallel communication cable ×1

• RJ45 connectors ×4

• CT ×1

• WLAN stick ×1

• DC connectors for the 8kW model ×4

• Expansion bolts ×4

• Quick Installation Manual ×1

• SDM120M meter ×1 — optional, not standard in every package

Package contents can vary by market or distributor; verify the shipped carton before listing the optional meter as included.

Protection Features

• Ground-fault monitoring

• Residual-current monitoring

• DC reverse-polarity protection

• Integrated DC disconnect switch

• Surge protection

• Output over-current protection

• Insulation-resistance monitoring

• Anti-islanding protection

• Battery overvoltage and undervoltage protection functions

• DC and AC over-current fault monitoring

• Over-temperature and low-temperature protection

• Integrated AFCI arc-fault protection — listed as optional in the specification table; confirm the supplied SKU

• Protection class / overvoltage category: Class I; Category II for PV and battery; Category III for mains, backup and generator ports

Certifications and Standards

Official Solis documents for this series list or provide certification for the following standards. Grid-code applicability depends on the destination market and firmware configuration.

• IEC/EN 62109-1 and IEC/EN 62109-2 — inverter safety

• EN 61000-6-2 and EN 61000-6-3 — EMC

• IEC 62116 — anti-islanding

• IEC 61727 — utility interface

• IEC 60068 — environmental testing

• IEC 61683 — efficiency measurement

• EN 50530 — overall efficiency

• CE Declaration of Conformity for S6-EH1P(3-8)K-L-PLUS

• Additional regional grid standards listed by Solis include NRS 097-2-1, G98, MEA, PEA, NBR 16149 and NBR 16150

Warranty

Official standard warranty: 5 years. The official manual states that warranty extension is available up to 20 years, subject to Solis registration, purchase, country availability and warranty terms. Confirm Pakistan-specific extension pricing and eligibility with Solis or an authorized distributor before promising an extended term to the customer.
