Solar Panel Water Drain Clip for 35mm Frame

Product Identification

Identification is based on the supplied images and the matching manufacturer-hosted product listing. The listing is a supplier storefront rather than a standalone technical datasheet.

Product Title

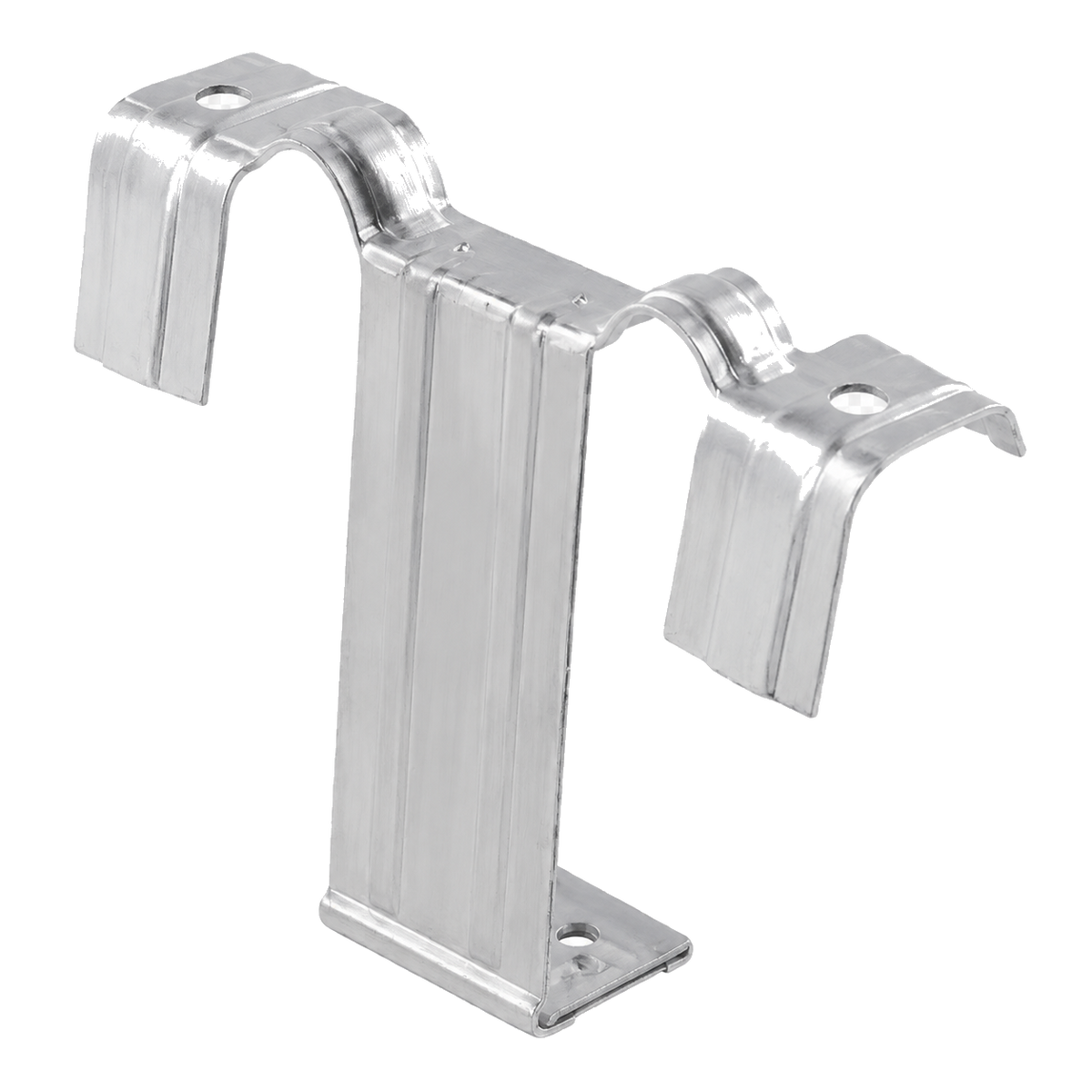

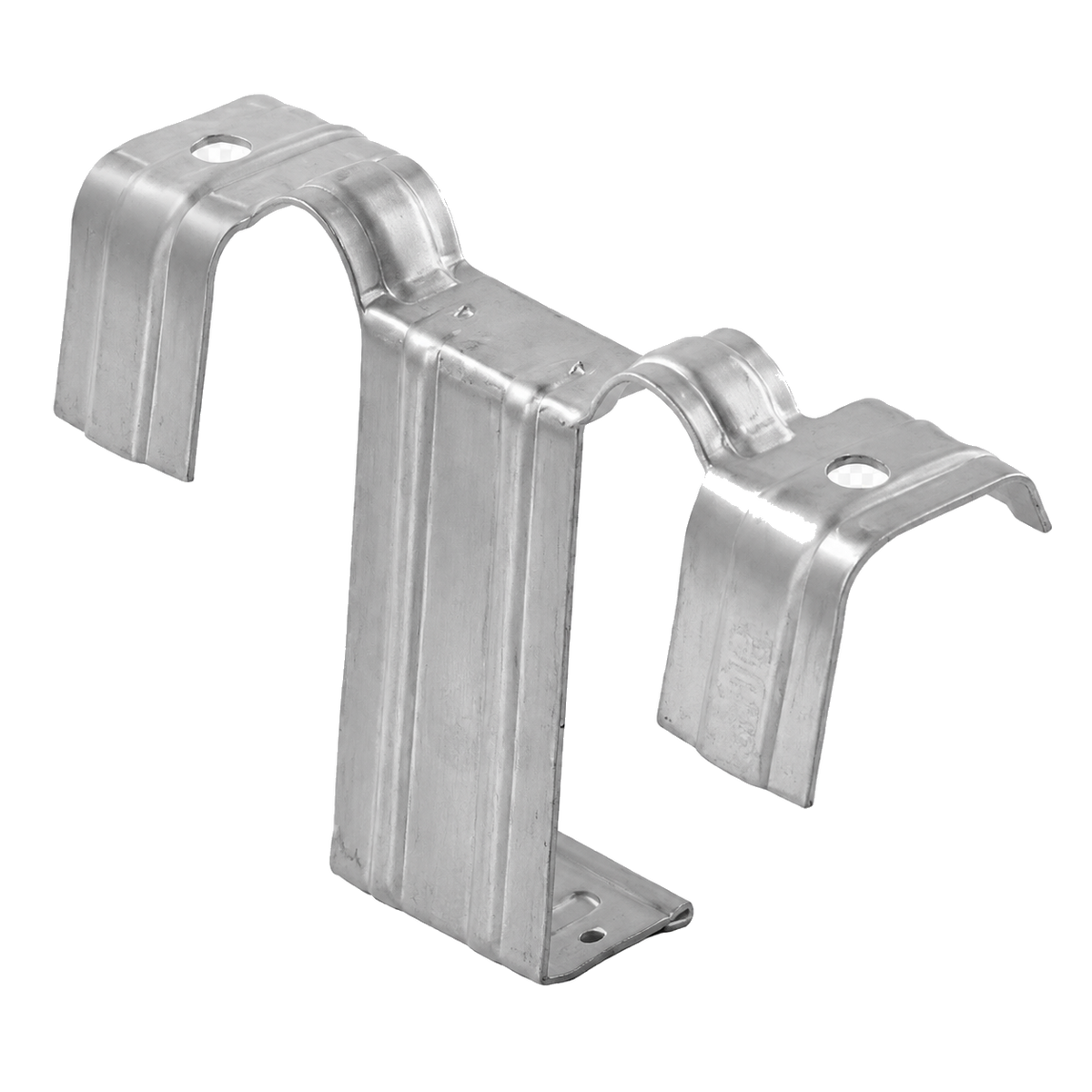

Kingwooh SUS 304 Stainless Steel Solar Panel Water Drain Clip for 35mm Frame

Short Description

The Kingwooh SUS 304 solar panel water drain clip is a compact stainless-steel accessory designed for compatible 35 mm photovoltaic module frames. Its shaped channel guides water away from the lower edge of the panel frame, while the silver stamped-metal construction provides a neat, low-profile installation.

Long Description

Keep compatible photovoltaic module frames better prepared for water run-off with the Kingwooh SUS 304 Solar Panel Water Drain Clip. Designed for a 35 mm suitable specification, this silver stainless-steel accessory attaches at the solar-panel frame edge and uses a formed central channel with a lower drainage lip to guide water away from the frame.

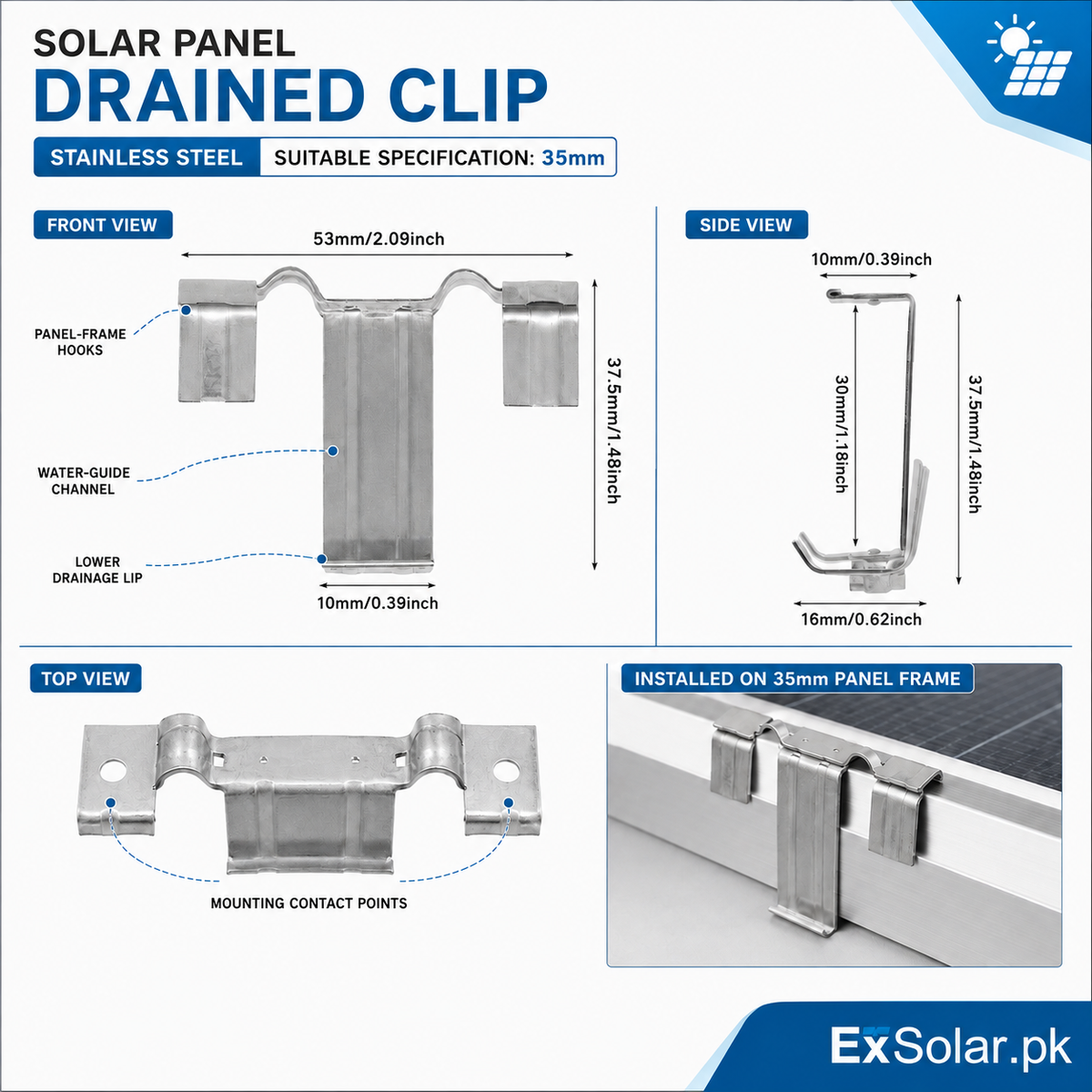

The supplied dimensional image shows a compact 53 mm overall width and 37.5 mm overall height. Its stamped-metal profile includes two panel-frame hooks, a 30 mm inner vertical section and a 16 mm lower projection. The clip is intended as a passive mechanical accessory and contains no electrical or powered components.

Before ordering or installation, confirm that the solar module frame profile, lip geometry and drainage arrangement match the clip. Do not allow the accessory to contact or damage the module glass, backsheet, seals, cables or existing drainage openings.

Key Features

• Kingwooh solar-panel drainage accessory.

• Manufacturer-listed model/designation: SUS 304.

• Stainless-steel construction.

• Silver finish.

• Suitable specification: 35 mm.

• Designed for installation on a solar-panel frame.

• 53 mm overall width shown in the supplied dimensional image.

• 37.5 mm overall height shown in the supplied dimensional image.

• Formed central water-guide channel.

• Dual upper panel-frame hooks.

• Compact lower drainage lip.

• Passive mechanical design with no electrical connection required.

Technical Specifications

Applications

• Residential rooftop photovoltaic arrays.

• Commercial rooftop photovoltaic arrays.

• Ground-mounted solar arrays.

• Compatible framed PV modules with a 35 mm suitable specification.

• Solar-panel frame-edge water guidance.

Compatibility must be confirmed against the exact module-frame profile before installation.

Box Contents

• Solar panel water drain clip(s): quantity Not Verified.

• Installation hardware: Not Verified.

• Printed instructions: Not Verified.

The supplied image showing multiple clips does not verify the retail pack quantity.

Protection Features

This is a passive drainage accessory, not an electrical protection device. No overcurrent, overvoltage, surge, isolation, ingress-protection or other electrical protection rating is applicable or verified.

Certifications

Not Verified.

Warranty

Not Verified.
