Product Identification

The uploaded reference shows three similar anchors in different sizes. This product record is prepared specifically for the middle 10mm variant requested by the customer.

Product Title

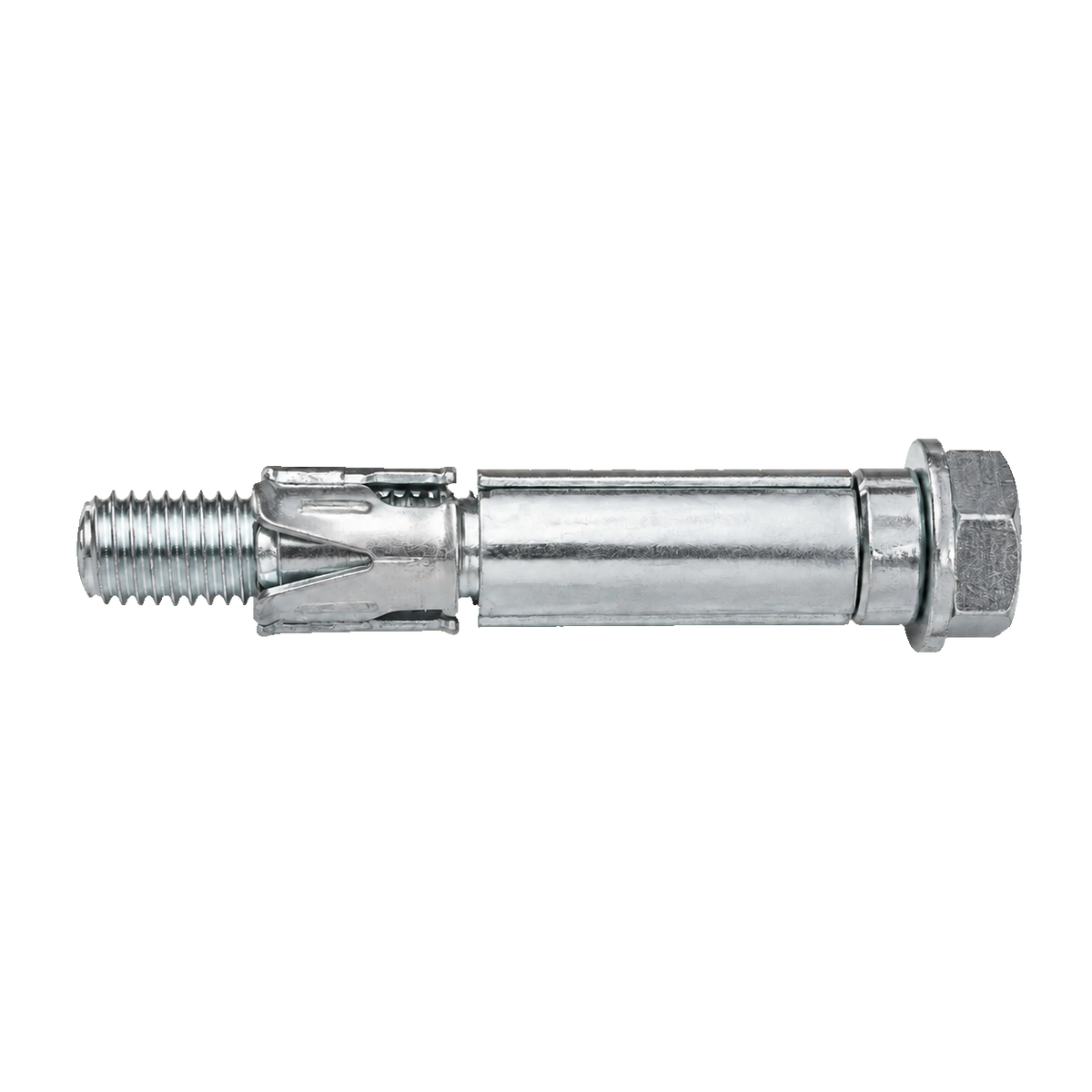

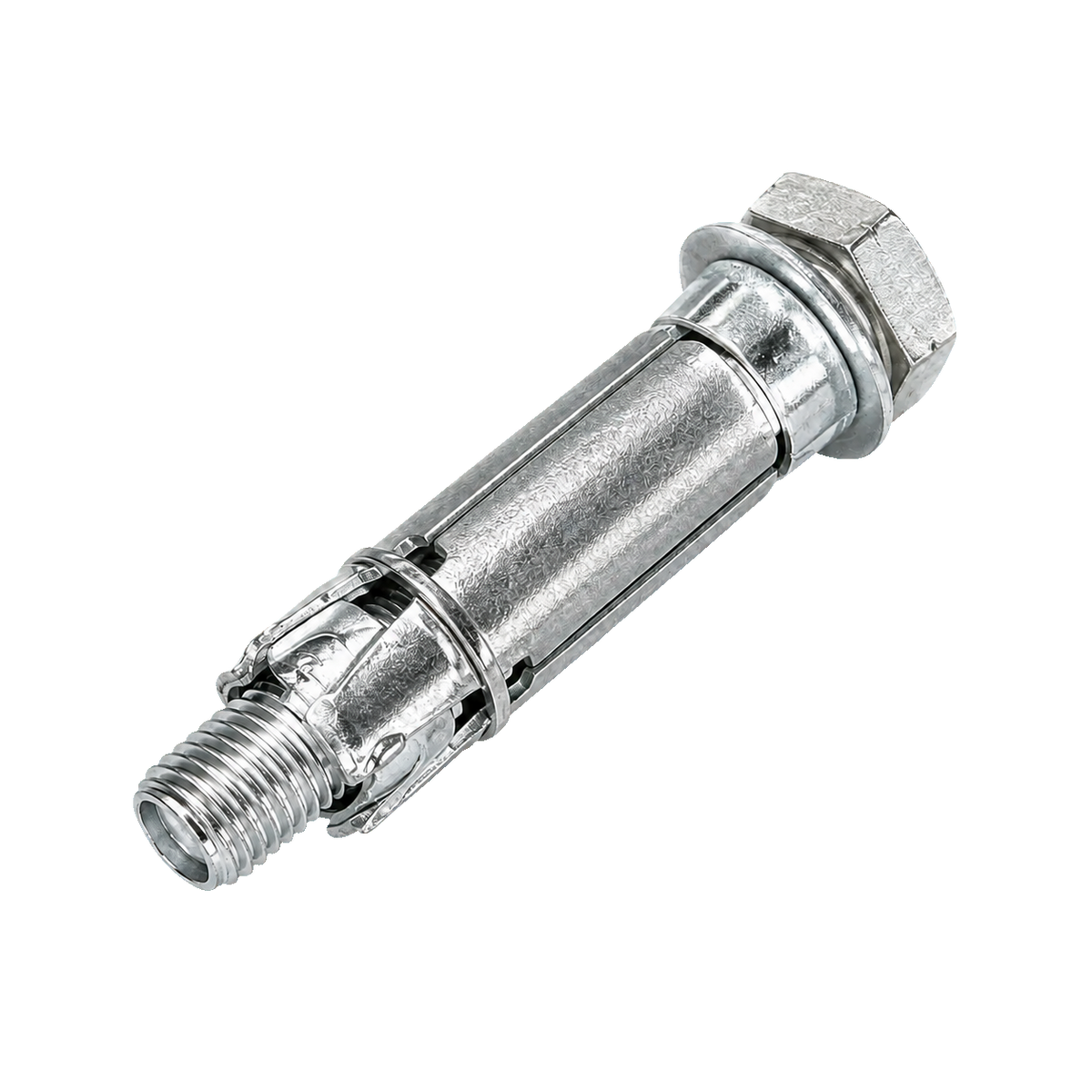

10mm Rawl Bolt Sleeve Expansion Anchor

Short Description

A 10mm sleeve expansion anchor featuring a hexagonal head, washer, threaded stud and slotted expansion sleeve. Intended for secure mechanical fixing in a suitable solid concrete or masonry substrate when selected and installed by a qualified professional.

Long Description

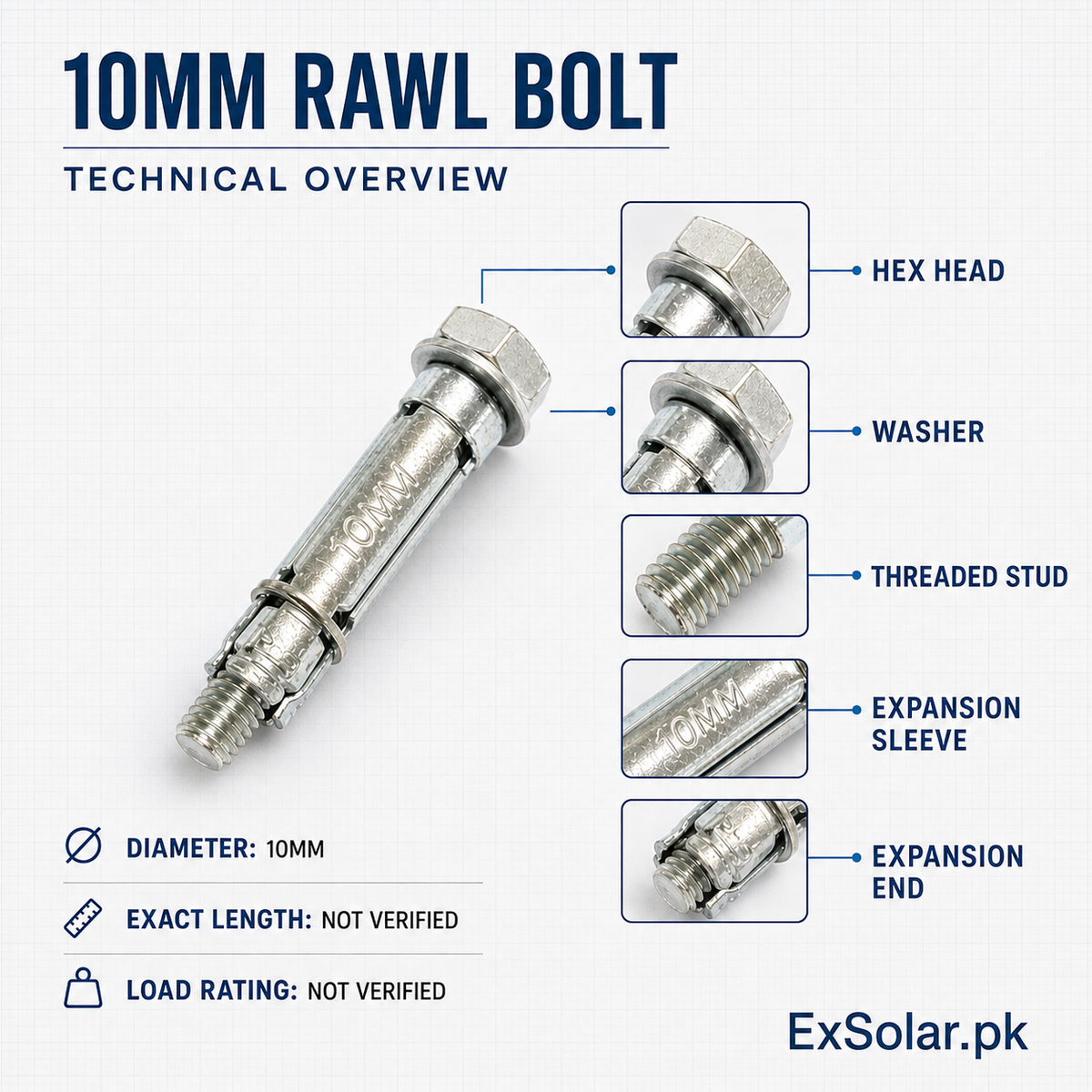

The 10mm Rawl Bolt Sleeve Expansion Anchor is a mechanical fixing accessory designed for mounting compatible brackets, supports and structural hardware to an approved solid substrate. Its assembled construction combines a hex head, washer, threaded stud, expansion sleeve and expansion end in one convenient fixing.

Correct tightening is intended to expand the sleeve inside a properly prepared hole and develop mechanical retention. Actual suitability and performance depend on the substrate, embedment depth, hole preparation, spacing, edge distance, installation torque, material grade and manufacturer approval. These technical values were not supplied and must be confirmed before installation.

Key Features

• 10mm nominal size, as specified by the customer

• Sleeve expansion anchor design

• Hexagonal head for tool-operated tightening

• Integrated washer visible in the reference design

• Threaded stud construction

• Slotted metal expansion sleeve

• Expansion end for mechanical anchoring

• Pre-assembled fixing format

• Silver metallic appearance

• Suitable for professional mounting in an approved solid substrate

• Can be considered for compatible solar mounting brackets after structural approval

• Exact load capacity and installation torque must be confirmed before use

Technical Specifications

Applications

• Compatible solar panel mounting brackets, subject to engineering approval

• Solar rail and support fixing where the anchor is approved for the substrate

• Brackets, frames and support hardware

• General residential and commercial mechanical fixing

• Suitable solid concrete or masonry applications only after installation parameters are confirmed

Do not use in hollow, cracked, weak or unknown substrates unless the manufacturer or a qualified engineer specifically approves the application.

Box Contents

• 1 × assembled 10mm rawl bolt / sleeve expansion anchor: expected from the product format

• Retail pack quantity: Not Verified

Protection Features

This is a mechanical fixing accessory and does not provide electrical protection. Any corrosion-protective coating, fire rating or environmental protection classification is Not Verified.

Certifications

Not Verified

Warranty

Not Verified
