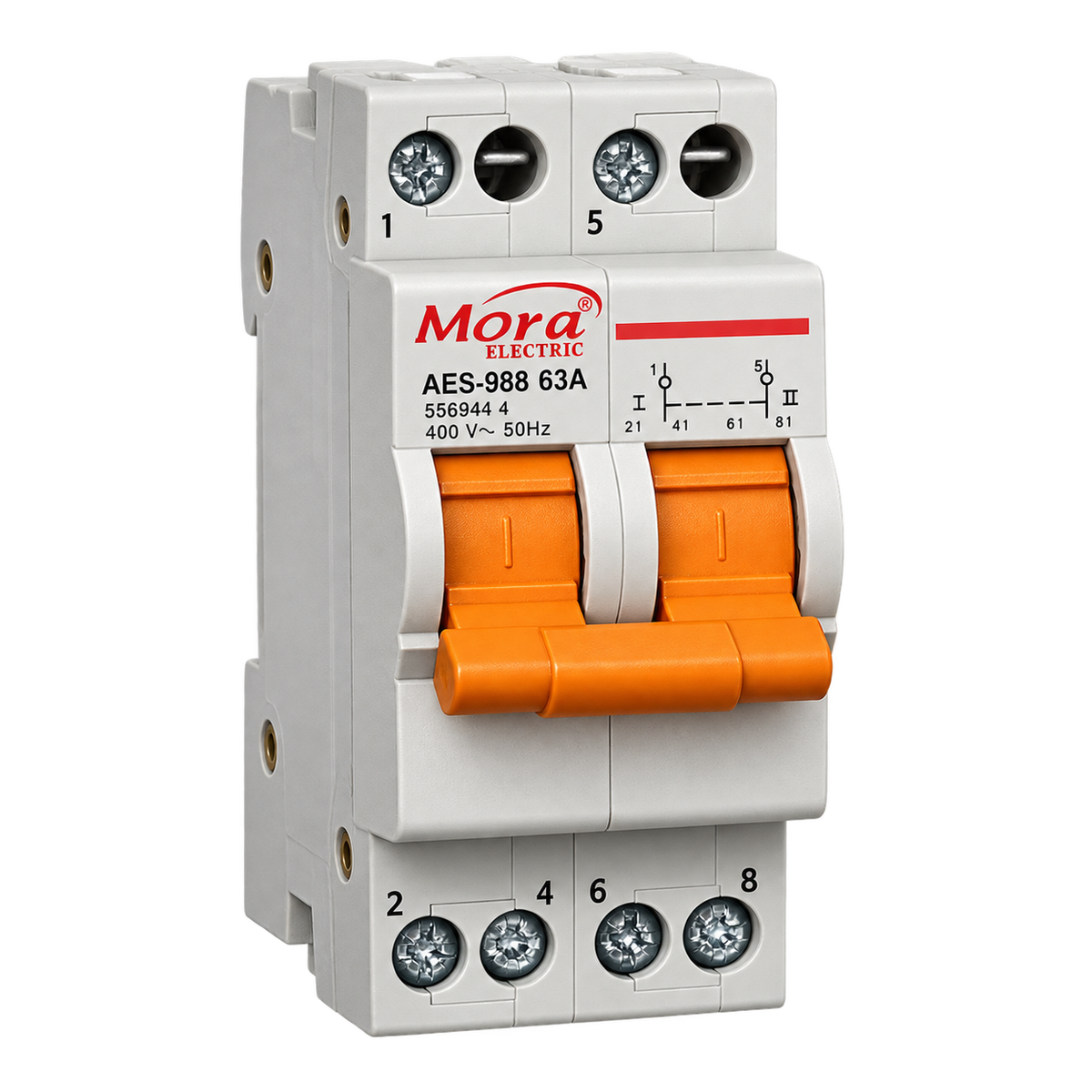

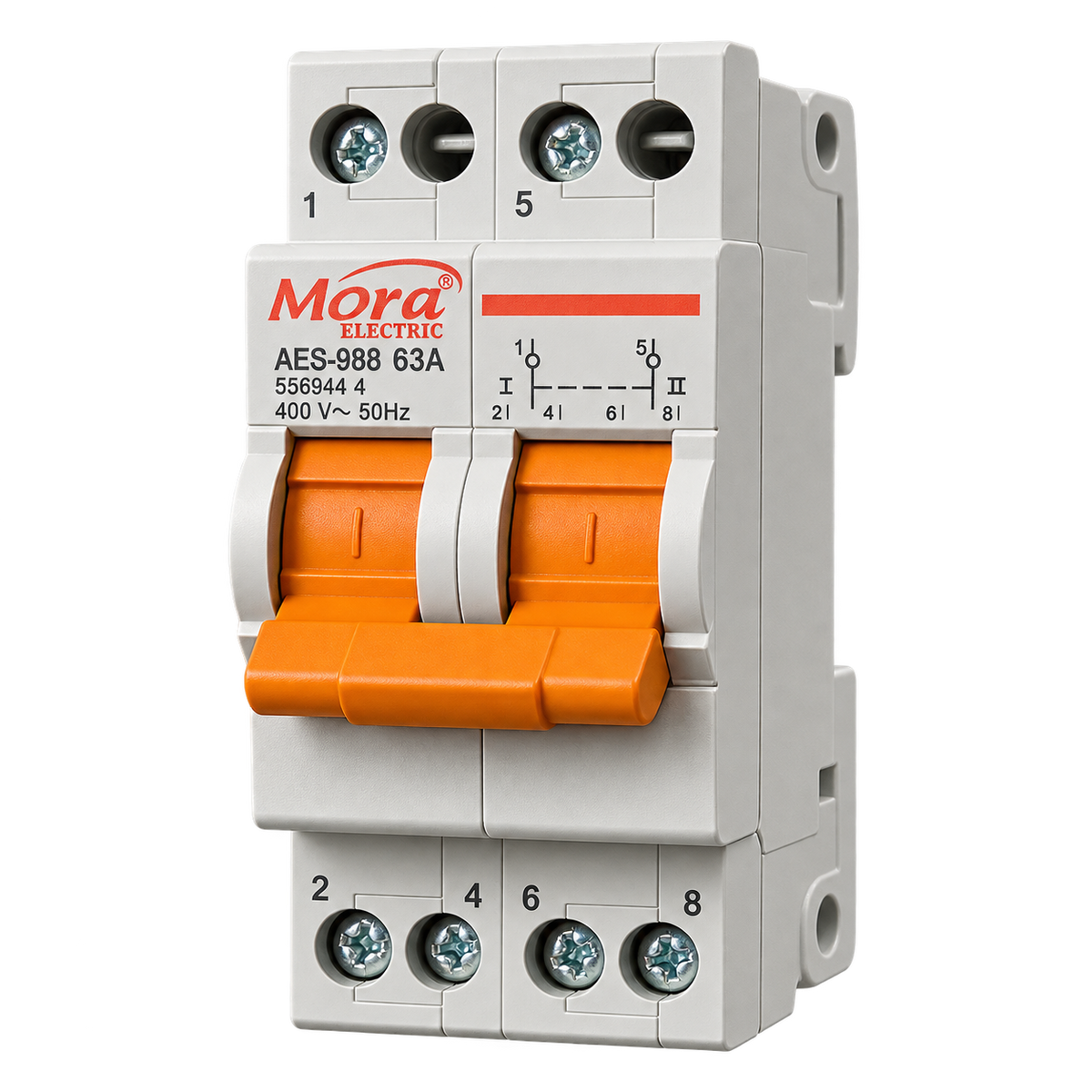

MORA AES-988 63A 2-Pole Manual Changeover Switch – 400V AC

Product Identification

Research note: MORA's official Pakistan website was located, but an official product page, datasheet or manual for this exact AES-988 63A 2-pole variant could not be located. Only details visible on the supplied product have therefore been treated as verified. All other fields are marked Not Verified.

Product Title

MORA AES-988 63A 2-Pole Manual Changeover Switch – 400V AC

Short Description

The MORA AES-988 is a 63A, 2-pole manual changeover switch designed for controlled selection between two compatible AC power sources. Its mechanically linked orange handle operates both poles together, while the printed terminal diagram supports correct identification during professional installation.

Long Description

The MORA AES-988 63A 2-Pole Manual Changeover Switch provides a compact method of manually selecting between two compatible AC supplies in a properly engineered electrical or backup-power system. The product nameplate identifies a 63A current rating, 400V AC rating and 50Hz frequency.

Its two switching poles are mechanically linked through a single operating handle, enabling coordinated source selection. Clearly numbered terminals and a front-mounted connection diagram assist the installer when planning the circuit.

The device may be suitable for selected mains, generator, inverter or solar-backup changeover arrangements. Final source compatibility, conductor sizing, upstream protection, earthing, neutral treatment and enclosure requirements must be confirmed by a qualified electrician. This product must not be marketed as an automatic transfer switch, circuit breaker, RCCB, surge protector or uninterrupted power supply unless separate official documentation confirms those functions.

Key Features

• 63A rated current shown on the product nameplate

• Two-pole mechanically linked switching arrangement

• Manual selection between Source I and Source II

• 400V AC rated voltage shown on the supplied unit

• 50Hz operating frequency shown on the supplied unit

• Prominent orange linked operating handle

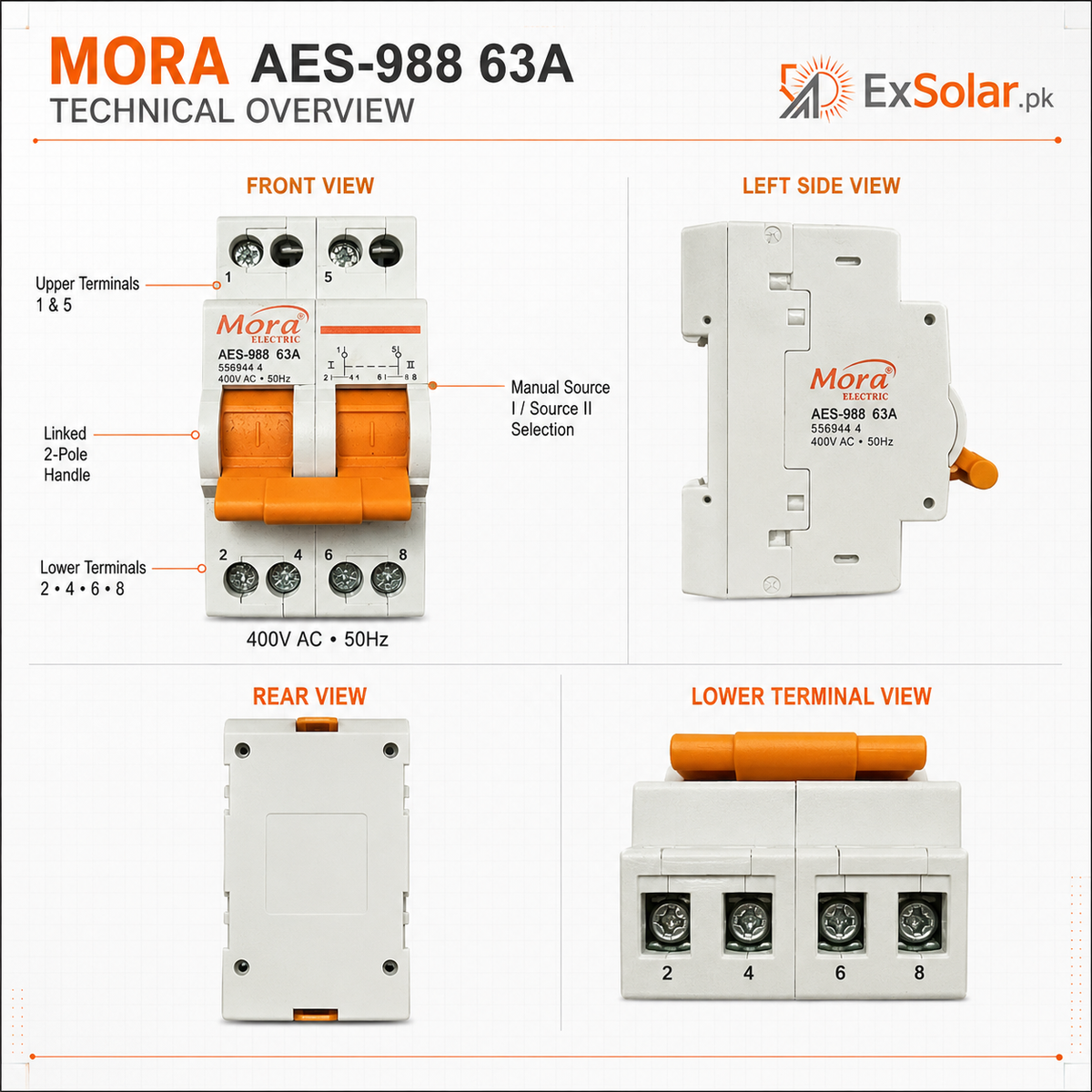

• Front-printed switching and terminal diagram

• Upper terminals numbered 1 and 5

• Lower terminals numbered 2, 4, 6 and 8

• Compact modular electrical-panel form factor

• Suitable for professionally designed dual-source AC systems

• MORA Electric AES-988 product identification

Technical Specifications

Applications

• Manual selection between two compatible AC supplies

• Utility and generator changeover systems

• Utility and inverter backup arrangements

• Selected solar-backup distribution systems

• Residential distribution panels

• Shops, offices and small commercial systems

• Maintenance or source-isolation arrangements designed by a qualified electrician

Box Contents

• 1 × MORA AES-988 63A 2-Pole changeover switch — visible product only

• Installation manual — Not Verified

• Mounting accessories — Not Verified

• Product packaging — Not Verified

Protection Features

Verified switching characteristics:

• Mechanically linked operation of two poles

• Manual separation and selection of two source paths according to the printed terminal diagram

The following protection functions are Not Verified and must not be claimed:

• Overload protection

• Short-circuit protection

• Earth-leakage / residual-current protection

• Surge protection

• Over-voltage or under-voltage protection

• Automatic source monitoring or automatic transfer

• Arc-fault protection

Separate appropriately rated protective devices may be required by the installation design.

Certifications

No certification mark or official certificate for this exact variant could be verified from the supplied front image or an official MORA document.

Warranty

Official warranty for the MORA AES-988 63A 2-pole variant: Not Verified.
