Product Identification

Product Title

MORA-2PVA/80A 2-Pole Adjustable Voltage & Current Protector

Short Description

The MORA-2PVA/80A is a two-pole adjustable voltage and current protection relay with a digital voltage/ampere display, Line and Neutral terminals, four setting buttons and an adjustable current marking of 1–80A. Exact manufacturer documentation for this model was not located; technical ranges below are transcribed from the supplied product label and clearly identified as such.

Long Description

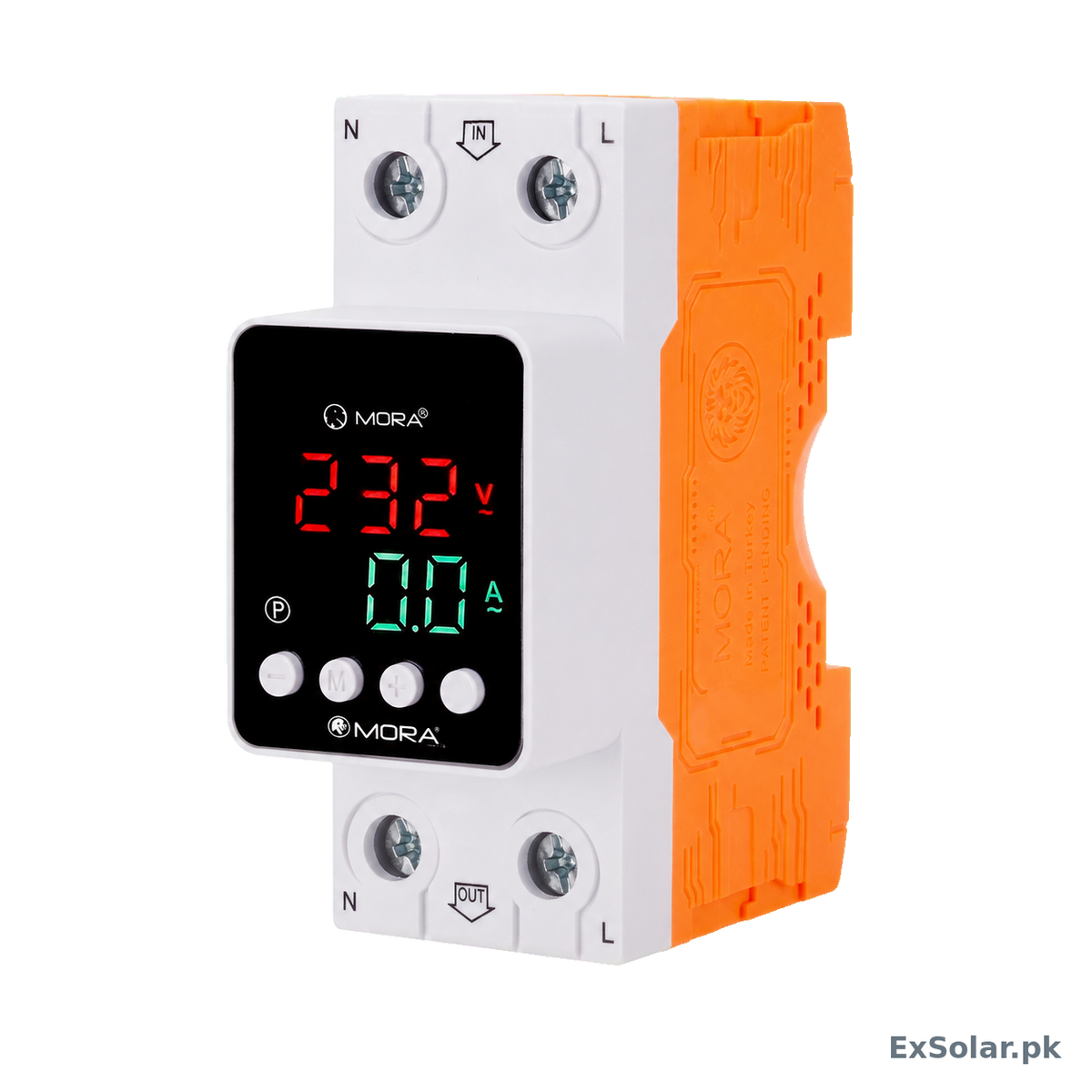

Designed for single-phase AC distribution panels, the MORA-2PVA/80A combines live voltage and current monitoring with adjustable voltage and ampere protection settings. Its front digital panel displays voltage in red and current in green, while four control buttons provide access to the adjustable parameters.

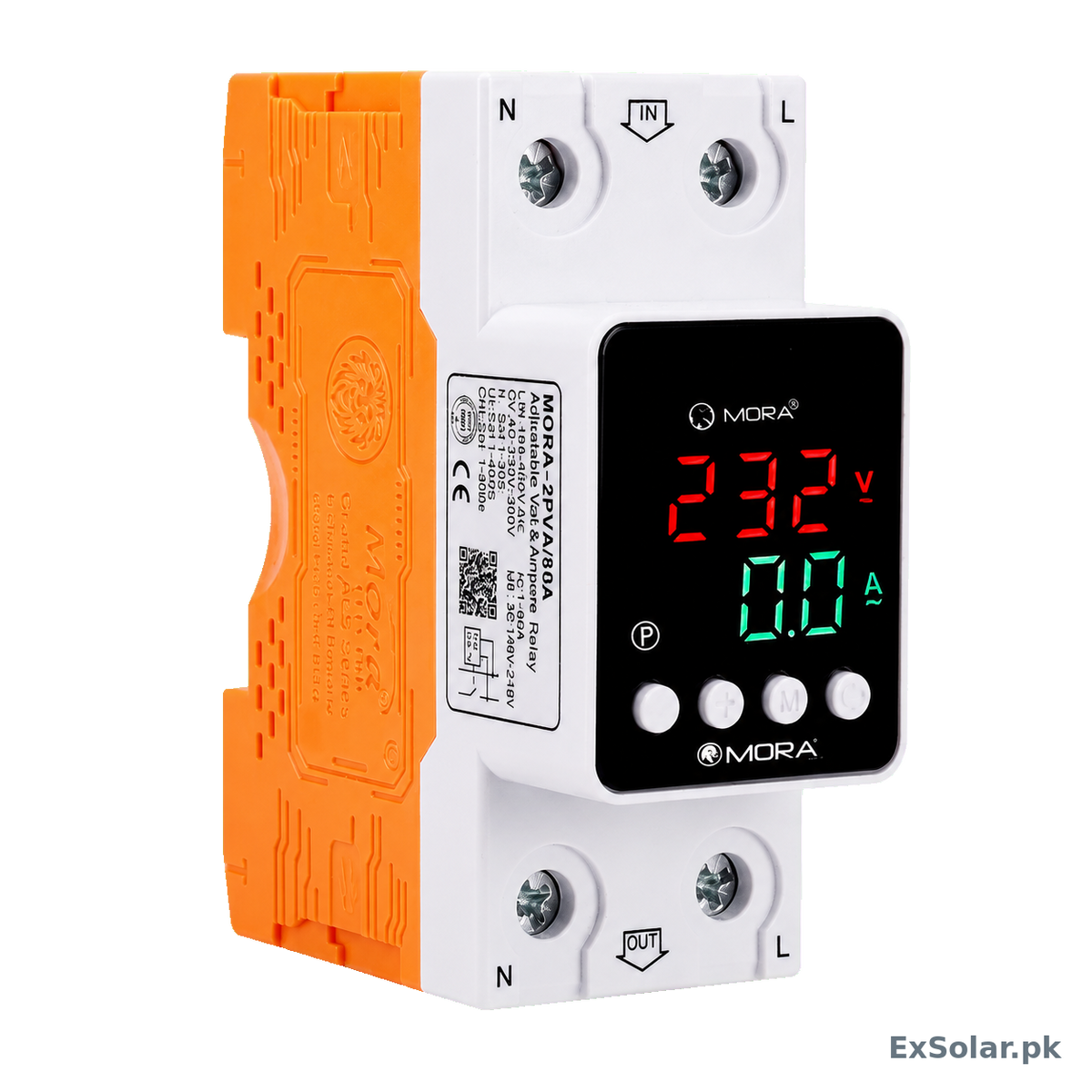

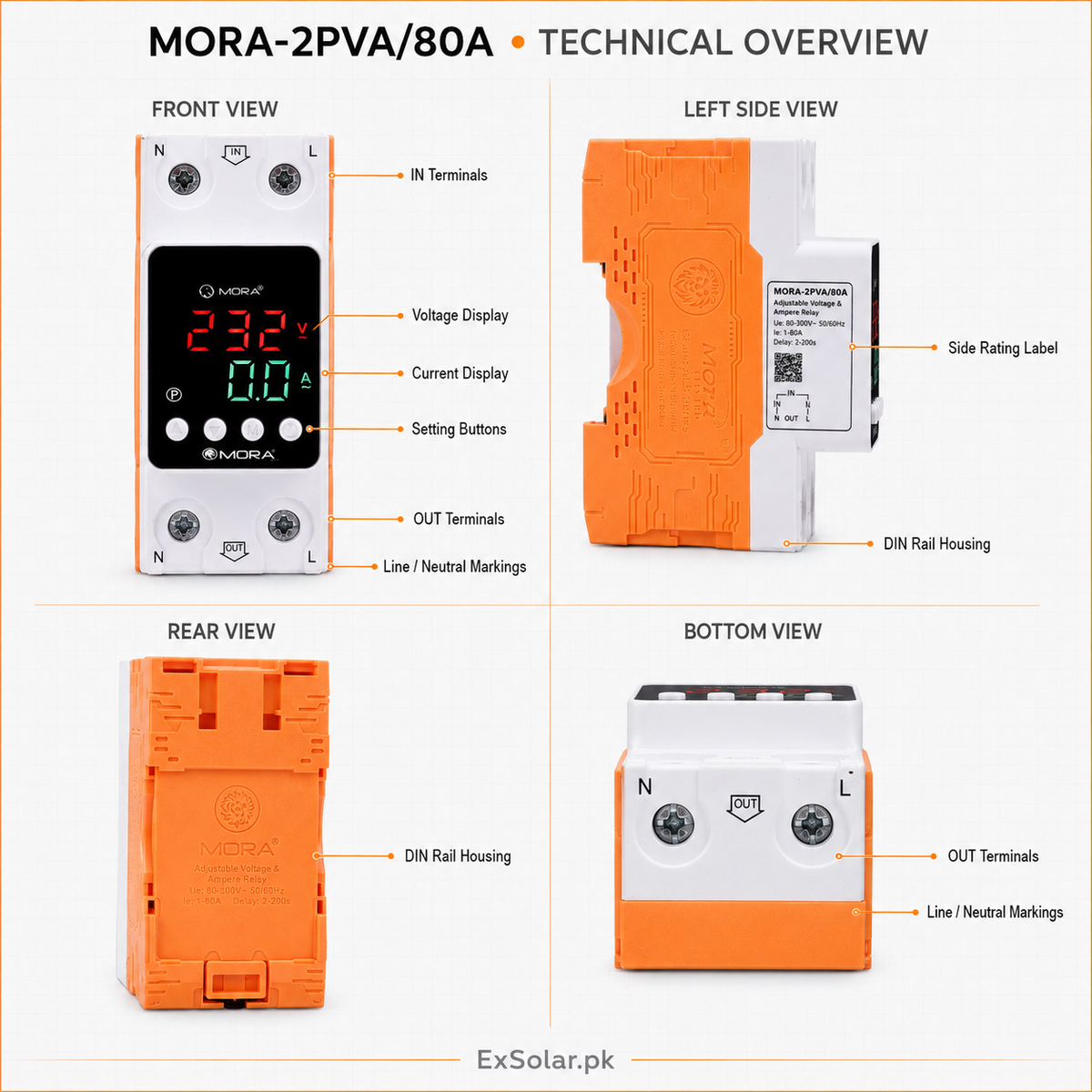

The supplied product image identifies separate Line and Neutral terminals, top IN and bottom OUT connections, and a maximum adjustable-current marking of 80A. The side label also shows over-voltage, under-voltage and timing-setting ranges. Because an exact official manufacturer datasheet or manual could not be located, these label values are not presented as independently verified manufacturer specifications.

Installation and parameter selection should be completed by a qualified electrician. The installer must verify the supply system, conductor size, load current, protection coordination, enclosure requirements and local electrical regulations before energising the device.

Key Features

• MORA-2PVA/80A adjustable voltage and ampere relay

• Two-pole Line and Neutral configuration

• Digital voltage display in red

• Digital current display in green

• Four front control and setting buttons

• Separate top IN and bottom OUT terminals

• Adjustable-current label marking from 1A to 80A

• Over-voltage adjustment marking from 230V to 300V AC

• Under-voltage adjustment marking from 140V to 210V AC

• Adjustable timing parameters shown on the side label

• Compact modular distribution-panel design

• CE and ISO 9001 markings visible on the product label

Technical Specifications

Applications

• Residential single-phase distribution panels

• Commercial shops and offices

• Appliance and equipment supply monitoring

• Areas affected by unstable AC voltage

• Main or sub-distribution protection arrangements

• Inverter or backup AC output circuits, subject to compatibility verification

• Light industrial control panels, subject to engineering approval

Box Contents

• MORA-2PVA/80A two-pole protection device — verified primary item

• Retail packaging — Not Verified

• Printed user manual — Not Verified

• DIN rail — Not Verified / not shown as included

• Additional accessories — Not Verified

Protection Features

• Adjustable over-voltage protection parameter

• Adjustable under-voltage protection parameter

• Adjustable over-current protection parameter

• Voltage and current monitoring

• Adjustable timing parameters shown on the product label

• Separate Line and Neutral connections

• Visible IN and OUT connection guidance

• Automatic disconnection/reconnection behaviour — exact sequence and settings Not Verified without an official manual

• Short-circuit interruption capability — Not Verified; upstream MCB/MCCB protection may still be required

Certifications

Warranty

Not Verified. No model-specific official warranty period or warranty document was located.
