LVTOPSUN 12V 100Ah LiFePO4 Battery — Shopify Product Data

Product Identification

• Brand: LVTOPSUN

• Product: Low-voltage LiFePO4 lithium battery

• Supplied-unit label: 12V 100Ah LiFePO4 Battery

• Energy from supplied label: approximately 1.20kWh (12V × 100Ah; calculated, not a separate manufacturer rating)

• Closest current official LVTOPSUN model: LVTS-128100-E — 12.8V, 100Ah, 1.28kWh

• Exact model number of supplied unit: Not Verified

• Category: Battery / Low Voltage Energy Storage / Backup Battery

Verification note: The supplied battery label states 12V, 100Ah, LiFePO4 and IP65. LVTOPSUN's current public LVTS-128100-E documentation states 12.8V, 100Ah, 1.28kWh and IP54. Because the supplied unit does not display a model number and its IP marking differs, the supplied unit is not represented here as definitively being LVTS-128100-E. Model-specific specifications below are clearly separated from label-verified data.

Product Title

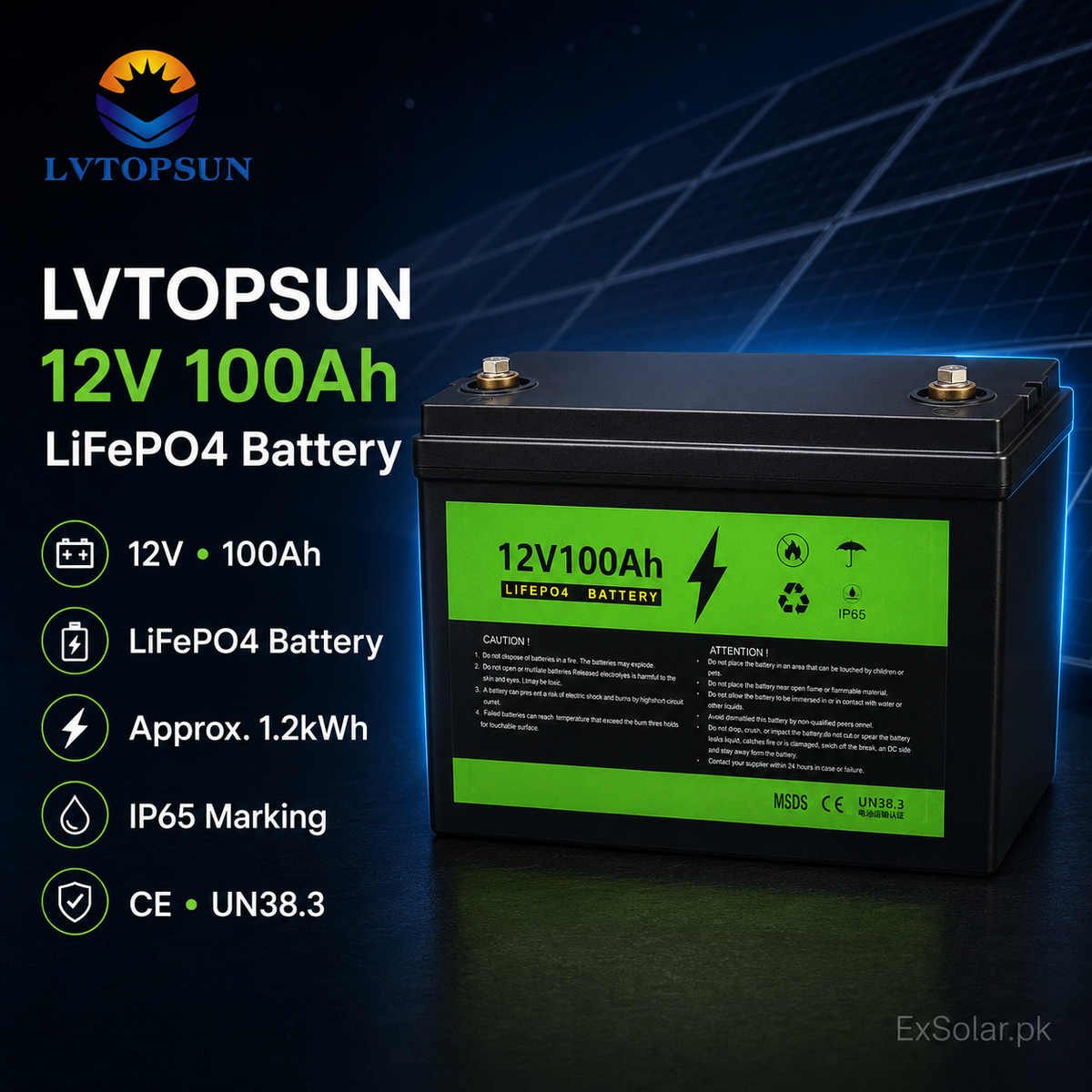

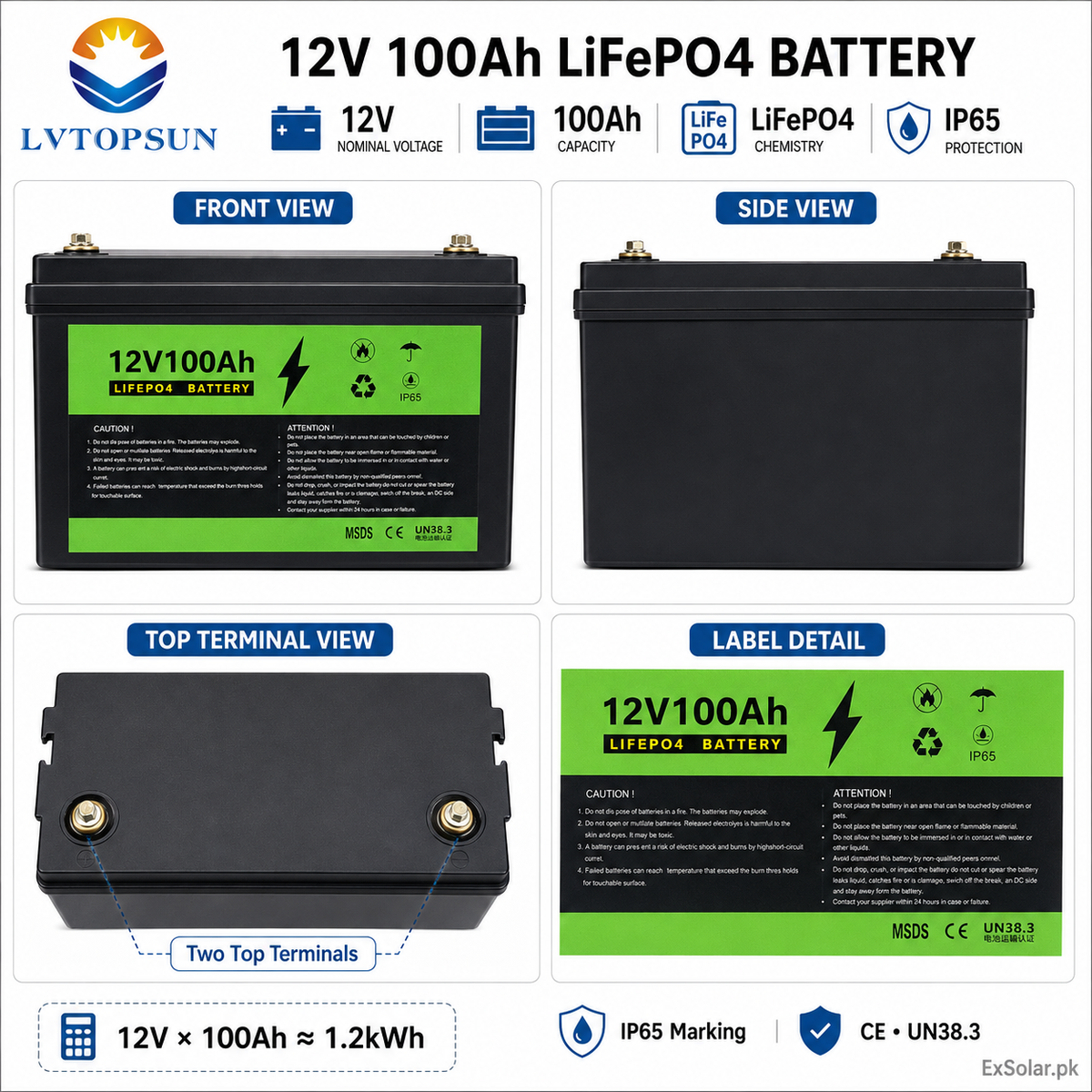

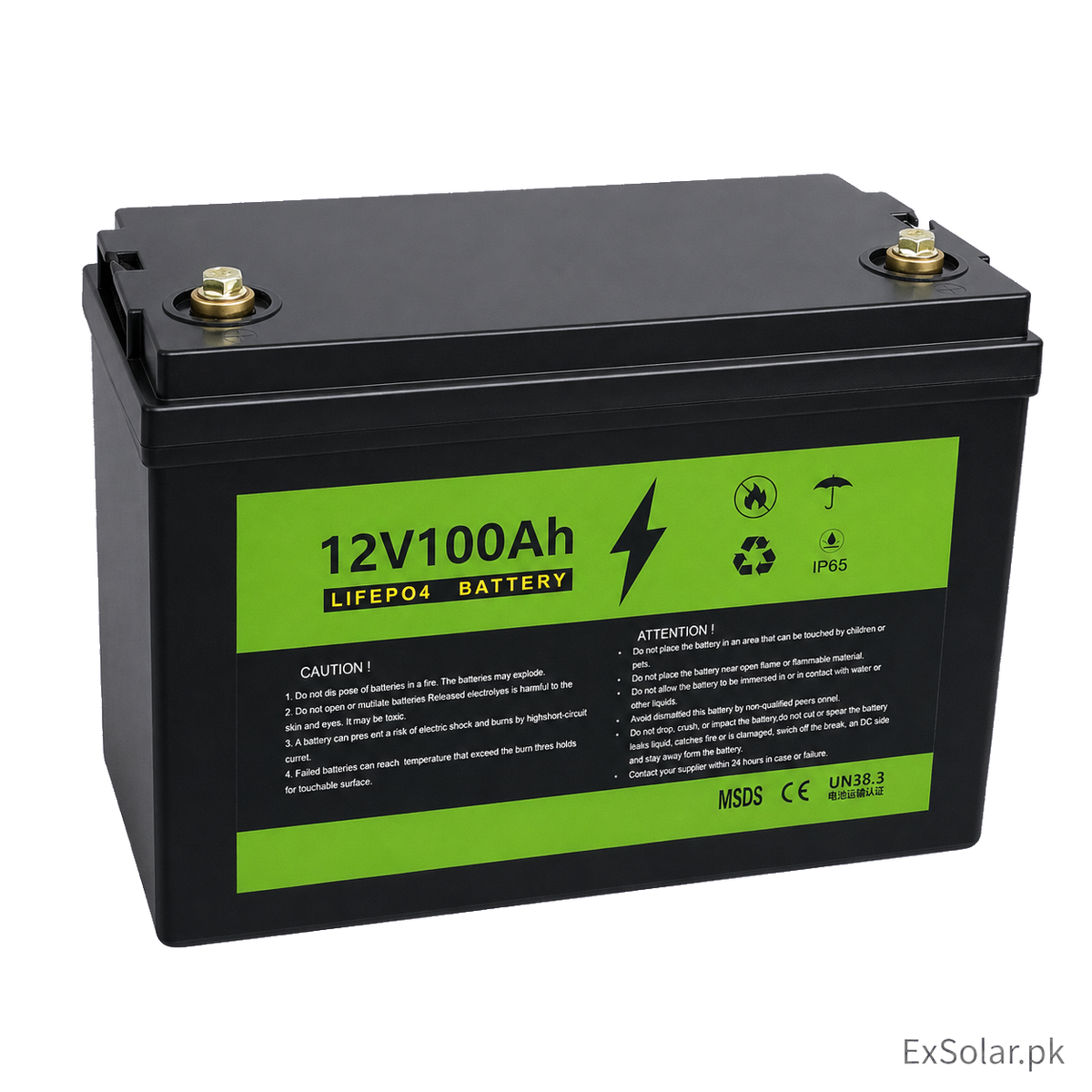

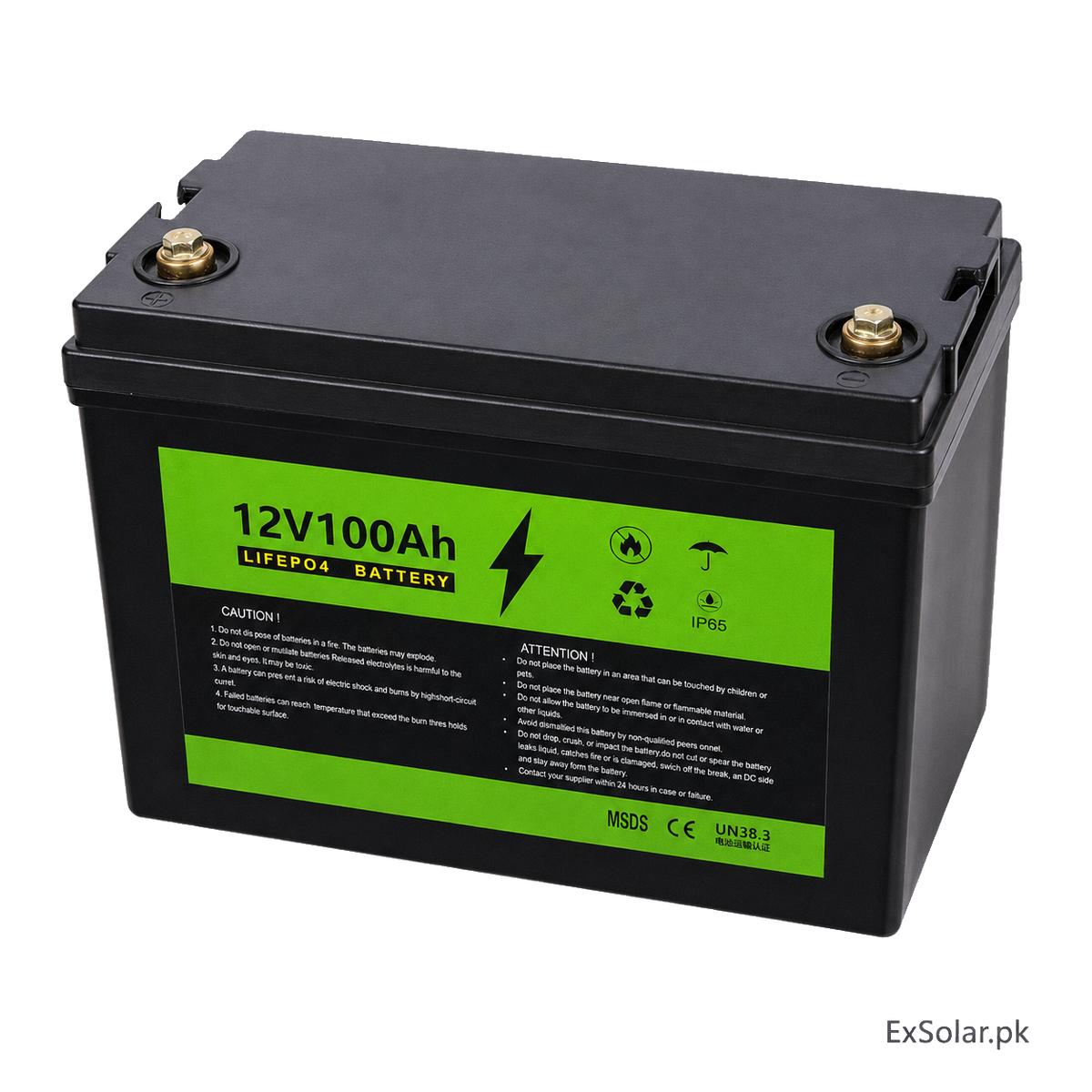

LVTOPSUN 12V 100Ah LiFePO4 Lithium Battery – 1.2kWh Class

Short Description

Compact LVTOPSUN low-voltage LiFePO4 battery for solar storage, backup and off-grid applications. The supplied unit is labeled 12V 100Ah with IP65, CE and UN38.3 markings, giving approximately 1.20kWh of nominal energy by calculation. LVTOPSUN's closest current public model is the 12.8V 100Ah LVTS-128100-E, but exact model correspondence is not verified.

Long Description

The LVTOPSUN 12V 100Ah LiFePO4 battery is a compact low-voltage energy-storage solution suited to small solar, backup and off-grid installations. The supplied product label confirms a 12V, 100Ah LiFePO4 configuration and carries IP65, CE and UN38.3 markings.

For manufacturer reference, LVTOPSUN currently publishes the LVTS-128100-E in its low-voltage ESS range. That official model is rated at 12.8V, 100Ah and 1.28kWh and is designed for residential backup, small photovoltaic systems, telecom power supplies and other off-grid applications. LVTOPSUN also specifies LiFePO4 chemistry, cobalt-free cells and series/parallel expansion for that model.

Because the supplied battery's label does not show a model number and its IP65 marking differs from the IP54 rating published for LVTS-128100-E, ExSolar.pk should not present model-specific LVTS-128100-E specifications as guaranteed for this exact unit unless the manufacturer or supplier confirms the model identity.

Key Features

• 12V nominal class shown on supplied battery label

• 100Ah capacity shown on supplied battery label

• Approximately 1.20kWh nominal energy from 12V × 100Ah calculation

• Lithium Iron Phosphate (LiFePO4) chemistry

• Low-voltage battery for energy-storage and backup applications

• IP65 marking on the supplied unit

• CE marking on the supplied unit

• UN38.3 marking on the supplied unit

• Robust enclosed battery form factor with top terminals

• Closest official LVTOPSUN 12.8V 100Ah product: LVTS-128100-E

• Official LVTS-128100-E supports residential backup, small PV, telecom and off-grid use

• Official LVTS-128100-E is specified as cobalt-free LiFePO4

Technical Specifications

Applications

• Residential backup power

• Small-scale photovoltaic / solar storage systems

• Off-grid energy systems

• Telecom power supplies

• Small office and shop backup systems

• Low-voltage renewable-energy storage

The first four applications are specifically described by LVTOPSUN for the LVTS-128100-E product class; suitability of any load or inverter must be checked against the exact battery/inverter requirements.

Box Contents

• Battery module: Not Verified as packaged box content (product is shown in supplied photos)

• Cables: Not Verified

• User manual: Not Verified

• Mounting/installation accessories: Not Verified

• Warranty card: Not Verified

Protection Features

• Overcharge prevention — described by LVTOPSUN for LVTS-128100-E

• Deep-discharge prevention — described by LVTOPSUN for LVTS-128100-E

• Over-current protection — Not Verified for supplied unit

• Short-circuit protection — Not Verified for supplied unit

• Over-temperature protection — Not Verified for supplied unit

• Battery-management-system details for supplied unit — Not Verified

Certifications / Markings

• CE — shown on supplied label and listed for LVTS-128100-E

• UN38.3 — shown on supplied label and listed for LVTS-128100-E

• MSDS — marking shown on supplied label; supporting document Not Verified

• IP65 — ingress-protection marking shown on supplied unit; conflicts with the IP54 rating of the current LVTS-128100-E datasheet

Warranty

The official LVTS-128100-E product parameter sheet states a 5-year warranty for that model. Warranty coverage for the supplied 12V/IP65 unit and Pakistan market is Not Verified.
