JOCA 6mm² H1Z2Z2-K XLPO Solar Cable — 90 Meter Coil

Product Identification

The technically correct material abbreviation is XLPO (cross-linked polyolefin), not “XPLO.”

Product Title

JOCA 6mm² H1Z2Z2-K XLPO Solar Cable — 90 Meter Coil

Short Description

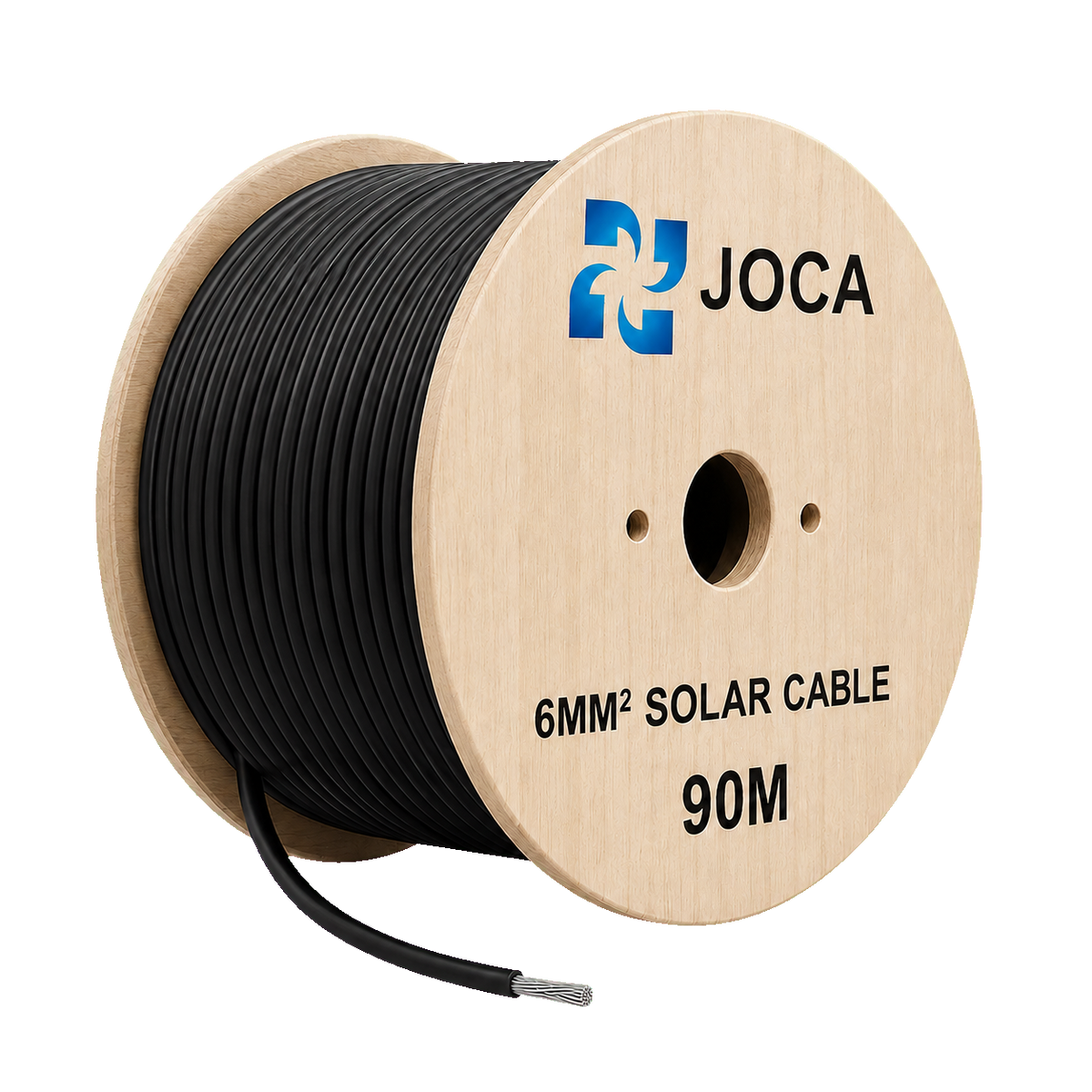

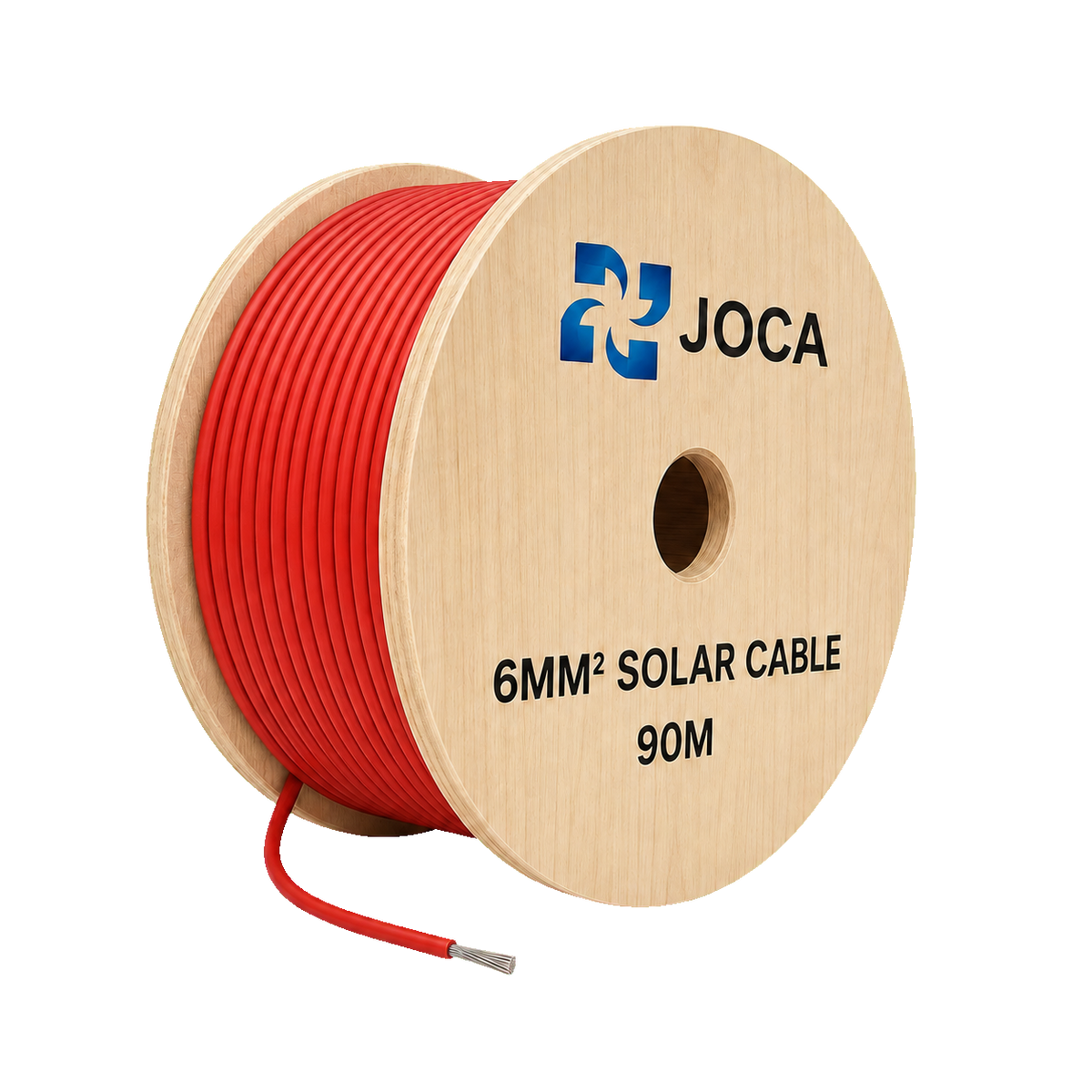

JOCA 6mm² single-core photovoltaic cable is designed for 1500V DC solar installations. It features a flexible Class 5 tinned-copper conductor with halogen-free, electron-beam cross-linked XLPO insulation and outer sheath. This ExSolar.pk SKU is offered as a 90-meter red or black coil.

Long Description

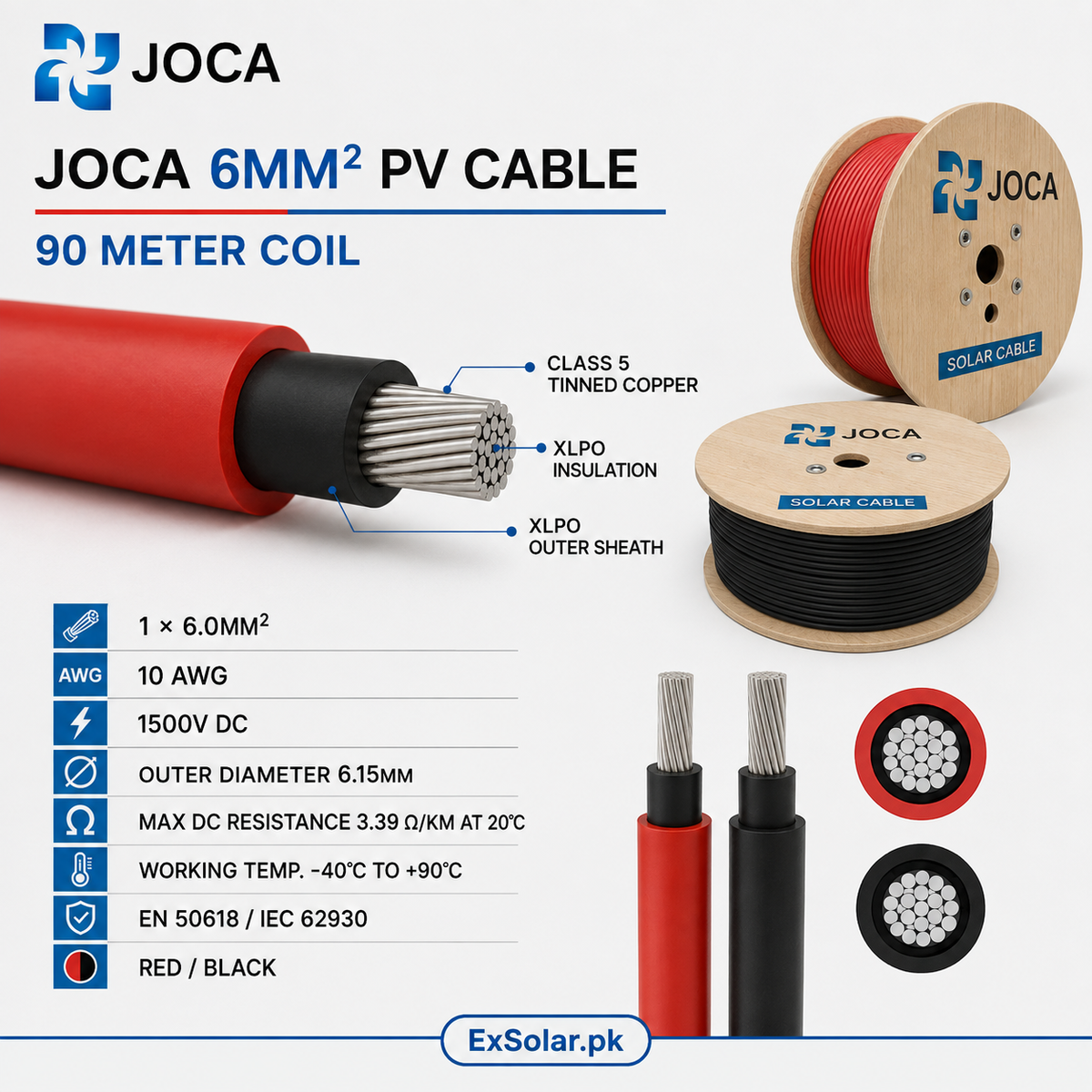

The JOCA 6mm² solar cable provides a robust DC cabling solution for photovoltaic module, string, combiner and inverter connections. Its flexible 1 × 6.0mm² Class 5 tinned-copper conductor supports reliable installation and corrosion resistance, while the double XLPO construction provides durable electrical insulation and environmental protection.

JOCA specifies the cable for up to 1500V DC and publishes compliance with IEC 62930 and EN 50618. The official manufacturer data lists resistance to UV, ozone and hydrolysis, a working-temperature range from -40°C to +90°C, and an expected service life of at least 25 years. Red and black sheath options assist with polarity identification in professionally designed PV systems.

This listing identifies the retail package as a 90-meter coil based on the supplied ExSolar.pk SKU information. JOCA's official packing table lists other standard pack lengths, so the 90-meter pack length should be confirmed against local stock before publishing inventory-sensitive content.

Cable sizing, ampacity, connector selection, routing and derating must be confirmed by a qualified solar installer according to the project design and applicable electrical codes.

Key Features

• 6mm² single-core photovoltaic cable

• 90-meter retail coil supplied for this SKU

• H1Z2Z2-K solar-cable construction

• Rated for up to 1500V DC

• Flexible Class 5 tinned-copper conductor

• 78 × 0.29mm conductor-strand construction

• Halogen-free electron-beam cross-linked XLPO insulation

• Flame-retardant XLPO outer sheath

• Red and black color variants

• UV, ozone and hydrolysis resistant

• Working-temperature range from -40°C to +90°C

• Suitable for rooftop, ground-mounted and floating photovoltaic systems

Technical Specifications

Applications

• Residential rooftop photovoltaic systems

• Commercial solar installations

• Industrial photovoltaic plants

• Ground-mounted solar arrays

• Floating photovoltaic systems

• Solar-module interconnection

• String, combiner and inverter-side DC wiring where approved by the system designer

• Agricultural solar and pumping systems

Box Contents

• 1 × JOCA 6mm² solar cable coil in the selected red or black color

• Retail length: 90 meters, based on supplied SKU information

• Connectors, lugs, crimp tools and accessories: Not Verified / not stated as included

Protection Features

• UV resistance

• Ozone resistance

• Hydrolysis resistance

• Weather resistance

• Ad8 water performance

• Halogen-free insulation and sheath

• Flame-retardant outer-sheath compound

• Low-smoke / halogen-performance standards listed by JOCA

• High- and low-temperature performance

Certifications and Standards

• IEC 62930

• EN 50618

• EN / IEC 60228 Class 5 conductor

• TÜV

• CE

• RoHS

• UL (listed by manufacturer)

• EN 60332-1-2

• EN 50575 CPR Cca

• IEC / EN 60754-2

• Ad8 water performance

Warranty

Not Verified. JOCA publishes an expected service life of at least 25 years, but an official commercial warranty applicable to this 90-meter Pakistan retail SKU was not verified. Expected service life must not be presented as a warranty.
