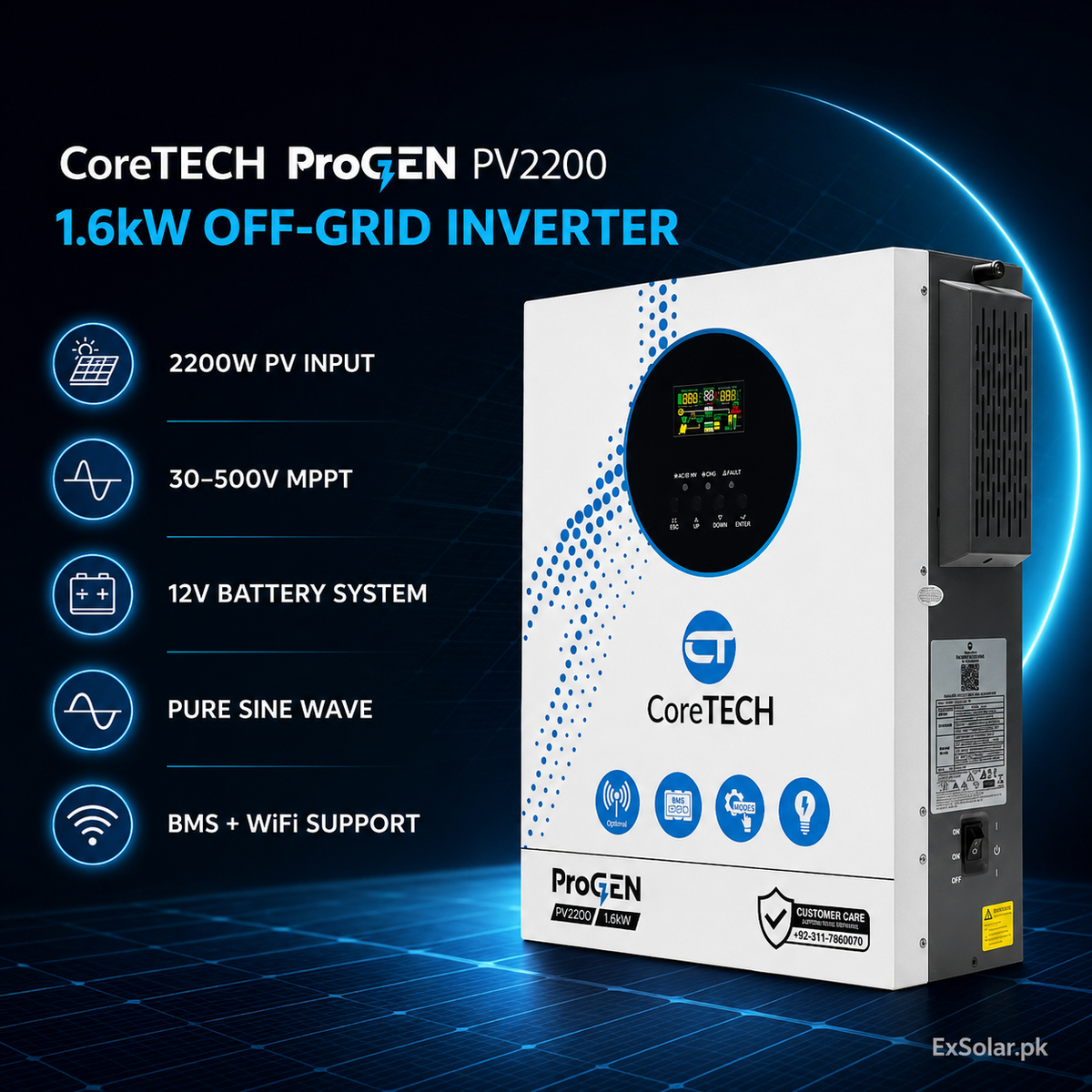

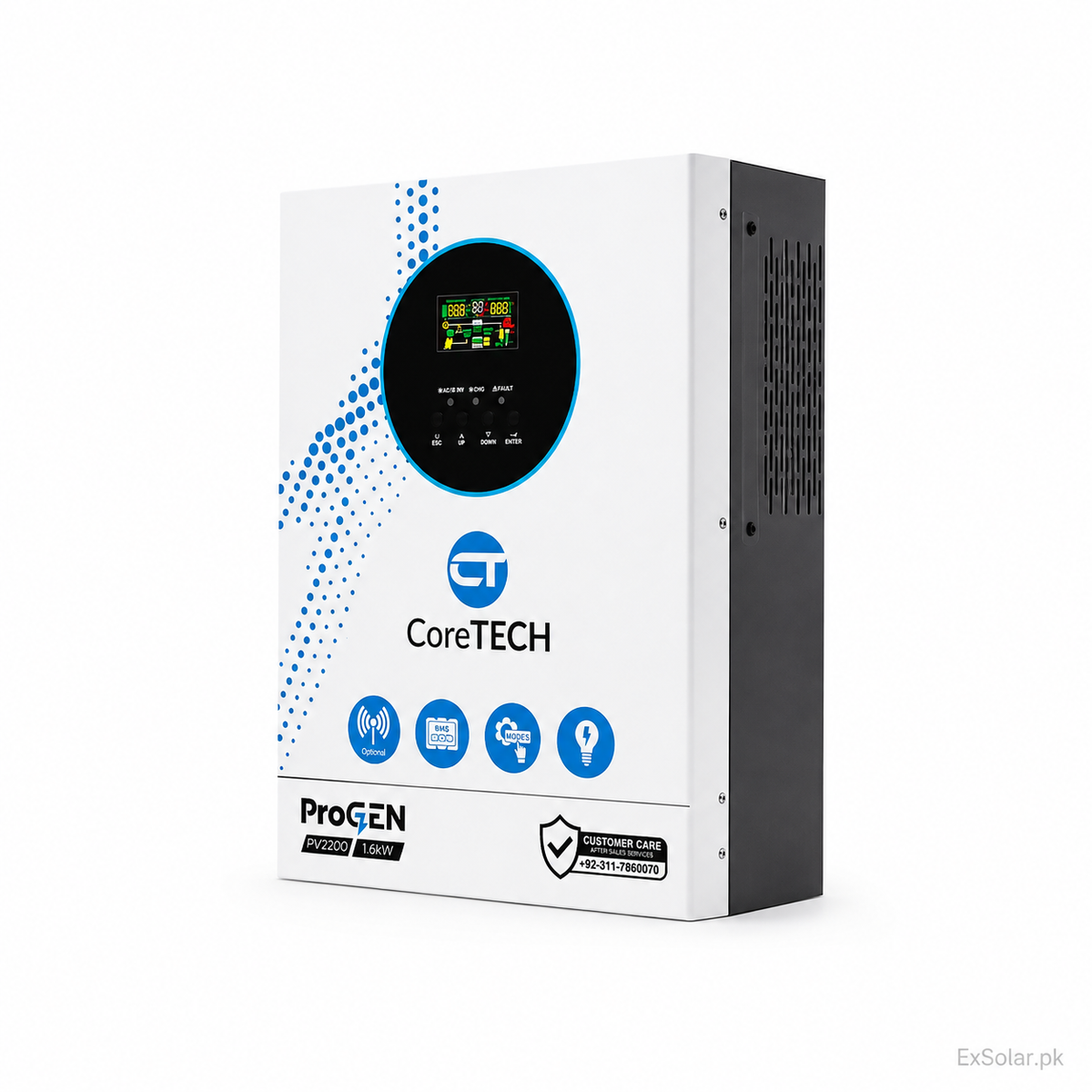

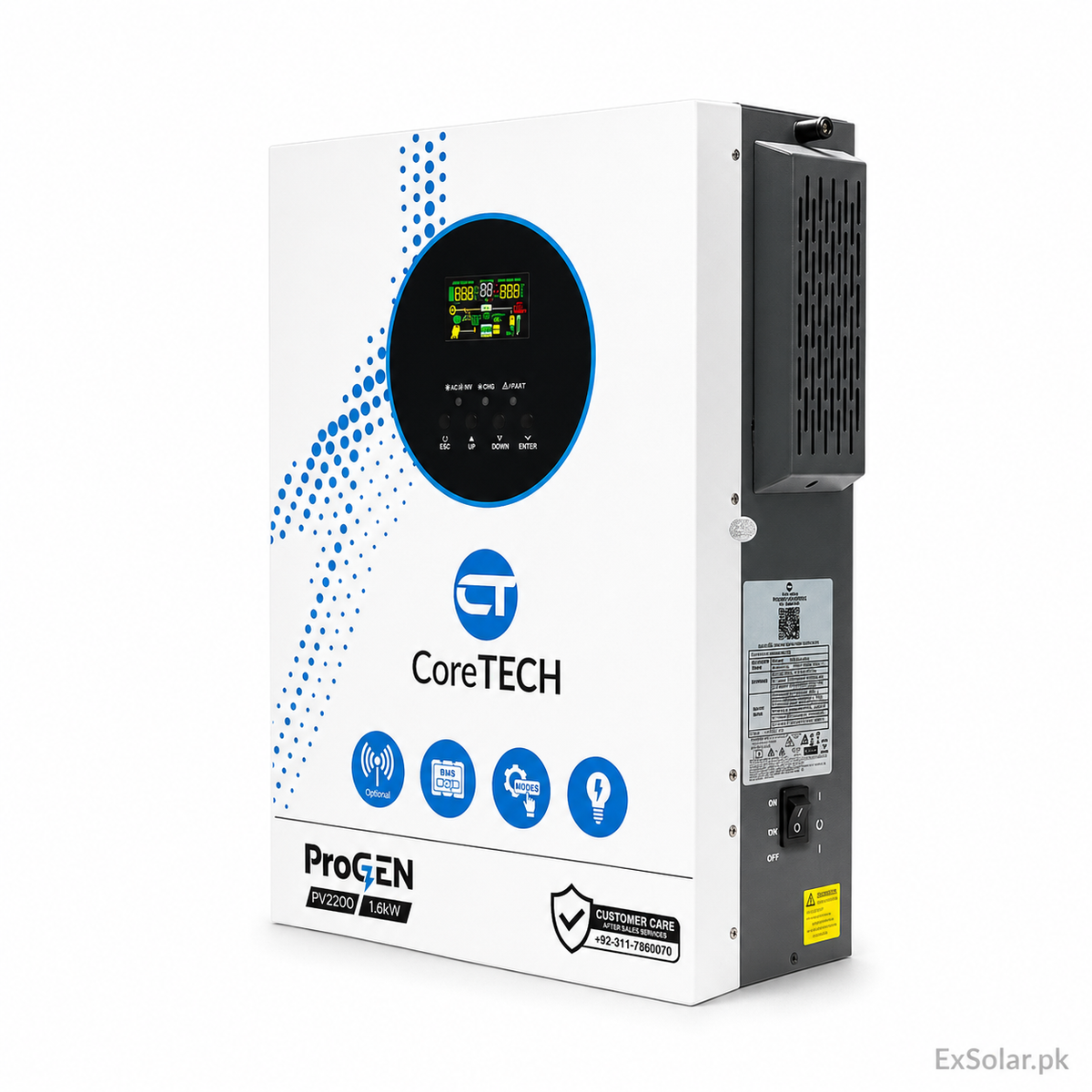

CoreTECH ProGEN PV2200 1.6kW 12V Off-Grid Solar Inverter with MPPT
Rs.55,000.00
Rs.65,000.00
-15%
Product Identification Field Result Exact Product CoreTECH ProGEN PV2200 1.6kW Model CT2012 Category Solar Inverter / Inverter-Charger Type Off Grid Phase Single Phase Series ProGEN Protection Rating IP21 Product Title CoreTECH ProGEN PV2200 1.6kW 12V Off-Grid Solar Inverter with MPPT Short Description The CoreTECH...
Limited-time offer
Secure today's product price
00
Hours
:
00
Mins
:
00
Secs
ā
High efficiency performance
ā
Advanced protection
ā
Reliable long service life
ā
Professional solar compatibility
Fast Delivery
Delivery availability across Pakistan
Secure Shopping
Safe and protected ordering
Expert Support
Professional product assistance
Premium Solar Technology
Genuine Product
Secure Shopping
Nationwide Delivery
Expert Support
Complete product information
Everything You Need to Know
Clear product details, technical specifications, warranty information and professional installation guidance.
Product overview
01
CoreTECH ProGEN PV2200 1.6kW 12V Off-Grid Solar Inverter with MPPT
Product Identification
| Field | Result |
|---|---|
| Exact Product | CoreTECH ProGEN PV2200 1.6kW |
| Model | CT2012 |
| Category | Solar Inverter / Inverter-Charger |
| Type | Off Grid |
| Phase | Single Phase |
| Series | ProGEN |
| Protection Rating | IP21 |
Product Title
CoreTECH ProGEN PV2200 1.6kW 12V Off-Grid Solar Inverter with MPPT
Short Description
The CoreTECH ProGEN PV2200 is a compact 1.6kW off-grid solar inverter featuring 2200W PV input, a wide 30ā500V MPPT range, pure sine-wave output, a 12V battery system and BMS/WiFi communication support.
Long Description
The CoreTECH ProGEN PV2200 delivers 1600W rated pure sine-wave output for compatible household appliances, electronics and essential backup loads. Its integrated MPPT charger supports up to 2200W of solar input with a wide 30ā500VDC tracking range.
Users can configure charging current, source priority, input mode and battery settings through the LCD interface. Communication provisions include RS232, lithium-battery BMS/RS485, optional WiFi-card support and dry contact. Installation and PV-string design must be completed by qualified personnel according to the official manual.
Key Features
- 1600W rated pure sine-wave output
- 2200W maximum PV input
- 30ā500VDC MPPT operating range
- 500VDC maximum PV input voltage
- 12VDC battery system
- 3200VA peak output
- Up to 100A PV charging
- Up to 60A AC charging
- UPS and appliance input modes
- 10ms/20ms transfer time
- LCD system monitoring
- BMS, RS232, WiFi-card and dry-contact support
Technical Specifications
| Specification | Official Value |
|---|---|
| Rated Output | 1600W |
| Peak Power | 3200VA |
| Maximum PV Power | 2200W |
| Rated AC Input | 220/230/240VAC |
| APL Input Range | 90ā280VAC Ā±3V |
| UPS Input Range | 170ā280VAC Ā±3V |
| Output Voltage | 220/230/240VAC Ā±5% |
| Output Frequency | 50/60Hz Ā±0.1% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms UPS; 20ms APL |
| Peak Efficiency | 94% in battery mode |
| Battery Voltage | 12VDC |
| Battery Support | AGM, flooded, user-defined and compatible lithium profiles |
| MPPT Range | 30ā500VDC |
| Recommended PV Voltage | 300ā400VDC |
| Maximum PV Voltage | 500VDC |
| Maximum PV Charging | 100A |
| Maximum AC Charging | 60A |
| Maximum Total Charging | 100A |

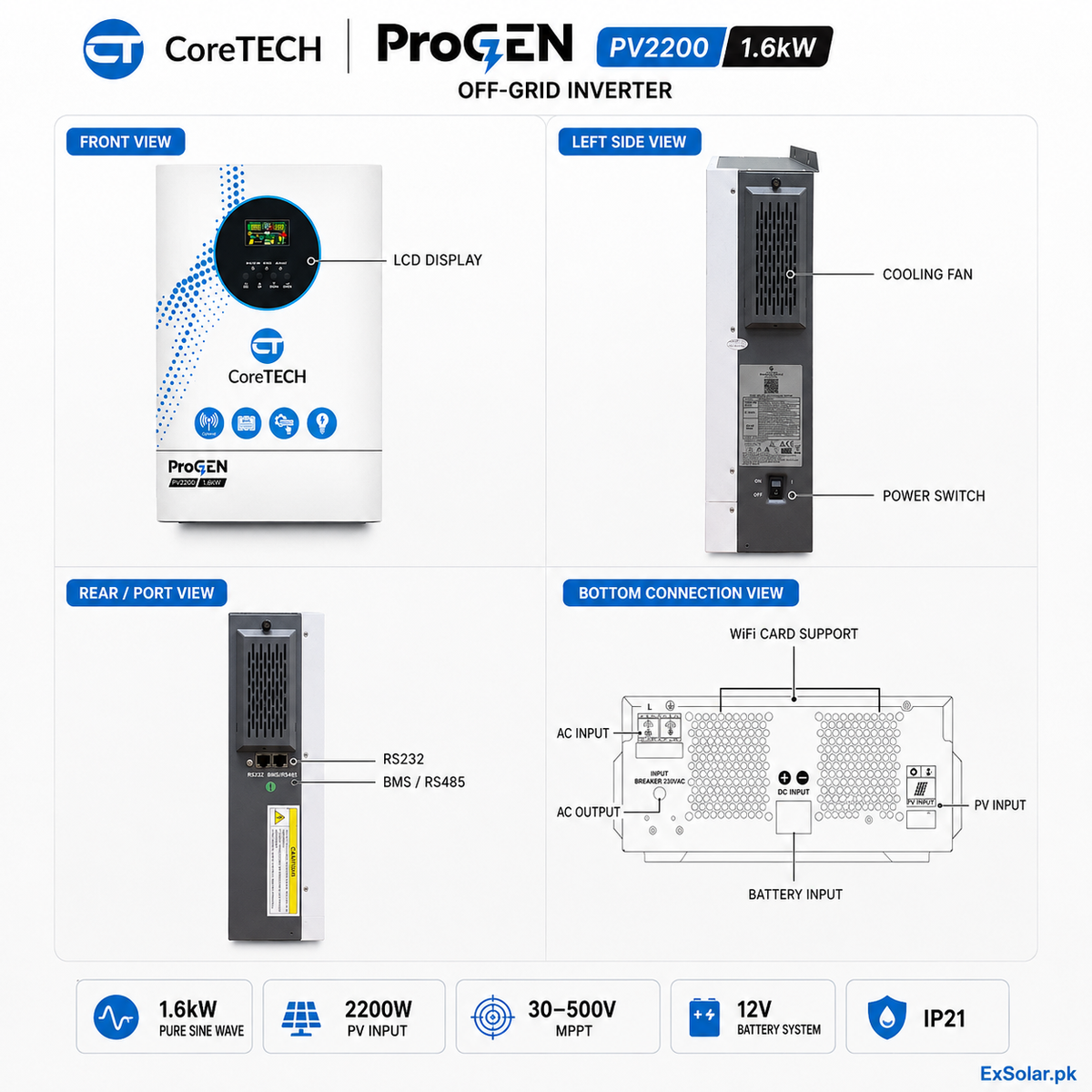

| Communication | RS232, BMS/RS485, optional WiFi card, dry contact |
| Parallel Operation | Not supported |
| Cooling | Fan |
| Operating Temperature | ā10Ā°C to 50Ā°C |
| Humidity | 20%ā95%, non-condensing |
| Noise | ā¤50dB |
| IP Rating | IP21 |
| Dimensions | Not Verified |
| Weight | Not Verified |
| Official Warranty | 2 years* |
Specifications were verified from the official product page, official datasheet and official user manual.
Applications
- Residential solar backup
- Small offices and retail shops
- Lights, fans and compatible appliances
- Essential electronics backup
- Solar-plus-battery installations
- Utility or generator-supported off-grid systems
- Compatible lithium-battery systems with BMS
Box Contents
- CoreTECH ProGEN PV2200 inverter Ć1
- User manual Ć1
- Other loose accessories: Not Verified
The manual references a supplied communication cable and 150A battery-supply fuse, but these are not included in its formal unpacking list.
Protection Features
- Output overload protection
- Over-temperature protection
- Output short-circuit protection
- Over-current/surge fault protection
- Battery high/low-voltage protection
- Battery overcharge alarm
- PV over-voltage monitoring
- Output over/under-voltage monitoring
- DC-bus high/low-voltage monitoring
- Fan-lock monitoring
- Configurable restart after overload
- Configurable restart after over-temperature
- 150A battery-supply fuse stated in manual
Certifications
Not Verified for CT2012. CoreTECH publishes general certifications, but the official product documents do not associate specific certificates with this exact model.
Warranty
2 years* according to the official manufacturer product page. Complete terms and exclusions are not published on that page.
