CNC Electric YCBZ 63A 2-Pole Manual Changeover Switch – 230/400V AC I–0–II

Product Identification

Important: This product is a manual changeover switch used as a switch-disconnector under normal circuit conditions. The official YCBZ page does not list overload, short-circuit, residual-current or surge protection for this device. Correct upstream circuit protection and installation by a qualified electrician are required.

Product Title

CNC Electric YCBZ 63A 2-Pole Manual Changeover Switch – 230/400V AC I–0–II

Short Description

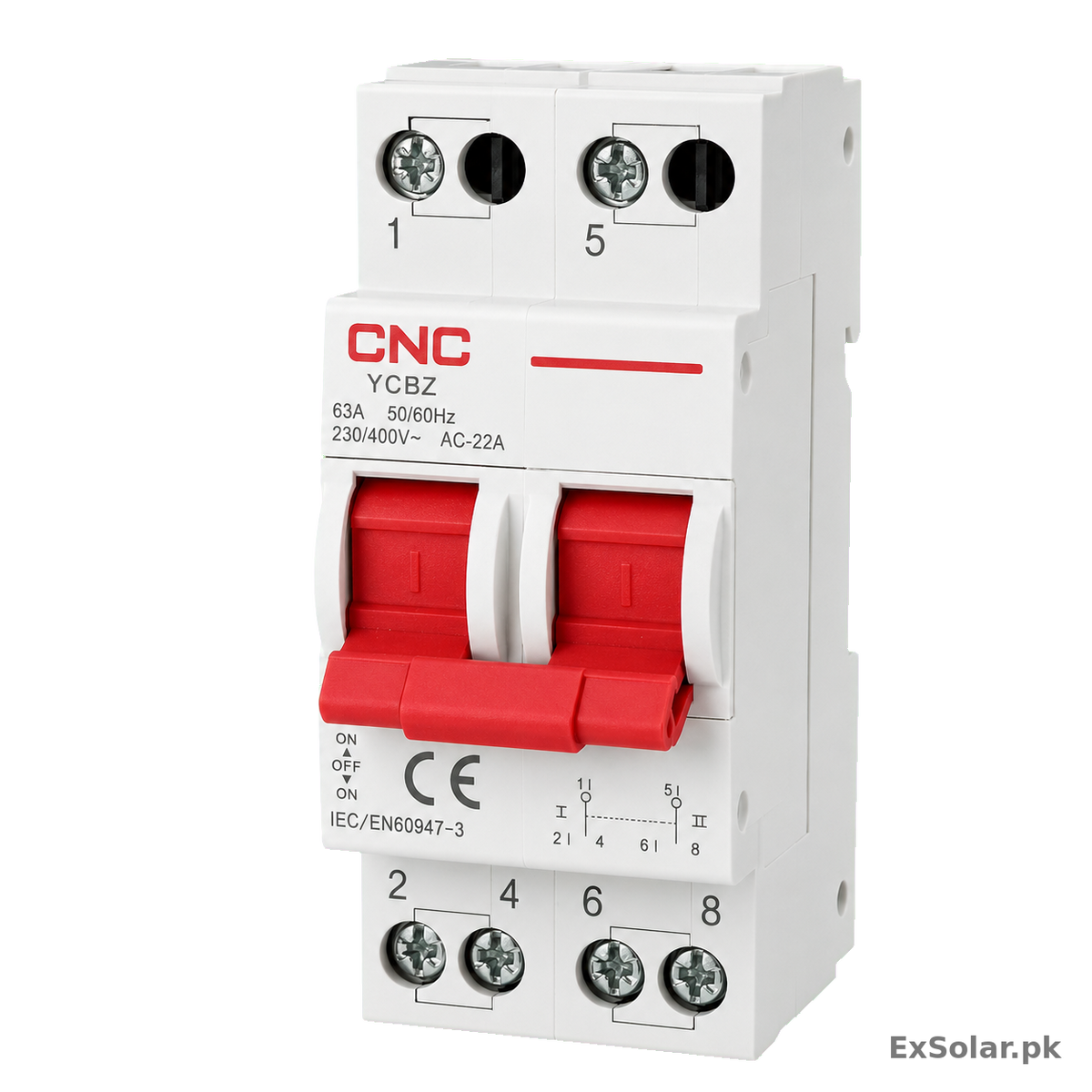

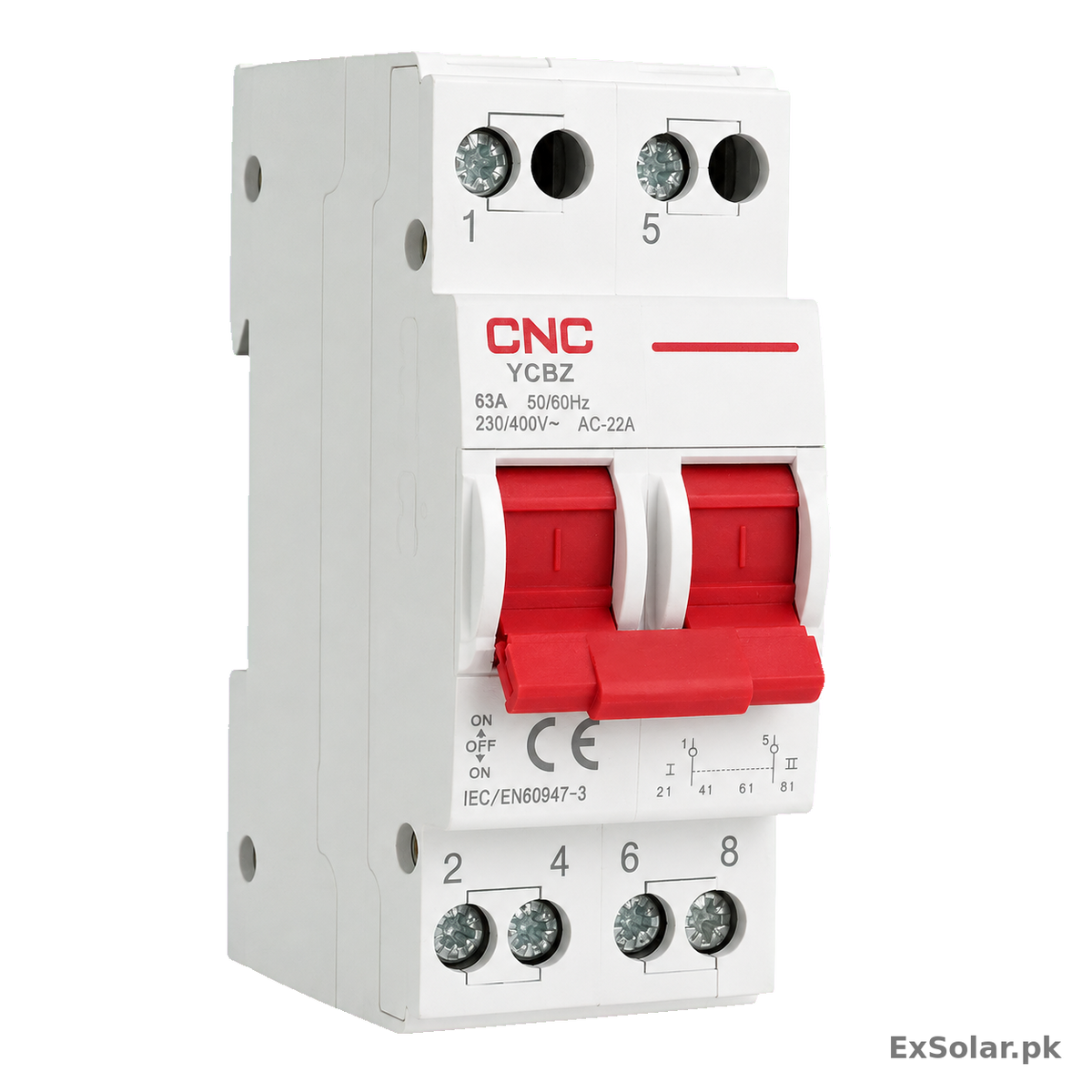

The CNC Electric YCBZ 63A 2-pole manual changeover switch provides deliberate I–0–II selection between two AC power sources. The supplied unit is marked 230/400V AC, 50/60Hz and AC-22A, with a linked red operating handle and eight numbered terminals.

Long Description

Designed for controlled manual source selection, the CNC Electric YCBZ 63A changeover switch allows a connected load circuit to be switched between two independent AC supplies. Its three-position I–0–II mechanism provides Source I, centre-off isolation and Source II selection through a linked red two-pole operating handle.

CNC Electric's official YCBZ product page classifies the series as a changeover switch used as a switch-disconnector and states compliance with IEC 60947-3. The official series supports 63A, 80A, 100A and 125A ratings, 1P to 4P configurations, 50/60Hz operation and 1–0–2 contact form. The attached 63A 2P unit is marked 230/400V AC and AC-22A.

The switch is appropriate for professionally designed utility/generator, utility/inverter and other dual-source AC systems requiring manual transfer. It does not automatically detect source failure or transfer the load. Enclosure selection, upstream protection, cable sizing, earthing and installation must follow the applicable electrical code.

Key Features

• Genuine CNC Electric YCBZ series design

• 63A rated-current variant

• 2-pole manual source switching

• Three-position I–0–II / 1–0–2 operation

• 230/400V AC marking on the supplied product

• 50/60Hz operation

• AC-22A utilization-category marking

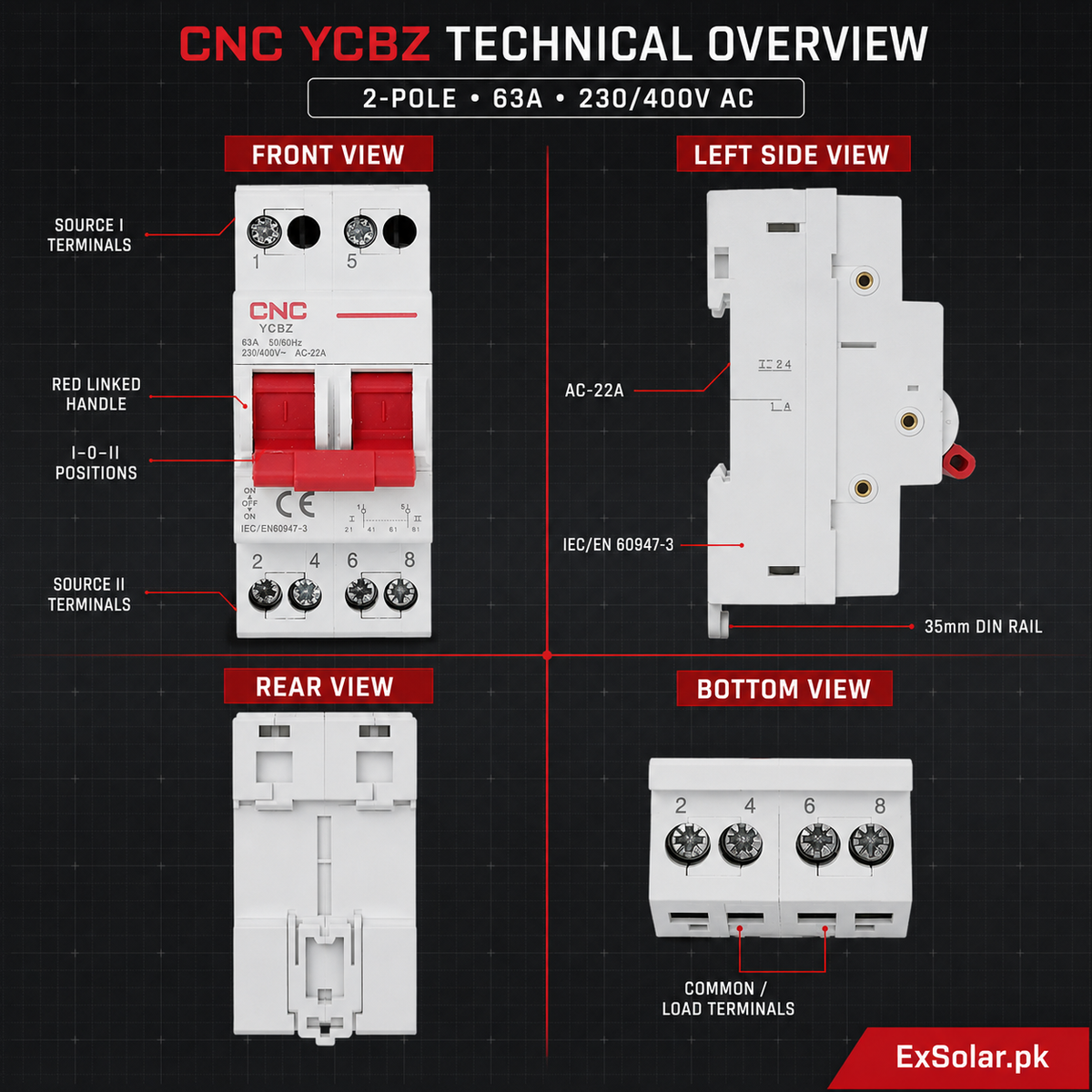

• Linked red two-pole operating handle

• Eight numbered terminal positions

• IEC/EN 60947-3 product marking

• IP20 series protection degree

• 35mm DIN-rail mounting with fast clip

Technical Specifications

Voltage Marking Note

The supplied product is marked 230/400V AC, while CNC Electric's current official YCBZ-125 series page lists 240/415V AC. This may represent a label or market-version difference. Confirm the nameplate on delivered stock before installation.

Applications

• Manual utility-to-generator changeover

• Manual utility-to-inverter changeover

• Residential backup-power systems

• Commercial backup-power distribution

• Solar-supported AC systems with appropriate engineering

• Essential-load source selection

• Distribution boards and control panels

• Systems requiring centre-off source isolation

Box Contents

• CNC Electric YCBZ 63A 2-pole changeover switch: Not Verified as official package content

• User / installation manual: Not Verified as included in the retail box

• Mounting accessories: Not Verified

Protection and Functional Features

• Manual two-source selection

• Linked two-pole operation

• Centre-off position

• Switch-disconnector function under normal conditions

• DIN-rail installation

Not verified as included: overload protection, short-circuit protection, residual-current/leakage protection, surge protection, voltage protection, automatic source detection or automatic transfer.

Certifications and Standards

• IEC 60947-3: stated by CNC Electric

• IEC/EN 60947-3 marking: visible on supplied product

• CE mark: visible on supplied product

• Certificate number / downloadable conformity certificate for this exact variant: Not Verified

• RoHS: Not Verified

Warranty

Official warranty period specifically assigned to this exact YCBZ 63A 2P variant: Not Verified.
