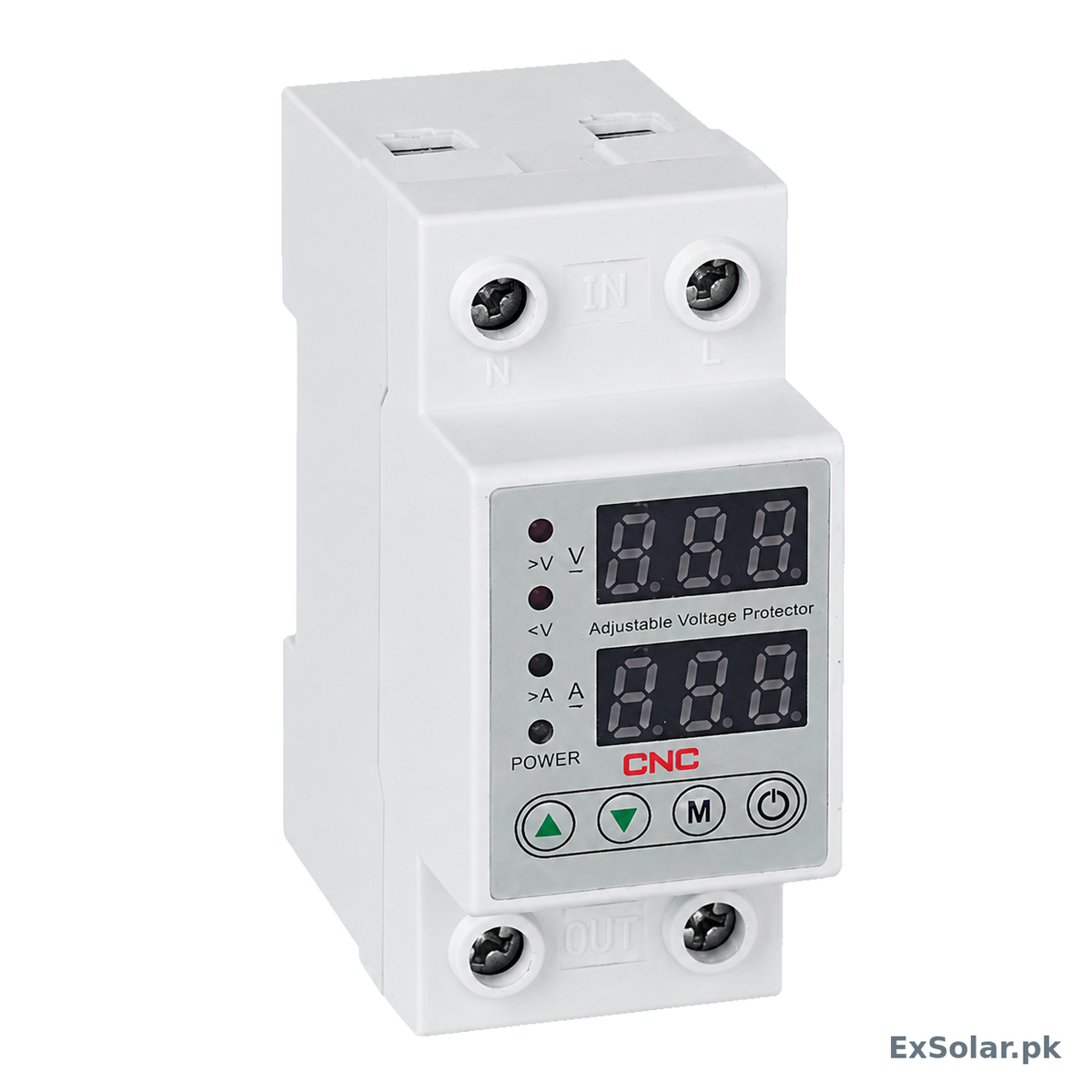

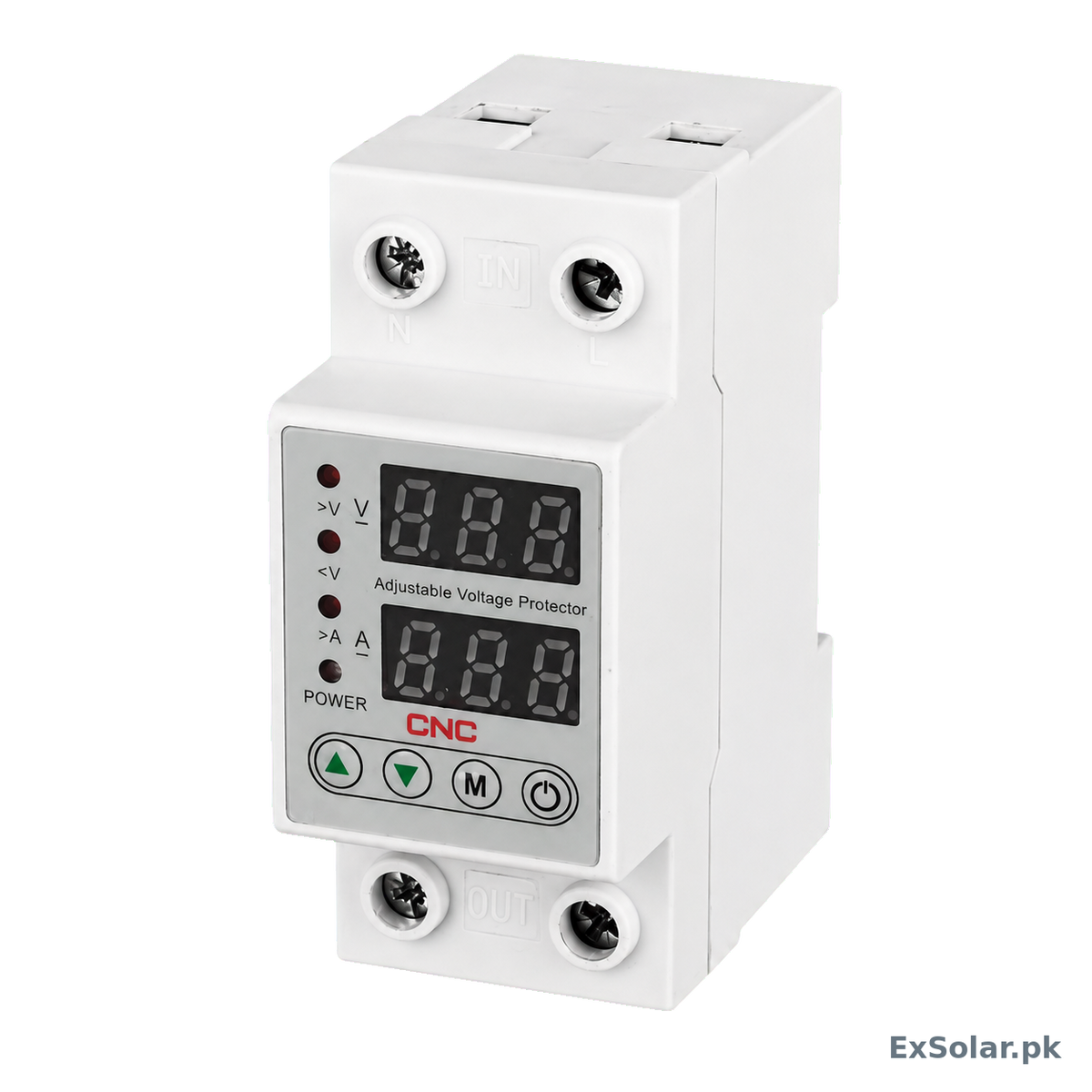

CNC Electric YC6VA 2-Pole Adjustable Voltage & Current Protection Relay

Product Identification

Important: YC6VA is a voltage/current monitoring protection relay. The official documents specify a 1NO relay output but do not give it the short-circuit interrupting function of an MCB or the earth-leakage function of an RCCB/RCBO. Use suitable upstream protection selected by a qualified electrician.

Product Title

CNC Electric YC6VA 2-Pole Adjustable Voltage & Current Protection Relay

Short Description

The CNC Electric YC6VA is a microprocessor-based protection relay for single-phase AC networks. It monitors and displays voltage and current, provides adjustable over-voltage, under-voltage and over-current protection, and automatically reconnects the load after normal supply conditions return.

Long Description

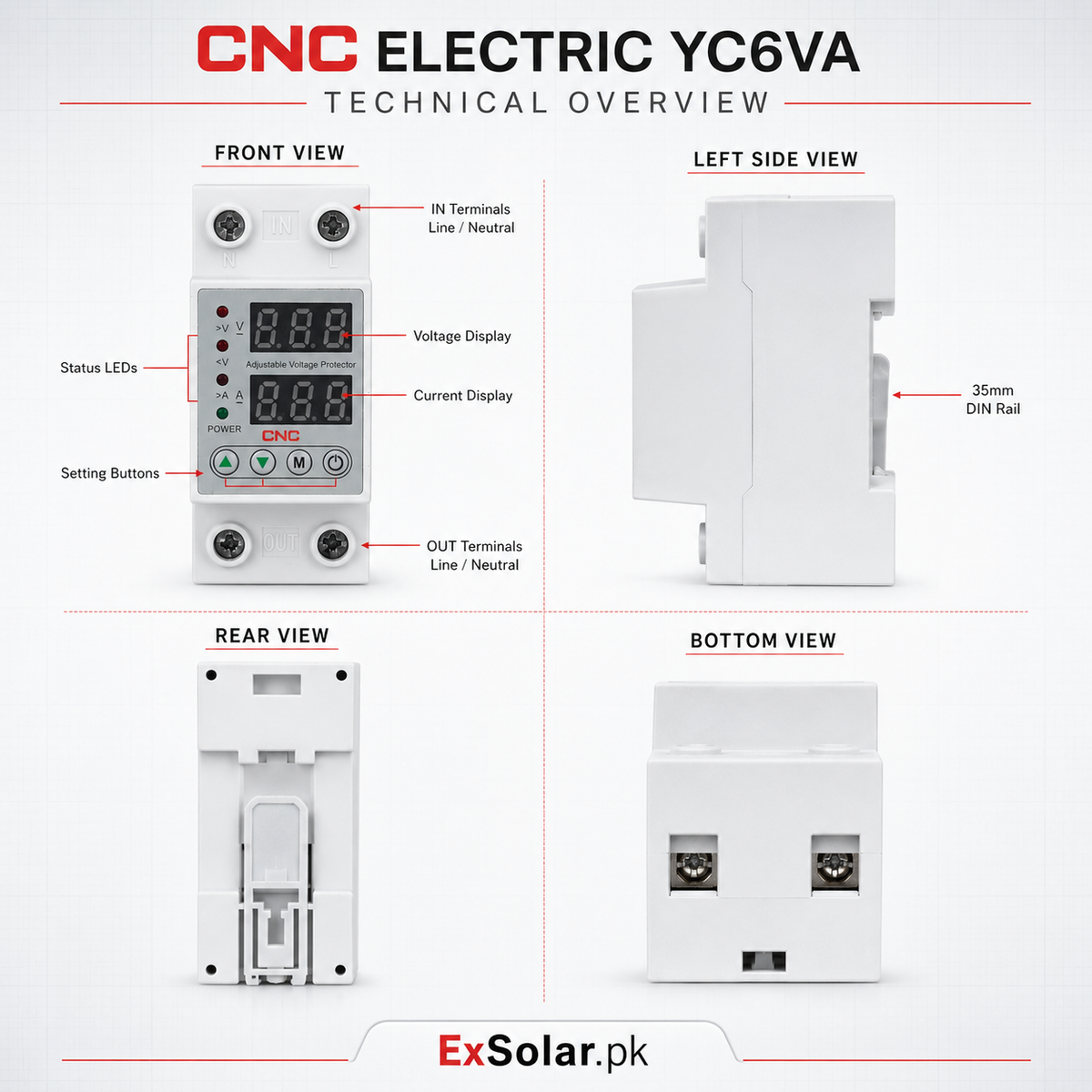

The CNC Electric YC6VA combines real-time voltage and current monitoring with adjustable protection in a compact two-module DIN-rail enclosure. Designed for single-phase AC distribution, it analyses the incoming supply and disconnects the load through an electromagnetic relay when voltage or current exceeds the programmed limits.

Users can configure over-voltage, under-voltage, over-current, trip timing, recovery delay and power-on delay settings from the front controls. The dual digital display provides clear voltage and current readings, while dedicated status indicators show over-voltage, under-voltage, over-current and power conditions.

After the fault clears, automatic recovery restores the output following the selected delay. Settings are retained in non-volatile memory. The YC6VA is suitable for residential, commercial and industrial single-phase distribution systems, including the AC side of compatible solar and backup-power installations. Installation and parameter selection should be performed by a qualified electrician.

Key Features

• Adjustable over-voltage protection

• Adjustable under-voltage protection

• Adjustable over-current protection

• Automatic recovery and reconnection

• Separate digital voltage and current displays

• Adjustable voltage/current protection action time

• Adjustable recovery and power-on delays

• Continuous over-current event-count setting

• Non-volatile parameter memory

• Front status LEDs and four setting buttons

• 1NO electromagnetic relay output

• Compact 35 mm DIN-rail mounting

Technical Specifications

Current Variant Reference

Confirm the rating printed on the actual supplied product before publishing a current-specific listing or selecting cable and upstream protection.

Applications

• Residential single-phase distribution boards

• Commercial and administrative buildings

• Industrial single-phase control panels

• Appliance and branch-circuit voltage supervision

• Solar inverter AC output/load-side distribution

• UPS and backup-power AC circuits

• Locations affected by mains over-voltage or under-voltage

• Circuits requiring adjustable over-current supervision

The YC6VA is an AC protection relay and is not specified for DC PV strings.

Box Contents

The official manufacturer page and manual do not provide a complete retail pack-list.

• CNC Electric YC6VA protection relay: product unit shown; boxed quantity Not Verified

• Printed instruction manual: Not Verified

• Additional accessories: Not Verified

Protection Features

• Over-voltage disconnection

• Under-voltage disconnection

• Over-current disconnection

• Automatic recovery/reconnection

• Adjustable voltage protection action time

• Adjustable over-current action time

• Adjustable recovery delay

• Adjustable power-on delay

• Selectable continuous over-current event count

Short-circuit interruption, surge suppression, residual-current/earth-leakage protection and arc-fault protection are not specified for this model and must not be assumed.

Certifications

• CE / Low Voltage Directive 2014/35/EU Attestation of Conformity

• Certificate model coverage includes YC6VA-40, YC6VA-63 and YC6VA-80

• Certificate referenced standard: EN 60898-1:2019+A1:2024

• Official YC6VA manual states product standard EN 60947-5-1:2004

• RoHS: Not Verified

• UL/TÜV product certification: Not Verified

Warranty

CNC's official policy states 24 months from the date of manufacture for other low-voltage apparatus. The manufacturer notes that the warranty period may change according to the signed customer contract. Local seller/importer terms should be confirmed before publication.
