JOCA 4mm² H1Z2Z2-K XLPO Solar DC Cable

Product Identification

Note: The technically correct material abbreviation is XLPO (cross-linked polyolefin), not “XPLO.”

Product Title

JOCA 4mm² H1Z2Z2-K XLPO Solar DC Cable

Short Description

JOCA 4mm² single-core photovoltaic cable is designed for 1500V DC solar installations. It uses a flexible Class 5 tinned-copper conductor with halogen-free, electron-beam cross-linked XLPO insulation and outer sheath. The cable is available in red and black and is specified for rooftop, ground-mounted and floating PV applications.

Long Description

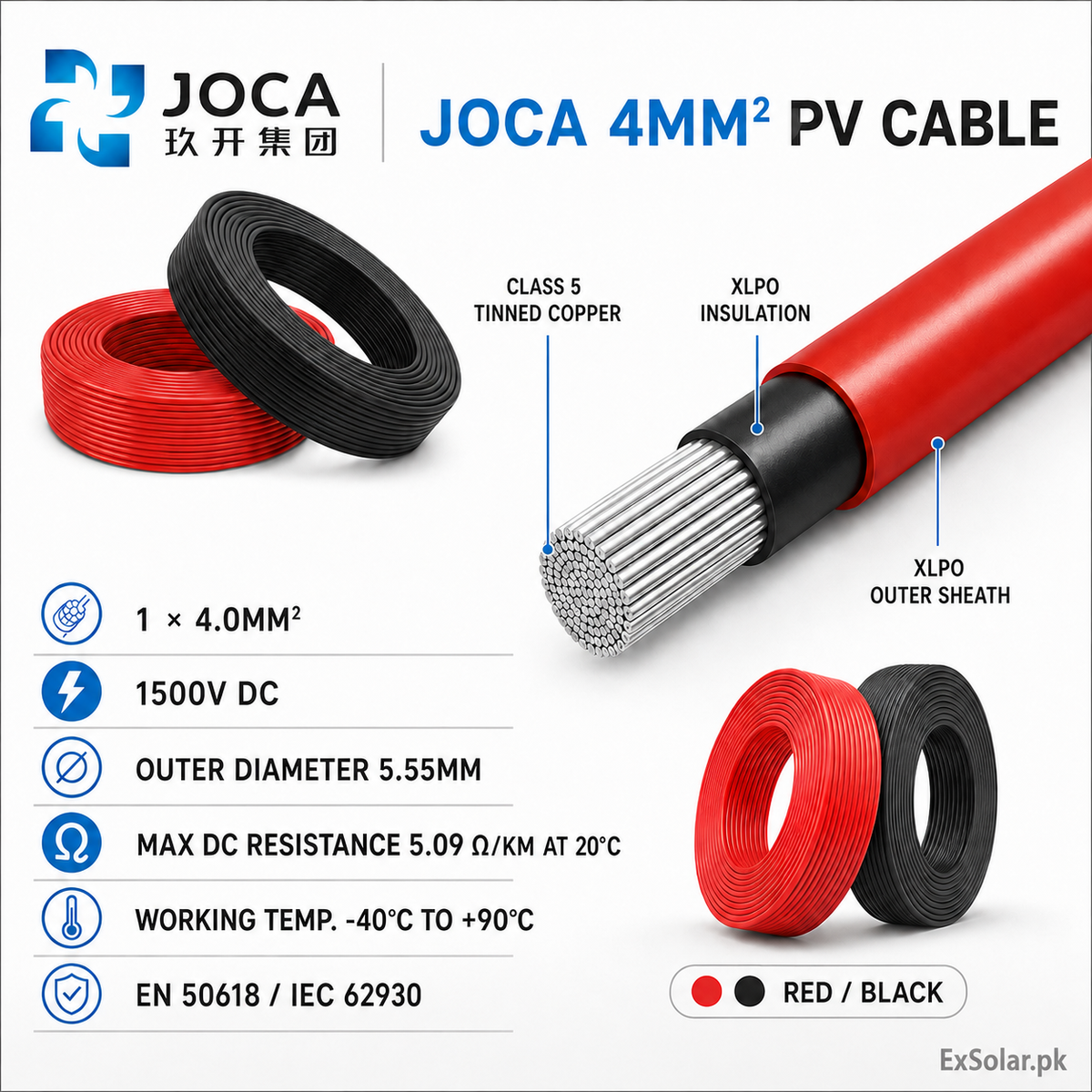

The JOCA 4mm² solar cable is a purpose-built photovoltaic conductor for dependable DC connections between solar modules, string equipment and inverters. Its 1 × 4.0mm² Class 5 tinned-copper conductor combines flexibility with corrosion resistance, while the double XLPO construction provides robust electrical insulation and environmental protection.

JOCA specifies this cable for up to 1500V DC and lists compliance with IEC 62930 and EN 50618. The manufacturer also publishes resistance to UV, ozone and hydrolysis, a working-temperature range of -40°C to +90°C, and an expected service life of at least 25 years. Red and black sheath options support clear DC polarity identification during professional solar installation.

Final cable sizing, ampacity, connector compatibility, routing and derating must be confirmed by a qualified solar installer according to the project design and applicable electrical codes.

Key Features

• 4mm² single-core photovoltaic cable

• H1Z2Z2-K solar-cable construction

• Rated for up to 1500V DC

• Flexible Class 5 tinned-copper conductor

• 56 × 0.28mm conductor-strand construction

• Halogen-free electron-beam cross-linked XLPO insulation

• Flame-retardant XLPO outer sheath

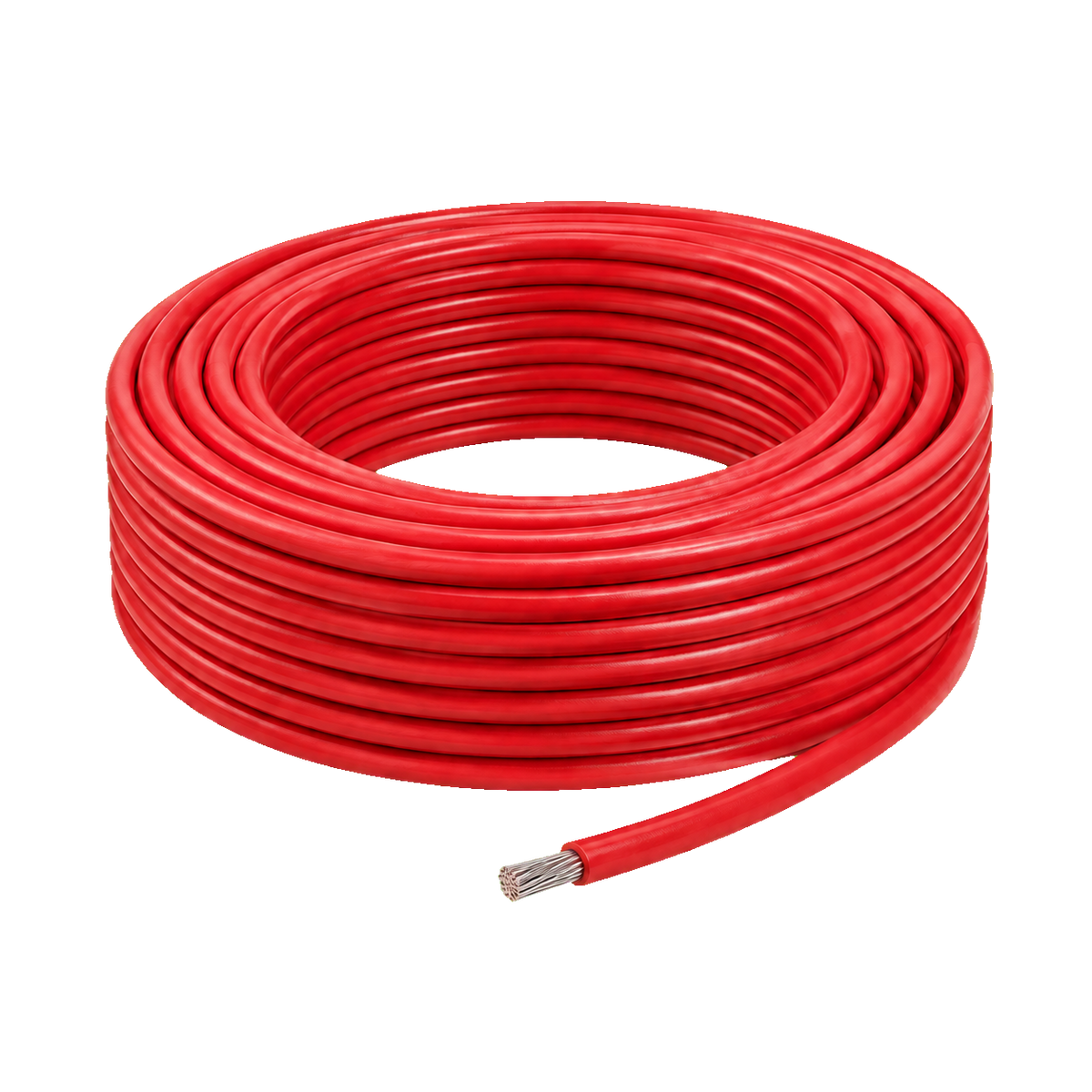

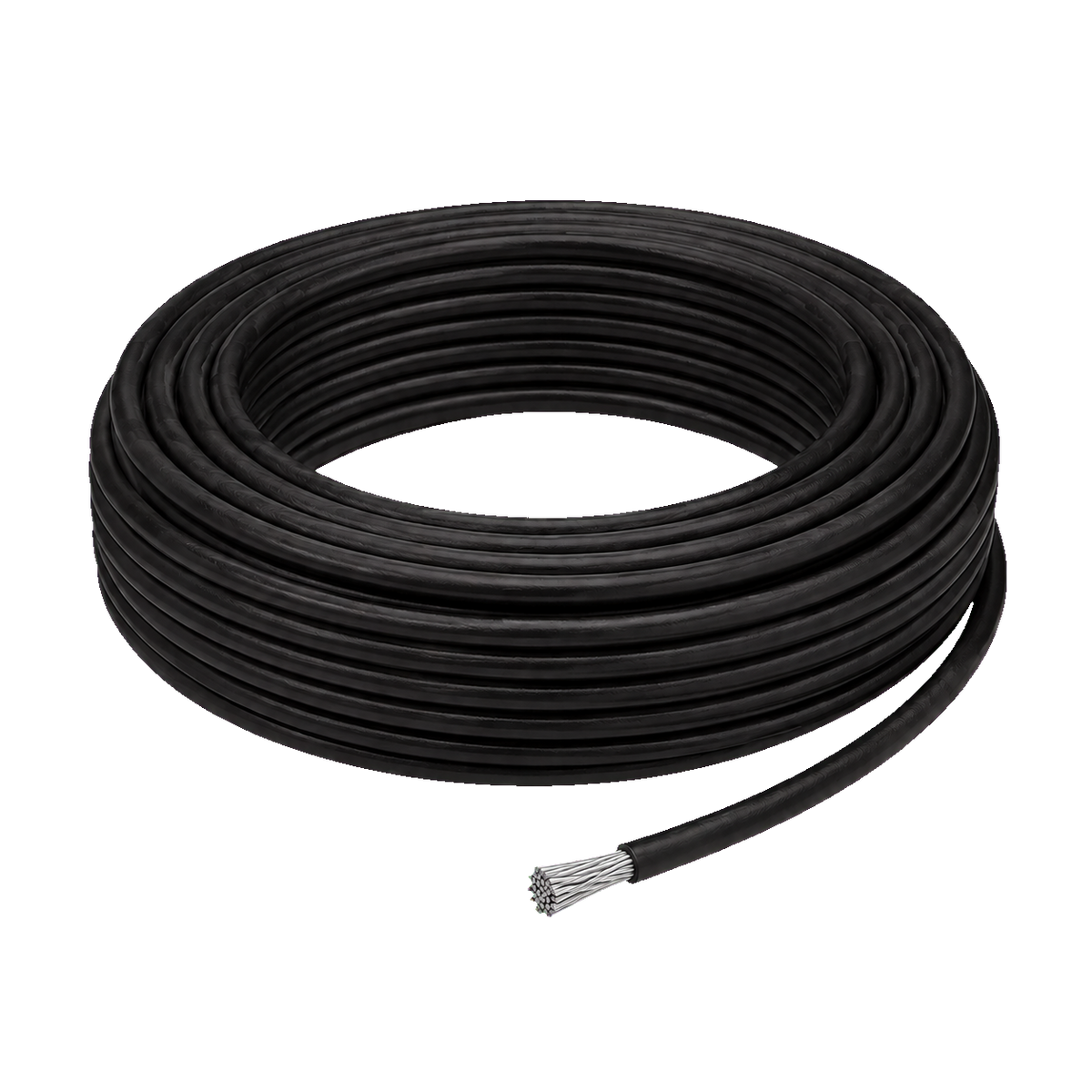

• Red and black sheath options

• UV, ozone and hydrolysis resistant

• Working-temperature range from -40°C to +90°C

• Compatible with commonly used solar connectors, subject to connector approval and correct crimping

• Designed for rooftop, ground-mounted and floating photovoltaic systems

Technical Specifications

Applications

• Residential rooftop photovoltaic systems

• Commercial solar installations

• Industrial photovoltaic plants

• Ground-mounted solar arrays

• Floating photovoltaic installations

• Solar-module interconnection

• String, combiner and inverter-side DC cabling, where approved by the system designer

Box Contents

• JOCA 4mm² solar cable in the selected red or black color

• Supplied length / roll size: Not Verified

• Connectors, lugs, tools and accessories: Not Verified / not stated as included

Protection Features

• UV resistance

• Ozone resistance

• Hydrolysis resistance

• Weather resistance

• Ad8 water performance

• Halogen-free insulation and sheath

• Flame-retardant outer-sheath compound

• Low-smoke / halogen-performance standards listed by the manufacturer

• High- and low-temperature performance

Certifications and Standards

• IEC 62930

• EN 50618

• EN / IEC 60228 Class 5 conductor

• TÜV

• CE

• RoHS

• UL (listed by manufacturer)

• EN 60332-1-2

• EN 50575 CPR Cca

• IEC / EN 60754-2

• Ad8 water performance

Warranty

Not Verified. JOCA publishes an expected service life of at least 25 years, but an official commercial warranty term for the specific ExSolar.pk SKU was not verified. Expected service life must not be presented as a warranty.
